Use

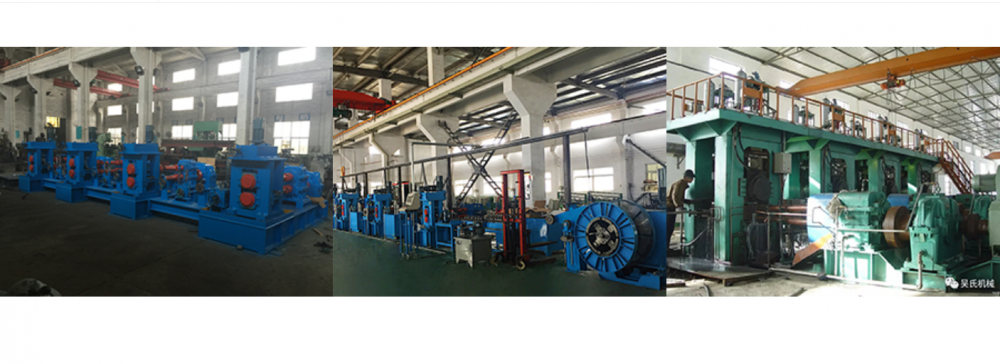

This series of units adopts two- or four-high rolling mills. It is suitable for rolling carbon steel, alloy steel and non-ferrous metal raw materials of wire, wire rod and strip, with the characteristics of large production volume, high yield and small unit energy consumption.
Equipment composition
The model is composed of host, discharge frame, touch welding machine (optional), feeding polishing machine (optional), import and export straightening device, tension control device, testing table (thickness and width measurement), collection equipment, electronic control system and other parts.
Technical parameters
|
Mill type |
Two-roll four-to-one rolling |
Hole type four consecutive hot rolling (One flat and three holes) |
Two-roll and four-roll triple rolling |
Four rolls and five consecutive rolls |
|
Roll size (mm) |
Φ260×200 |
Φ350×350 (Flat mill) Φ350×300 (Hole mill) |
Φ300×500 Ф250×500 Ф150/Ф400×400 |
Ф175/Ф450×480 Ф140/Ф450×480 |
|
Rolling raw materials |
Carbon steel round wood |
Stainless steel bars |
Copper alloy strip |
Carbon steel strip |
|
Feed Specification(mm) |
Ø18 |
Ø20~Ø50 |
6×350 |
2.5×410 |
|
Finished product specifications(mm) |
≥1.5 |
Profiles of various specifications |
≥0.8 |
≥0.5 |
|
Rolling speed(m/min) |
0~120 |
0~80 |
0~120 |
0~280 |
|
Main motor |
Permanent magnet motor |
DC motor |
DC motor |
DC motor |
|
reducer |
Hard tooth surface reducer |
Hard tooth surface reducer |
Hard tooth surface reducer |
Hard tooth surface reducer |
|
Pressed form |
electric |
electric |
electric |
AGC cylinder pressed down |
|
Collection equipment (optional) |
Precision cable I-wheel winding machine |
Hydraulic shears |
Manual rewinder Hydraulic contractor winder |
Hydraulic contractor winder |
|
Introduction to electronic control functions |
Automatic precision cable arrangement Constant tension control Volume diameter calculation |
Constant tension control Volume diameter calculation |
Constant tension control Volume diameter calculation |
Constant tension control Volume diameter calculation |
Concentrate:
(1) This table model and parameters are for reference, and can be designed and produced according to user requirements.
