Product description
Ductile iron pipe is a kind of pipe material with high strength, corrosion resistance and wear resistance. Because of its excellent performance and reliability, it is widely used in urban water supply, drainage, gas, heat and other fields.
Ductile iron pipe manufacturing process is to cast iron pipe at high temperature after spheroidization treatment, so that the surface of the formation of spherical graphite, so as to improve its strength and toughness. The inner wall of nodular cast iron pipe is smooth, not easy to scale, will not affect the water quality, and has high corrosion resistance and wear resistance, long service life.
The connection mode of ductile iron pipe has two kinds: rubber sealing ring connection and flange connection. Rubber sealing ring connection is suitable for general water supply and drainage system, flange connection is suitable for high pressure, high temperature, chemical industry and other special environment.
In short, ductile iron pipe is a kind of excellent pipe, with high strength, corrosion resistance, wear resistance and other advantages, so it is widely used in industrial and civil fields.
1
Standard:
ISO2531, EN545, EN598, etc
2

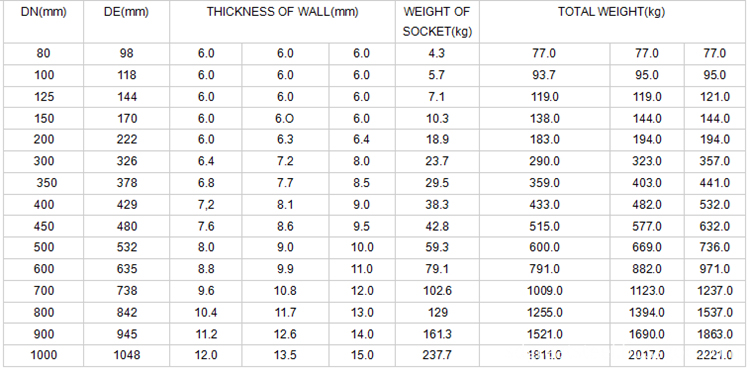

Size:
DN80~2600mm
3
Material:
Ductile Cast Iron GGG50
4
Pressure:
PN10, PN16, PN25,PN40
5
Class:
K9, K8, C25, C30, C40
6
Length:
6m, cut to 5.7m
7
Application:
Water supply project, drainage, sewage, irrigation, water pipeline.
8
Certificate:
ISO9001, CE, WRAS, BSI
9
Internal Coating:
a). Portland cement mortar lining
b). Sulphate Resistant cement mortar lining
c). High-Aluminum cement mortar lining
d). Fusion bonded epoxy coating
e). Liquid epoxy painting
f). Black bitumen painting
10
External Coating:
a). zinc+bitumen(70microns) painting
b). Fusion bonded epoxy coating
c). Zinc-aluminum alloy+liquid epoxy painting
11
Packing:
Bundles, in bulk

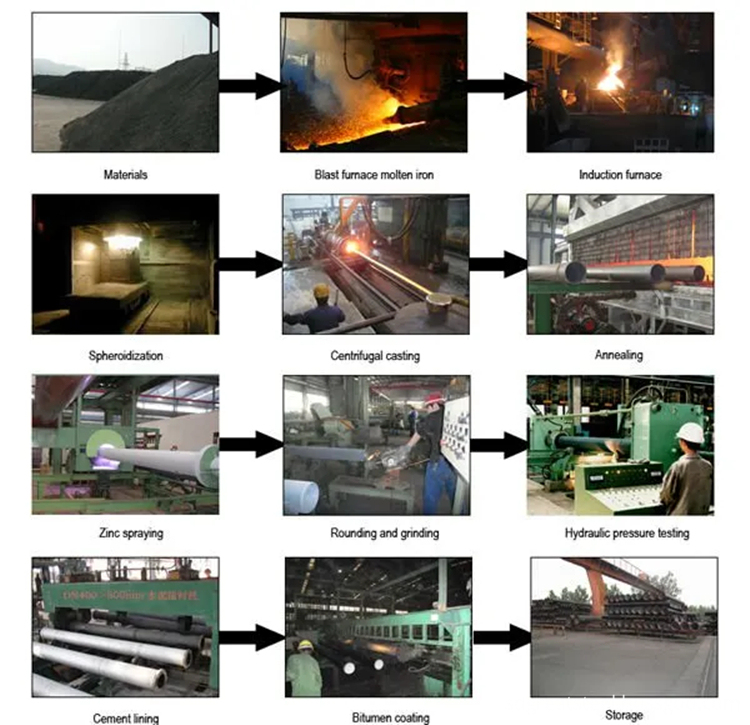

Production Flow
1. Raw material preparation: The main raw materials of nodular cast iron pipe are cast iron blank and spheroidizing agent. The cast iron blank requires stable composition, carbon content between 2.7% and 3.8%, silicon, manganese and other elements content within a certain range. Spheroidizing agent is an alloy containing rare earth elements used for graphite in spheroidized cast iron.
2. Smelting: cast iron blank and spheroidizing agent are put into the furnace for smelting. The melting temperature is about 1400℃, and the graphite in cast iron is kept for a certain time.
3, casting: the molten cast iron liquid through the gate into the mold, forming the shape of ductile iron pipe.
4, cooling: ductile iron pipe forming, placed on the cooling platform natural cooling. During the cooling process, nodular cast iron pipe gradually solidifies and shrinks.
5. Shot peening cleaning: there will be a layer of oxide skin on the surface of nodular cast iron pipe after cooling, which needs to be removed by shot peening.
6. Dressing: Surface dressing and cleaning of nodular cast iron pipe to ensure compliance with specification requirements.
7, inspection: strict inspection of ductile iron pipe, including appearance, size, chemical composition, mechanical properties and other aspects of the inspection.
8, packaging: qualified ductile iron pipe should be packed, transported and used
FAQ
Q: Can I get a sample before I order?
A: Yes, of course. Usually our samples are free and we can produce according to your sample or technical drawing.
Q: Can I visit your factory?
A: Of course. We welcome customers from all over the world to visit our factories.
Q: How can I get your offer?
A: You can leave us a message, and we'll respond to every message in a timely manner. Or we can talk online.
Q: What product information do I need to provide?
A: You need to provide the brand, width, thickness, coating and tons you need to purchase.
Q: Are the products inspected before shipment?
A: Of course. All our products go through strict quality inspection before they are packed. Those that fail will be destroyed. We absolutely accept third party inspection.
