Product details

Printing Press Offset Varnishing Foil Stamping Servo Driven Screen Printing Machine

Multi-Functional Printing Press Features:

1. With rich experience in this industry and independent R&D control algorithm, successfully manufacture full servo automatic screen printing and hot stamping all in one machine.
2. To save more resources for customers while improving production efficiency, higher speed, accurate overprint and stable operation, convenient debugging.
3. High precision guide rail and servo control system to improve the product's printing & hot stamping precision and effect.
4. Combined screen printing and hot stamping functions, greatly reducing the workload of the operator, shorter debugging time, more relaxed work.

Application:

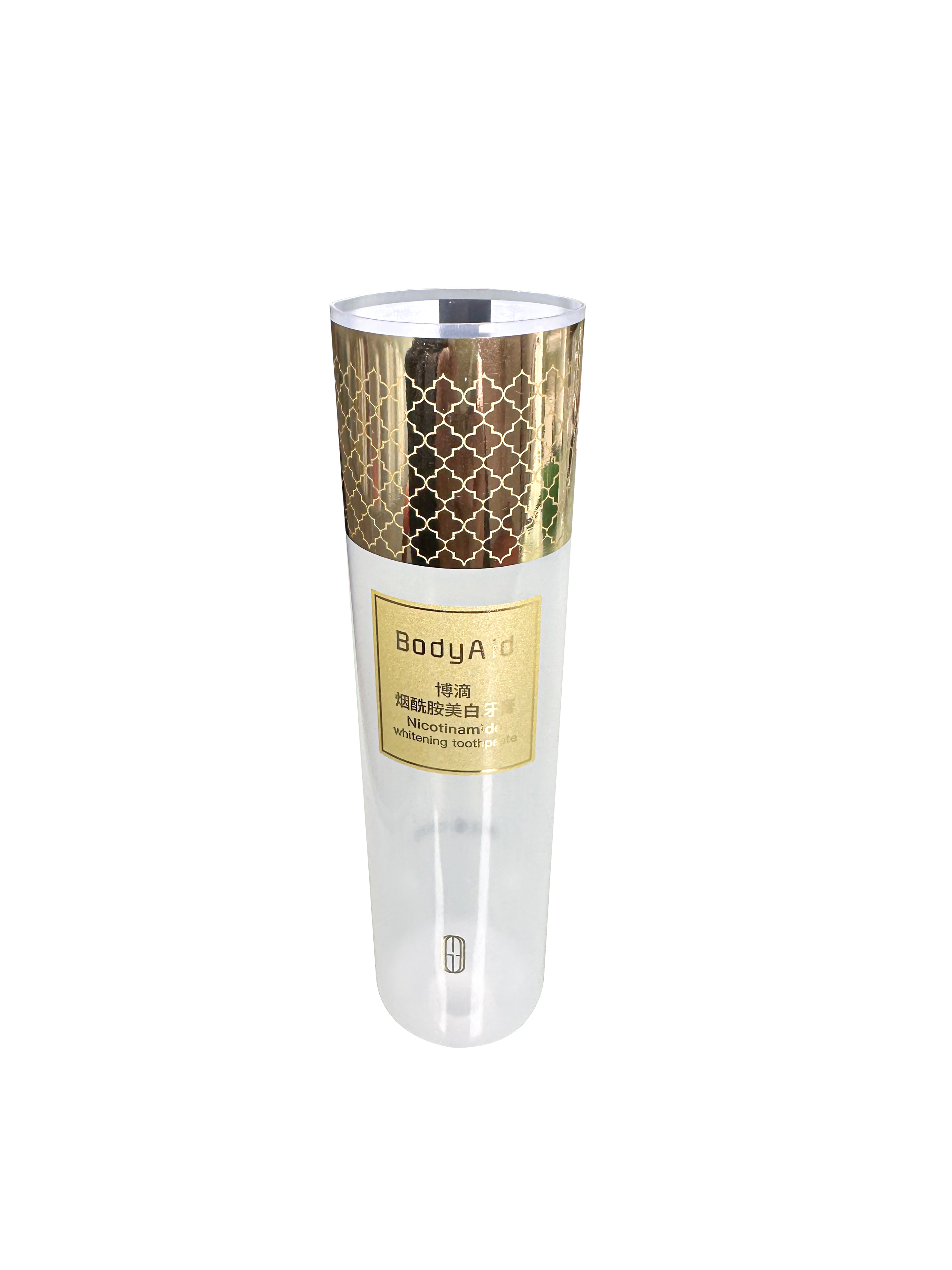

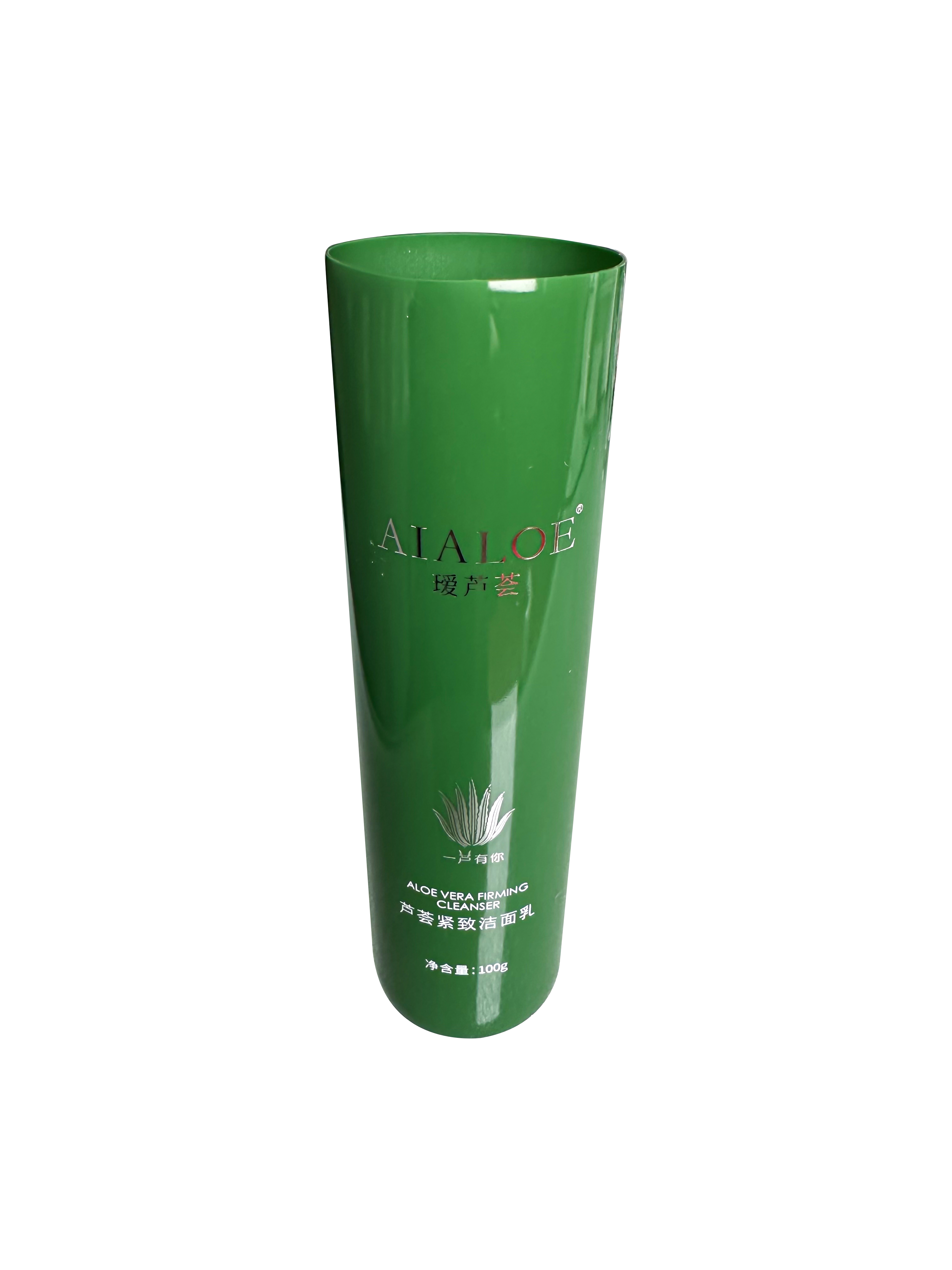

The decoration machine is suitable for screen print 1 color UV ink + 1 hot stamping + offset print 1 color varnish on plastic soft tubes.

Main Functions:

Batch storage tubes, automatic material unscrambling, select the direction of feeding (optional).
Servo-driven manipulator push tube feeding.
10 servo stations: Feeding and dust-removal → 1 st flame (or corona) treatment → 2 nd flame (or corona) treatment → 1 st screen printing → UV curing → 2 nd hot stamping → UV curing → 3 rd offset print varnish→ UV Curing → OK products discharging
After feeding, there is a cursor to identify the failure of feeding and the function of no printing without parts.
The printing workstation has the function of electric lifting print head.
The servo synchronously drives the left and right movement of the screen frame and the rotation of the tube on the turntable, and cooperates with the scraper to complete the printing function.

- Machine Model ： SRS1036

- Work Station ： 10

- Printing Speed ： Up to 80pcs/min

- Soft Tube Diameter ： 15–75mm

- Soft Tube Height ： 60–220mm

- Max Printing Length ： 220mm

- Max Printing Height ： 180mm

- Printing Accuracy ： ±0.1mm
