Nail art pad printing machine

5 day ago

4 0

KC Printing Machine (Group) Limited

 9 year year

Product details

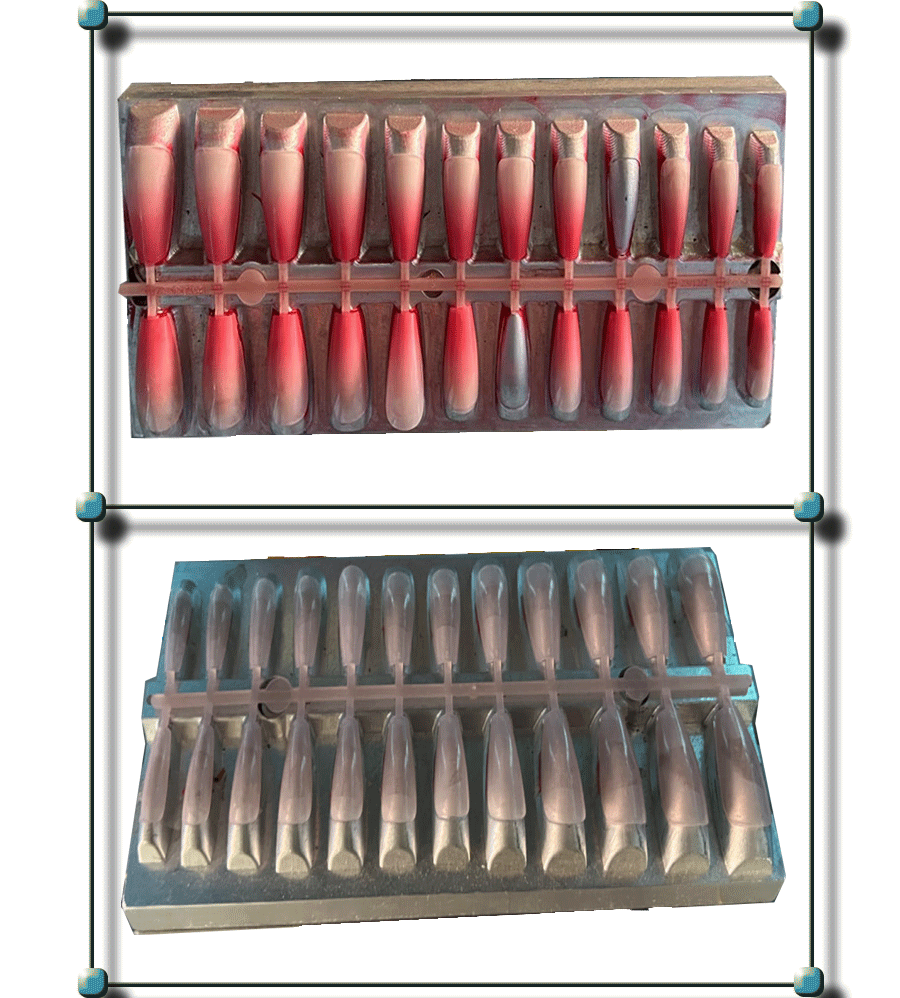

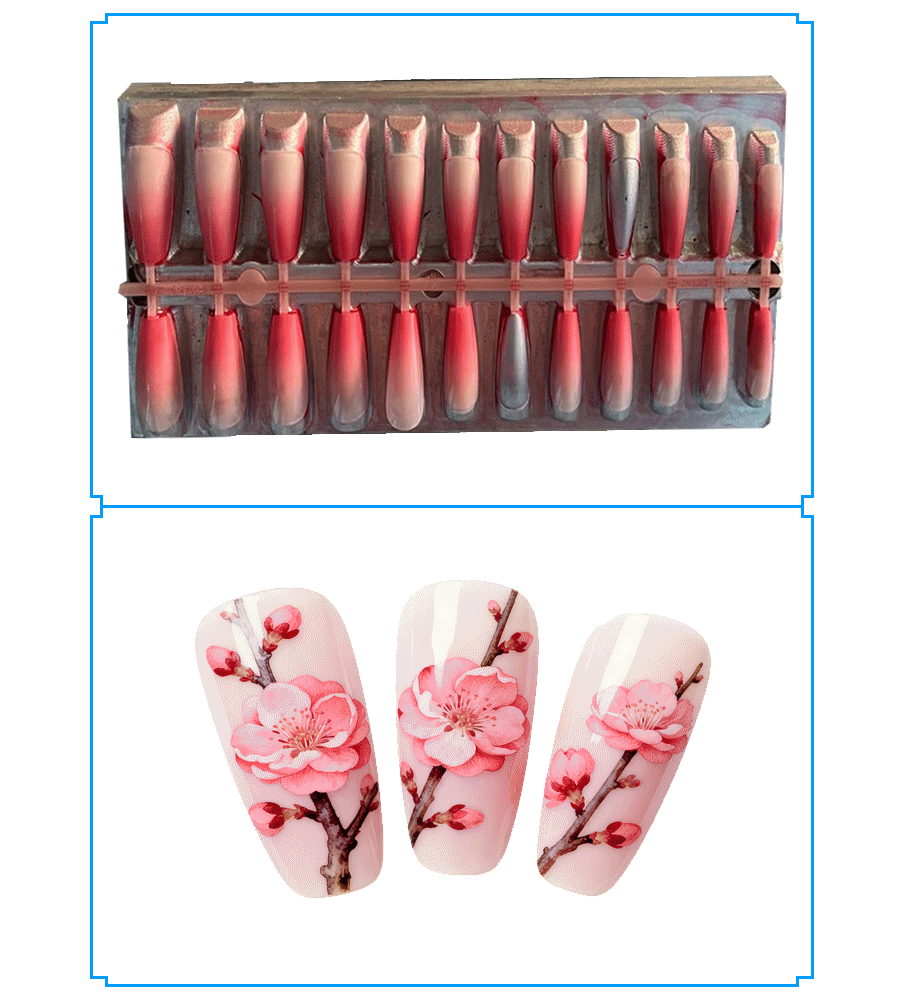

Fake nails Single color servo pad printer

Nails are the peripheral of a woman's expression. Several beautiful women in ancient civilizations like to use a variety of pigments to paint nails to distinguish their aristocratic identity. Today, nails have become the fashion trend of ordinary women to show charm. In view of the damage to the nails itself, it is rarely used in modern times. It is replaced by wearing pseudo -nails. Pseudoma can be decorated with pigments or decorative by transplanting. Fake nails are made of plastic products with similar nail shapes in injection molding. They can be adhered to the nails to beautify and not harm the nails itself. In stage performances, the wearing of fake nails will also play a role in simulating animal image and shaping the image of special characters.
Although the fake nails are small, the shape is complicated. In the visible report, the pad printing machine is the only mechanical that can be directly printed. It uses a soft and deformable printing pad to achieve anastomical printing on the surface of the false nail. The pad printer is controlled by a servo motor. The pressure and strokes of pad printing can be accurately set and controlled. The pad printer uses PLC and touch screen operations, which is easy to achieve data -based parameter management.

P1-420CPSC One color pad printer with lateral movement cup //Structure
Working table	Standard working table with 3-size adjustment
Ink supply system	Closed -type system
Plate type and size	0.3mm Thin steel plate. Size ：100*500mm.
Pad dropping control	Simple-cylinder , simultaneously pressing
P1-420CPSC One color pad printer//Usage and characters
Guide	Transverse movement pattern using the sealed cup, the plate can be placed even greater, larger print area; With sealed cup to protect environment ， VOC volatilization reduced 86% and save ink over 25%. With coin aluminum structure ensure more stabilization and long life. Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate; Both thick steel plates and thin steel plates installed , Choose according to customer requirements. Can print almost small size objects . So sold very nice in the world. Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations. Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
Application fields	Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
P1-420CPSC One color pad printer //Parameter
Technical parameters	Max. steel plate: 100 ×500mm； Ink cup size: Ф90mm； Max. printing area :50×380 mm ； Printable color quantity:1； Max. printing speed: 1000 pcs/h; Table size: 165*500mm
Works supply	110V-220VPower supply； 5-7Bar Compress air；
Package list	Package size:1.270×0.570×1.470m; Gross weight: 176Kg; CBM: 1.064133
H.S.Code	8443198000
Certicate	CE

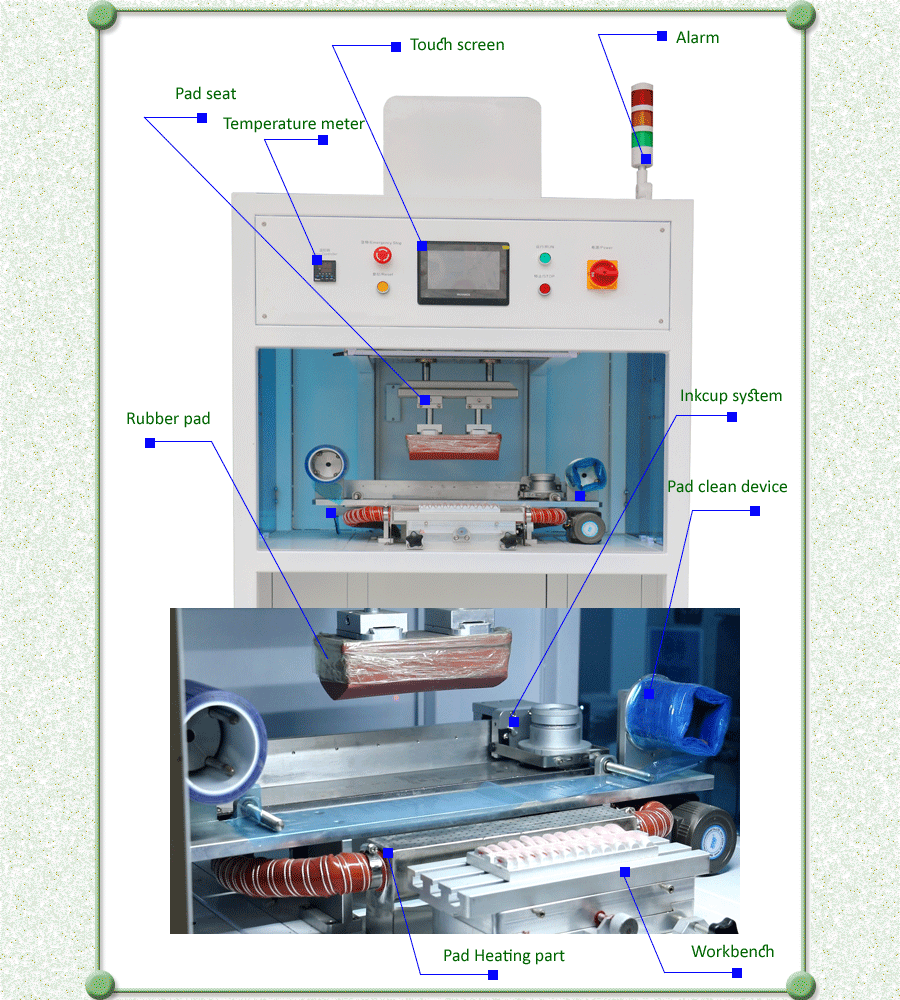

Machine structure-Advantage

Sealed cup move from right to left and fit for printing long objects;
Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
T-slot structure, easy installation of fixtures and products;
Hand pick and place workpiece, operating more handy;
Microcomputer program control, the movement is more accurate and reliable;
Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
Equipped with four counters, can effectively measure the number of products;
Structure using die-casting aluminum, lightweight and solid.
Independent Rubber pad up and down stroke and speed adjustment function;
Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel;
Sealed cup glide independent driving cylinder Blade pressure and Ink Removing Completely;
Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace;
Temporary shutdown can prevent the ink to dry within the Sealed cup with INK function;
World famous pneumatic components to ensure the long service life of machine;
Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.

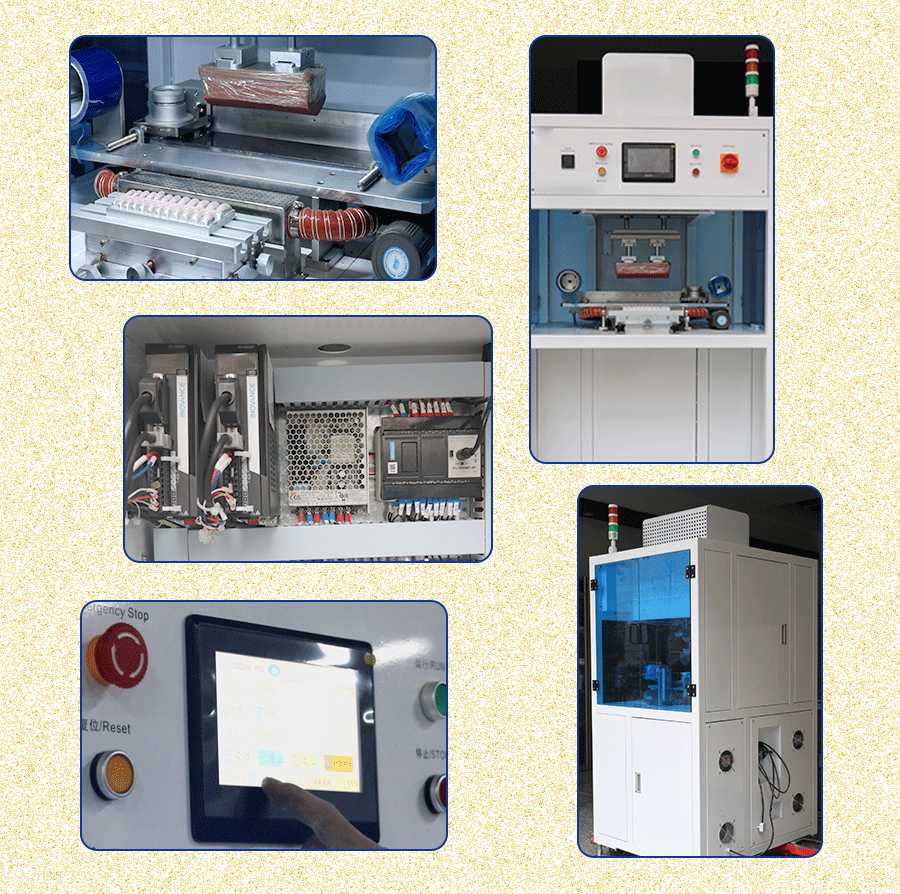

Machine details
