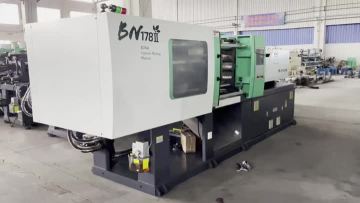

BN178N CUSTOMIZED PLASTIC INJECTION MACHIE
| NINGBO BONA MACHINERY CO.,LTD. | |||||
|
|
|
|
|
|
|
| ITEM |
|
UNIT | BN178N | ||
| Injection Unit | Screw Diameter | mm | 40 | 45 | 50 |
| Screw L/D Ratio | L/D | 23.2 | 20.3 | 22.7 | |
| Injection Volume | cm3 | 193 | 215 | 250 | |
| Shot Weight | g | 176 | 196 | 226 | |
| Injection Pressure | Mpa | 218 | 197 | 170 | |
| Clamping Unit | Clamping Force | KN | 1780 | ||
| Opening Stroke | mm | 430 | |||
| Mould Thickness(Min-Max) | mm | 180-520 | |||
| Space Between Tie-Bars | mm | 465X465 | |||
| Ejector Force | KN | 45 | |||
| Ejector Stroke | mm | 140 | |||
| General | Motor Power | KW | 18.5/22 | ||
| Heater Power | KW | 10 | |||
| Pump Pressure | Mpa | 17.5 | |||
| Machine Dimension | m | 5.1x1.35x2.15 | |||
| Machine Weight | T | 5 | |||
| Mould Orientation Ring Diameter | mm | Φ125 | |||
| Nozzle Radius | mm |
SR9 |
|||
BONA N Series Hydraulic Injection Molding Machine With Faster Injection And Plasticizing Speed, More Stable And Higher Efficiency.(We Can help Customer To Produce The Machines Under Their Drawings
