Product details


V580DK3-KD3 is a 58 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 58 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Rev.J1_Ver2.0 which was released out on 7 24 2015, V580DK3-KD3 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1270.08(W)×721.44(H) mm, outline size of 1298(W)×750(H)×48.9(D) mm, viewing area size of 1273.8(W)×725.8(H) mm, with surface treament of Hard coating (3H), Reflection 1.8% (Typ.), net weight of 10.8±0.5 Kgs. As a Super MVA, Normally Black, Transmissive LCM product, V580DK3-KD3 can provides 800 cd/m² display brightness 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 7.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 96% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 30K hours, external backlight driver is additionally needed. V580DK3-KD3 utilizes V-by-One 16 lane as it's signal inputting systerm, which connected by 97 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 120Hz.


We are able to offer AD board for this display to support VGA video input


Panel Model

V580DK3-KD3

Panel Brand

Innolux

Panel Size

58"

Panel Type

a-Si TFT-LCD, LCM

Resolution

3840(RGB)×2160 , UHD

Pixel Format

RGB Vertical Stripe

Display Area

1270.08(W)×721.44(H) mm

Bezel Opening

1273.8(W)×725.8(H) mm

Outline Size

1298(W)×750(H) ×48.9(D) mm

Surface

Hard coating (3H), Reflection 1.8% (Typ.)

Brightness

800 cd/m² (Typ.)

Contrast Ratio

3000:1 (Typ.) (TM)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Display Mode

Super MVA, Normally Black, Transmissive

Best View on

Symmetry

Response Time

7.5 (Typ.)(G to G)

Display Colors

1.07B   96% DCI-P3

Lamp Type

WLED , 30K hours , Without Driver

Frequency

120Hz

Touch Screen

Without

Panel Weight

10.8±0.5 Kgs

Signal Interface

V-by-One 16 lane , 97 pins Connector

Input Voltage

12.0V (Typ.)

Environment

Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

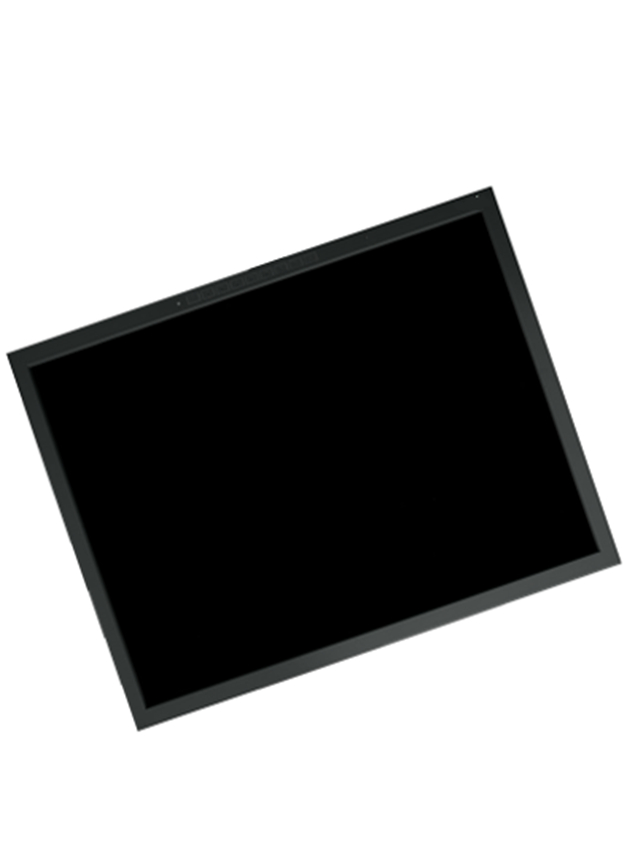

Product Picture:

V580DK3-KD3
