Product details



Innolux Corporation (hereafter called Innolux) G150XNE-L03 is a 15.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 15.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver3.0 which was released out on 3 7 2017, G150XNE-L03 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×9.6(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 0.96/1.00Kgs (Typ./Max.). As a NPVA, Normally Black, Transmissive LCM product, G150XNE-L03 can provides 300 cd/m² display brightness 2000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. G150XNE-L03 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.



We are able to offer AD board for this display to support VGA video input


Model Name

G150XNE-L03

Manufacturer

Innolux

Screen Size

15.0 inch

Pixel Number

1024(RGB)×768   (XGA)

Active Area(mm)

304.128 × 228.096 (H×V)

Bezel Area(mm)

307.4 × 231.3 (H×V)

Luminance

300 (Typ.)(cd/m²)

Viewing Angle

88/88/88/88 (Typ.)(CR≥10)

Good View at

Symmetry

Color Depth

262K/16.7M   72% NTSC

Mass

0.96/1.00Kgs (Typ./Max.)

Refresh Rate

60Hz

Screen Type

LCM ,   a-Si TFT-LCD

Arrangement

RGB Vertical Stripe

Outline(mm)

326.5 × 253.5 × 9.6 (H×V×D)

Treatment

Antiglare, Hard coating (3H)

Contrast Ratio

2000 : 1 (Typ.) (TM)

Work Mode

NPVA, Normally Black, Transmissive

Response

16/7 (Typ.)(Tr/Td) ms

Backlight

WLED , 70K hours , With LED Driver

Touchscreen

Without

Signal Type

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -30 ~ 70 °C    Operating Temp.: -20 ~ 70 °C

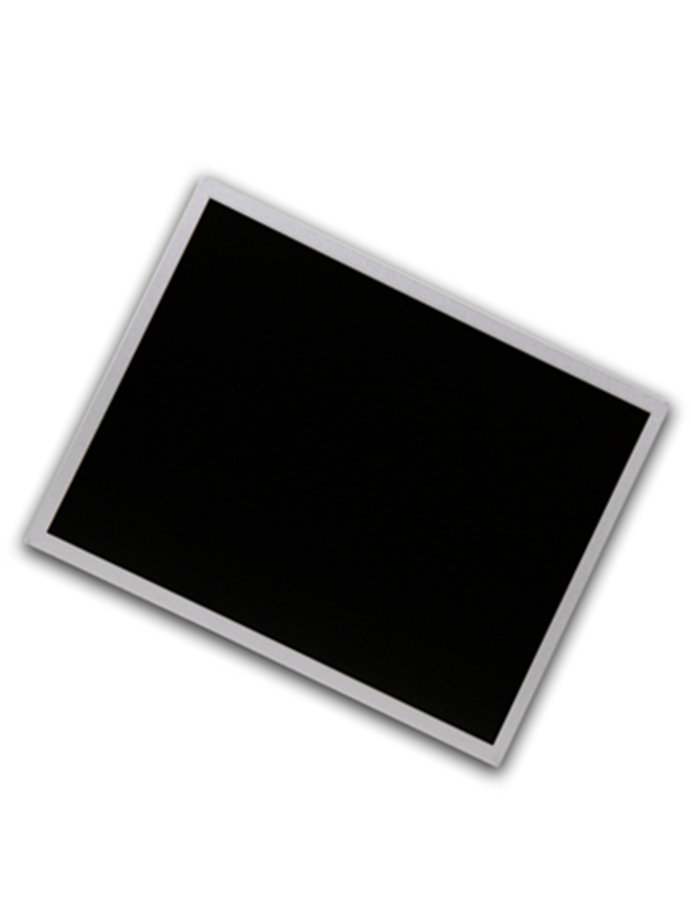

Product Picture:

G150XNE-L03
