This Intergrated Led Emergency Modules is a conversion kit remote box for operating 3-70W LED luminaires in emergency mode. The conversion kit is suitable for converting existing light fittings to emergency operation. Design with 3.7V Lithium ion 18650 battery. It's emergency output is 4.5W different from the Full Power Emergency Battery Pack which has 100% full emergency LED power.
MAIN FEATUERS
l Use 3.7V lithium ion 18650 battery 2600mAh full wattage
l Safety and stability: In case of hazardous events, such as collision or short-circuiting,
l Match wide range of led lamp from 3w to 70w, Emergency time 2 hours
l Deep discharge protection, IC control Prevent overcharging and over discharging
l Light weight and intergrade design.
l Easy install and maintain
PARAMETERS
|
Input Voltage |
85-265V 50/60HZ |
Battery Type |
3.7V lithium ion 18650 2600mAh |
|
Match Light Source |
3-70W LED LAMP |
Dimension |
150*58*23mm |
|
Emergency Output Power |
3W |
Protection Grade |
IP20 |
|
Emergency Conversion Time |
<5S |
Charging time |
24hours |
|
Working Temperature |
-10~50°C |
Emergency time |
180mins |
|
Material |
Aluminum Alloy |
Warranty |
2 years |

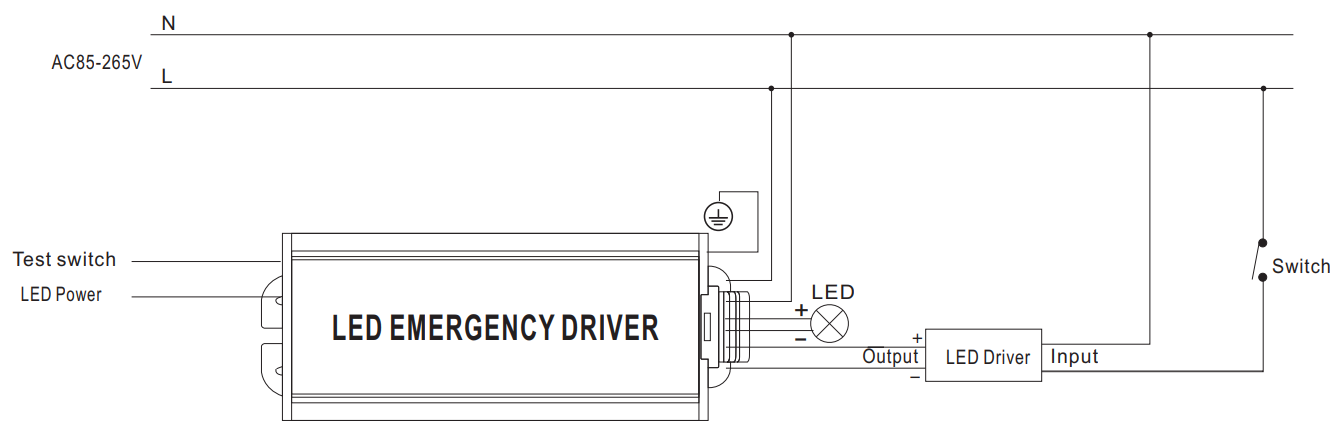

SCHEMATIC WIRING DIAGRAM FOR THIS LED PANEL LAMP EMERGENCY POWER SUPPLY
In contrast to LED drivers, the Led Emergency Drivers are used to transform a regular light into an unmaintained emergency light.
The power source for an LED is monitored and controlled by an LED emergency driver.
This driver powers the LED from the mains when the power is on and continues to recharge the battery that is built into it.
In the event that the primary sources fail for whatever reason, the LED emergency driver instantly switches the power supply to the battery and prevents the light from turning off.
INSTALLATION
Connecting method: Please find the WIRING DIAGRAM on the surface of Lamp Emergency Conversion Kit itself and Note: this should be operated by professional technical for your safety
Step1: Isolate mains power supply
Step2: According to our wiring diagram, connect the led emergency drivers to the led fixtures.
Step 3: Wiring off the building’s electricity network. Check all of the wiring set up well.
Step 4: Open the mains power, Lights on the LED lamp switch on/off to control lights. Check the emergency function, cut off the main supply, led lamp switch to emergency output immediately.
INDICATOR:
Green LED indicator is on that shows main power is on, when emergency function, green light is off;
WIDELY APPLICATION FOR LED PANEL OF OFFICE
