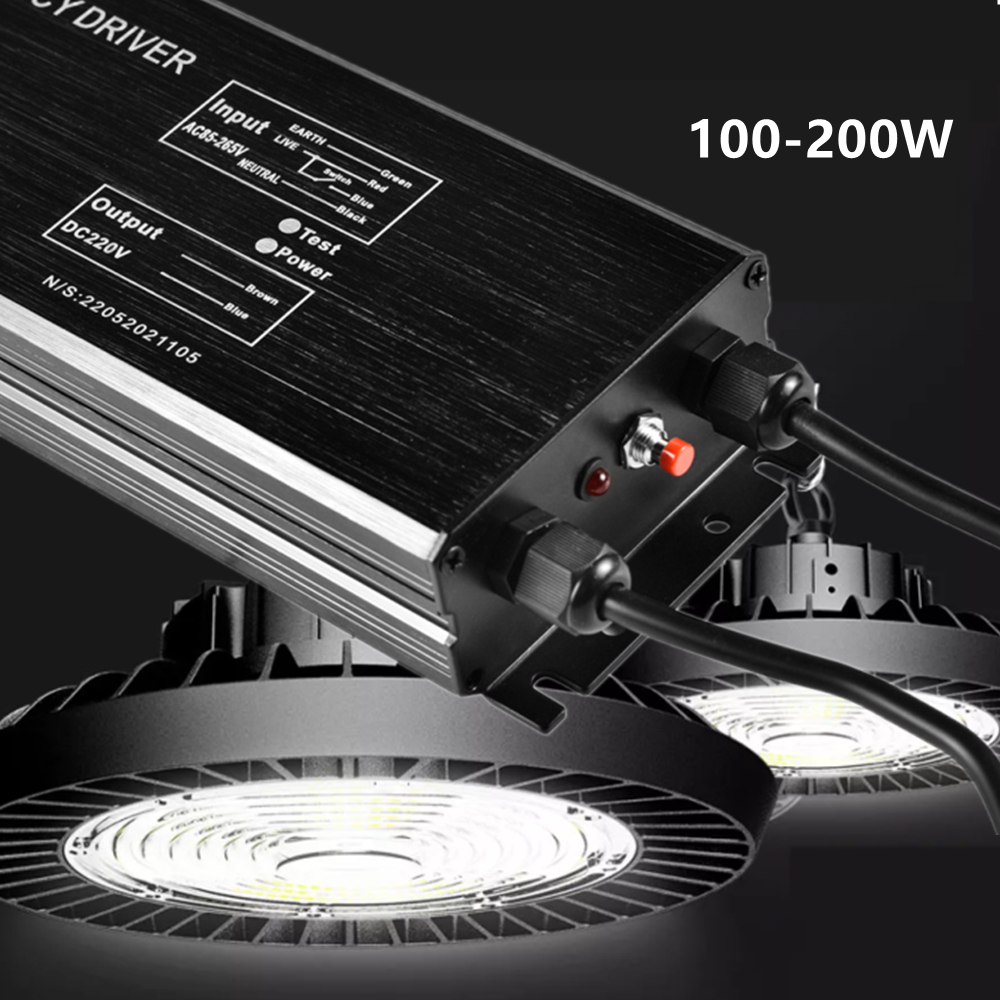

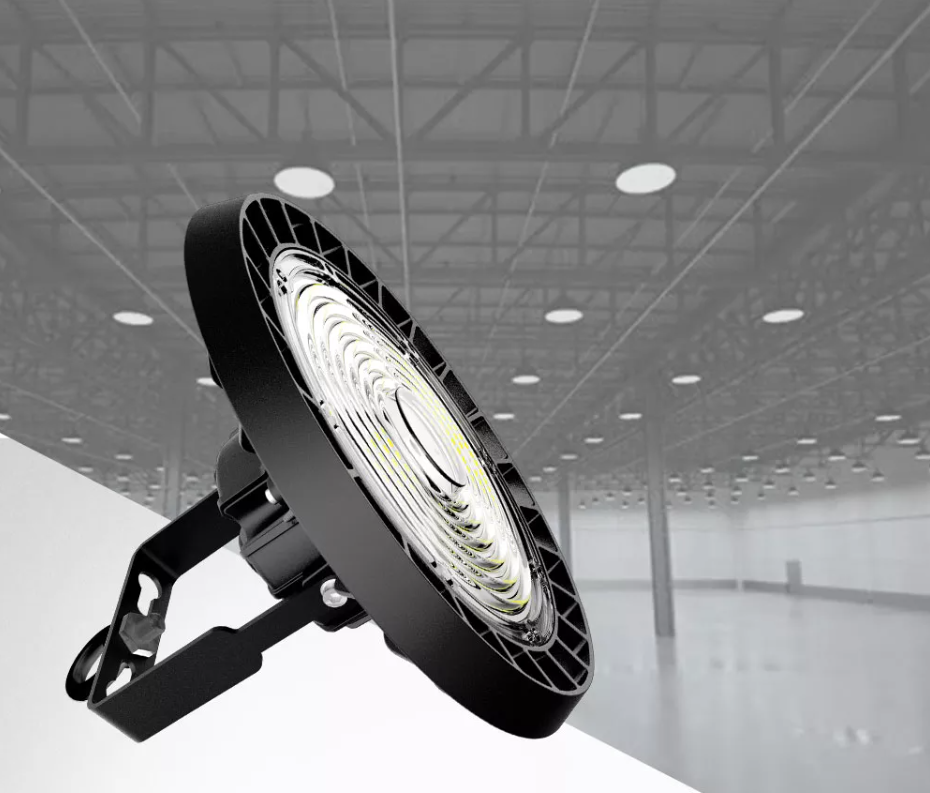

Emergency battery backup LED driver for 200W. Naips designed to provide backup power for high wattage LED lamps such as high bay lights, LED liners, and UFO lamps ranging from 50 to 220W. When the main power supply is interrupted, this driver will automatically switch to emergency mode, providing 100% output to the LED luminaire and maintaining an emergency time of 70-90 minutes. The maximum wattage that this driver can handle is 220W.
Feature:
● Match 50-220W LED lamp, Maximum 220W
● Aluminum Alloy Housing Size at 36.8*8.7*6.8cm
● Emergency Power: 100% Emergency Power Output
● Emergency time: 70-90mins
● AC input 85-265V, DC output: 220V
● Battery type: 19.2V/12000mAh LiFePO4
*IMPROVED Emergency kit
All our emergency products are being improved using lifepo4 lithium-ion batteries, considered the longest lasting and safest batteries available
What we support
Main Feature
|
Model: NA02-F300 |
|||
|
Input Voltage |
85-265V 50/60HZ |
Battery Type |
19.2V/12000mAh LiFePO4 |
|
Match Light Source |
50-220W LED LAMP |

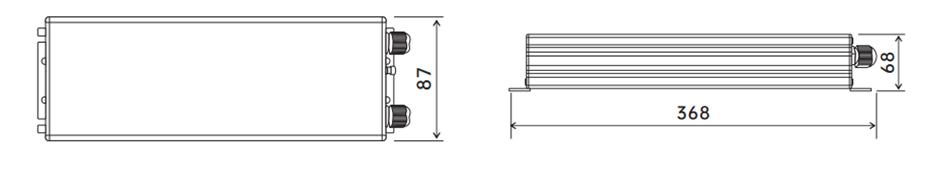

Dimension |
36.8*8.7*6.8cm |
|
Emergency Output Power |
50-220W |
Protection Grade |
IP20 |
|
Emergency Conversion Time |
<5S |
Charging time |
24hours |
|
Working Temperature |
-10~50°C |
Emergency time |
70-90mins |
|
Material |
Aluminum Alloy |
Warranty |
3 years |

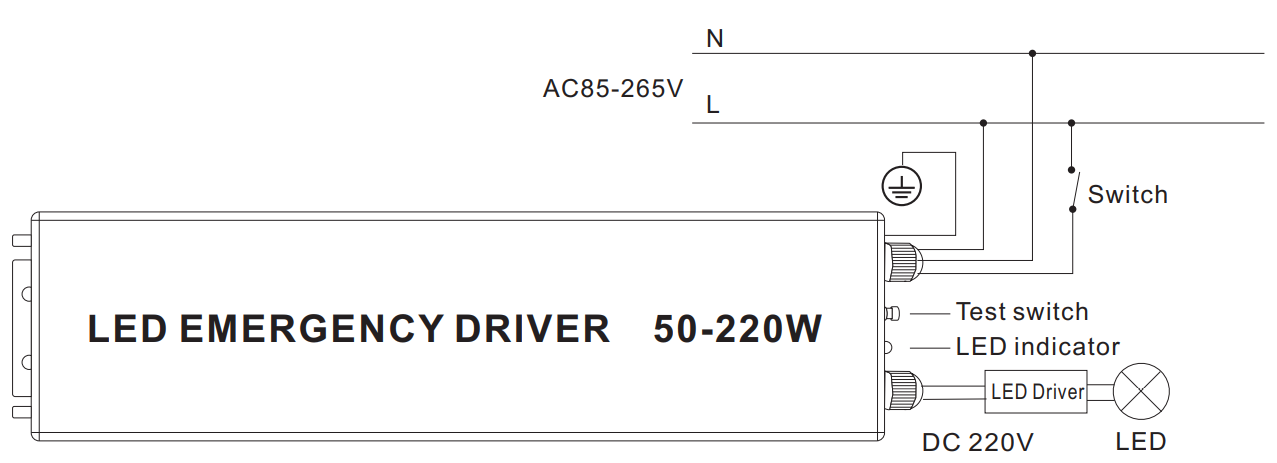

Wiring Diagram
Wide Application
FAQ:
1. What is the MOQ for the emergency power pack you supply?
1pc is available.
2. How about the delivery time?
For our led emergency product. The delivery time is base on your require QTY. Normally if our regular item, Lead time for 1-500pcs within 7days, 1000pcs above is within 15days.
3. Is it possible to improve the capacity of the battery so that I can last the long emergency time?
No. For this model as the shell contain size only can afford 19.2V 12000mAh battery.
4. What if it is more than one lamp when I use the emergency light module?
Yes, You can. But remember all of the wattage for the lamps muse less than the LED driver’s power support.
If you are interested in the product, contact 2bvideo.com for more information for more information
