X13 laser pipe cutting machine

3 year ago
23 0
Product details

Automatic high speed pipe cutting machine CTK-X13

1.This metal pipe laser cutter has high-speed 3D laser cutting capability, 1.5G acceleration, infinite rotation of the chuck 150rpm, high cutting, punching and grooving efficiency.

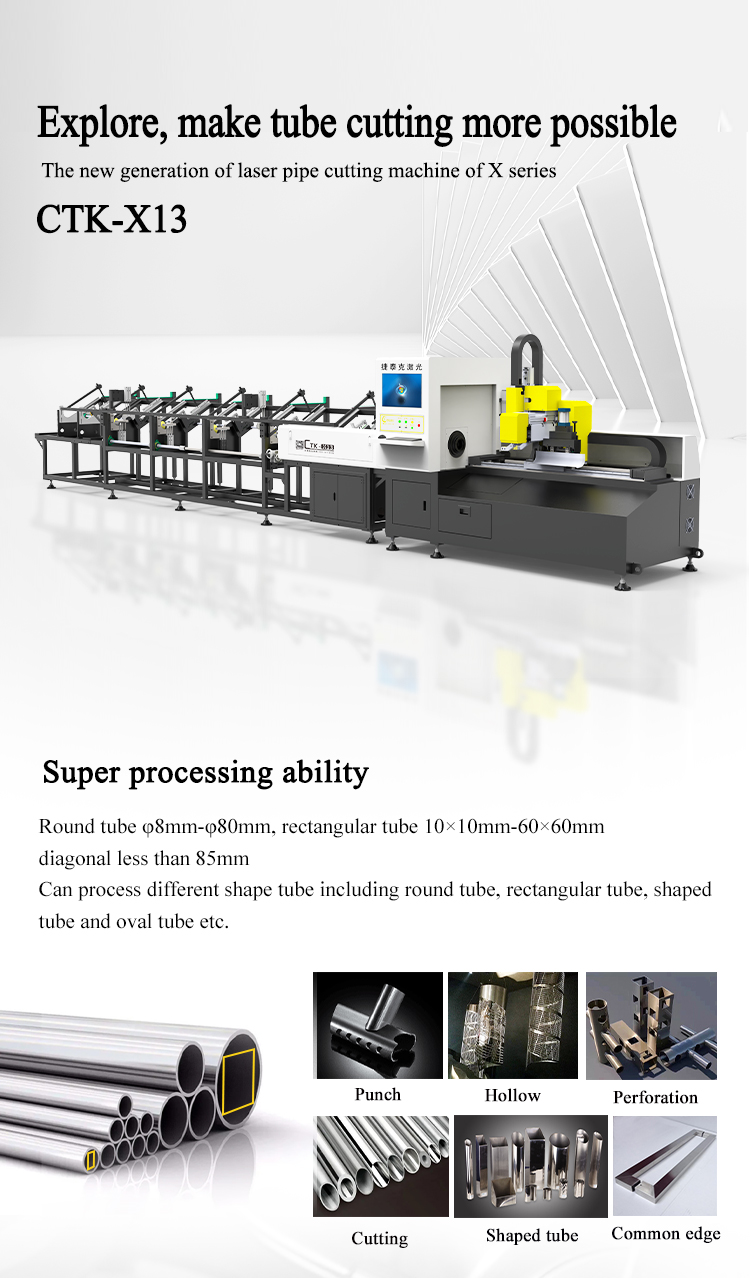

2. It can process the shape of round pipe, square pipe, rectangular pipe, oval pipe and so on.

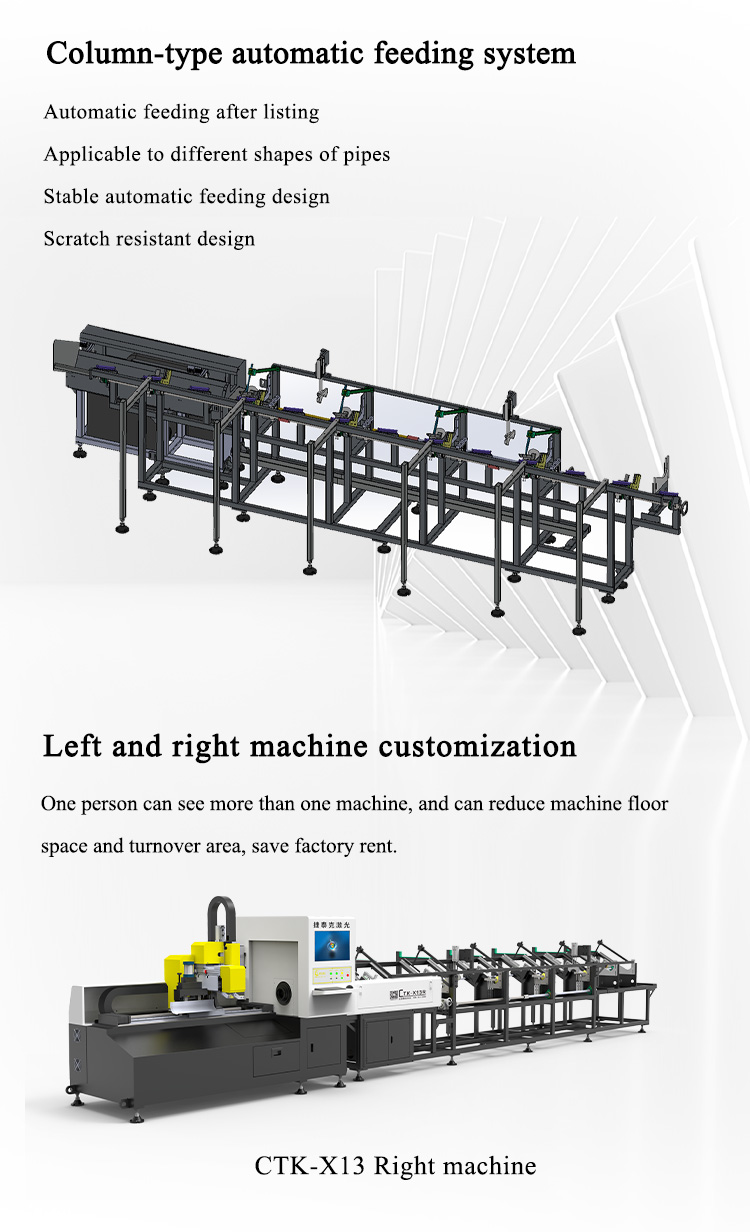

3. Column-type automatic feeding system, high-rigidity material rack design, fast material changing and feeding speed and good stability.

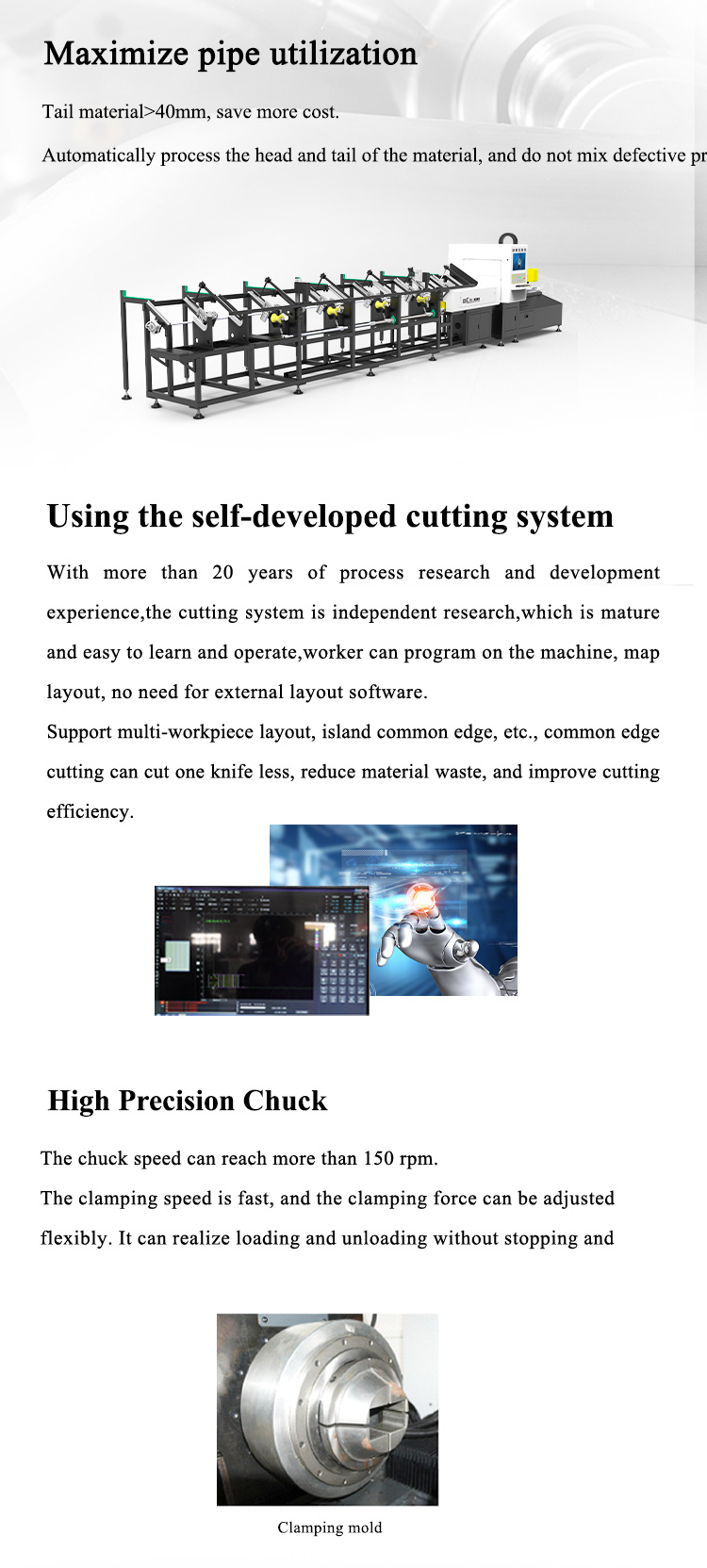

4. Tail material of the CNC Laser Cutting Machine>40mm, save more cost.
5. Automatically process the head and tail of the material, and do not mix defective products.
6. The fiber Laser Cutting Machine has an independent research and development system, which can remotely upgrade and diagnose faults for customers.

7. Machine diameter


  • Tube cutting working area:Automatic feeding: φ8mm-φ80mm, rectangular tube 10×10mm-60×60mm(Diagonal less than 85mm)
  • Cutting material:Carbon steel or stainless steel round tube, square tube, rectangular tube, elliptical tube, etc
  • Tailing length:>40mm
  • Maximum single tube weight:25kg (example: round pipe φ60x2x6000mm)
  • Size(LxWxH):8400x1900x2200mm

Laser Cutting Machine1

X13 01X13 02X13 03X13 04

X13 X15 02

High Speed Pipe Cutting4070608
