Description:

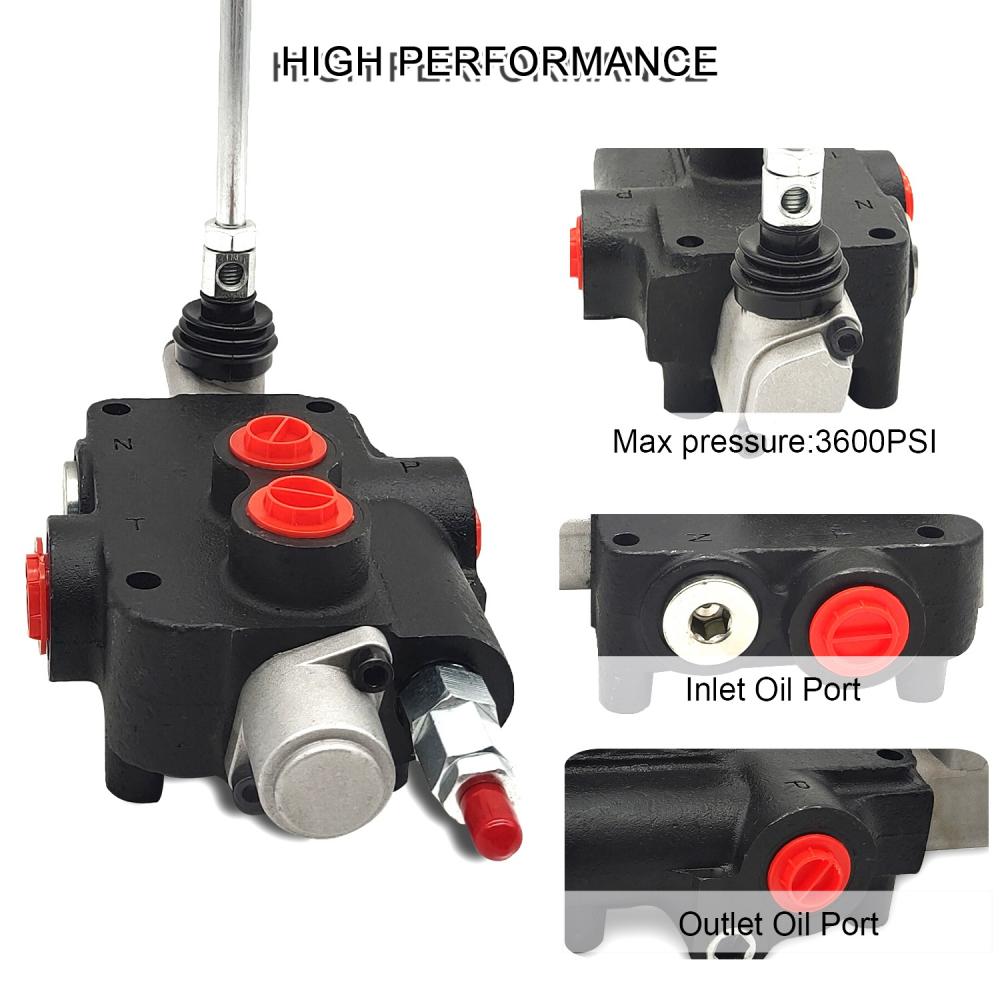

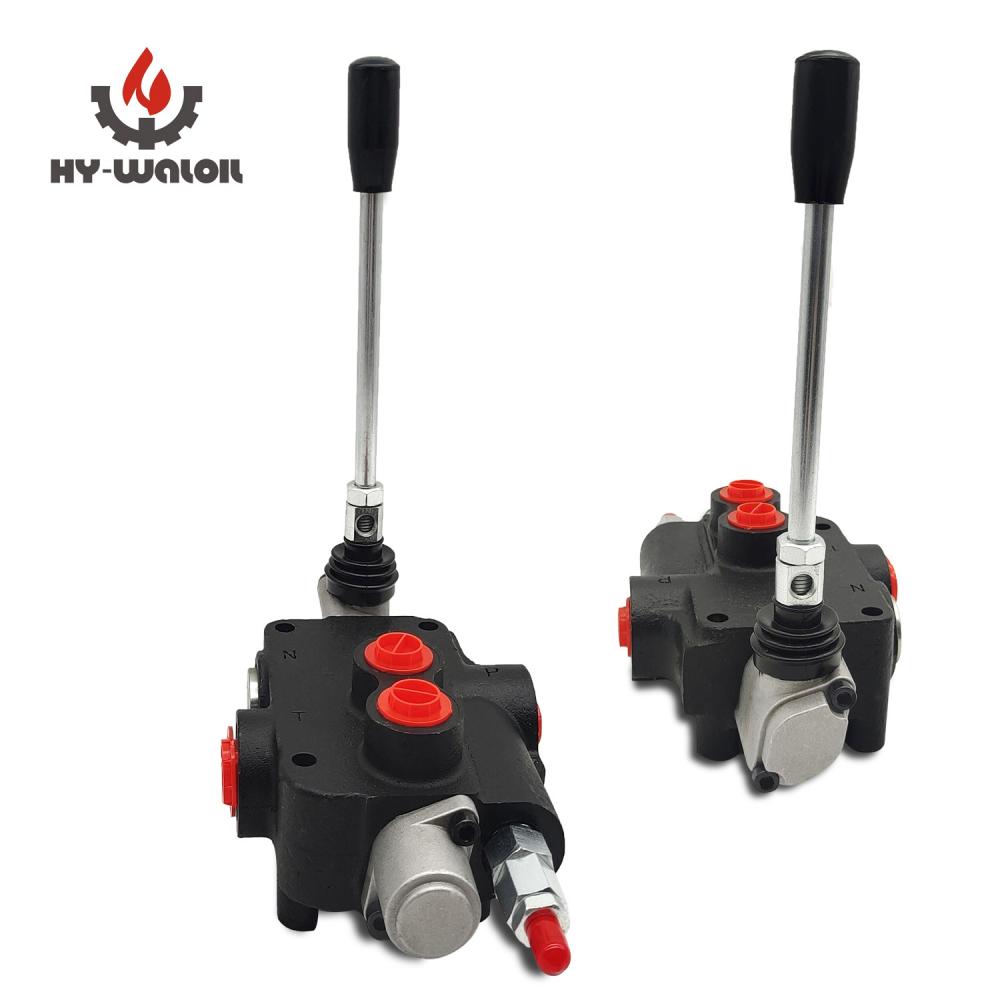

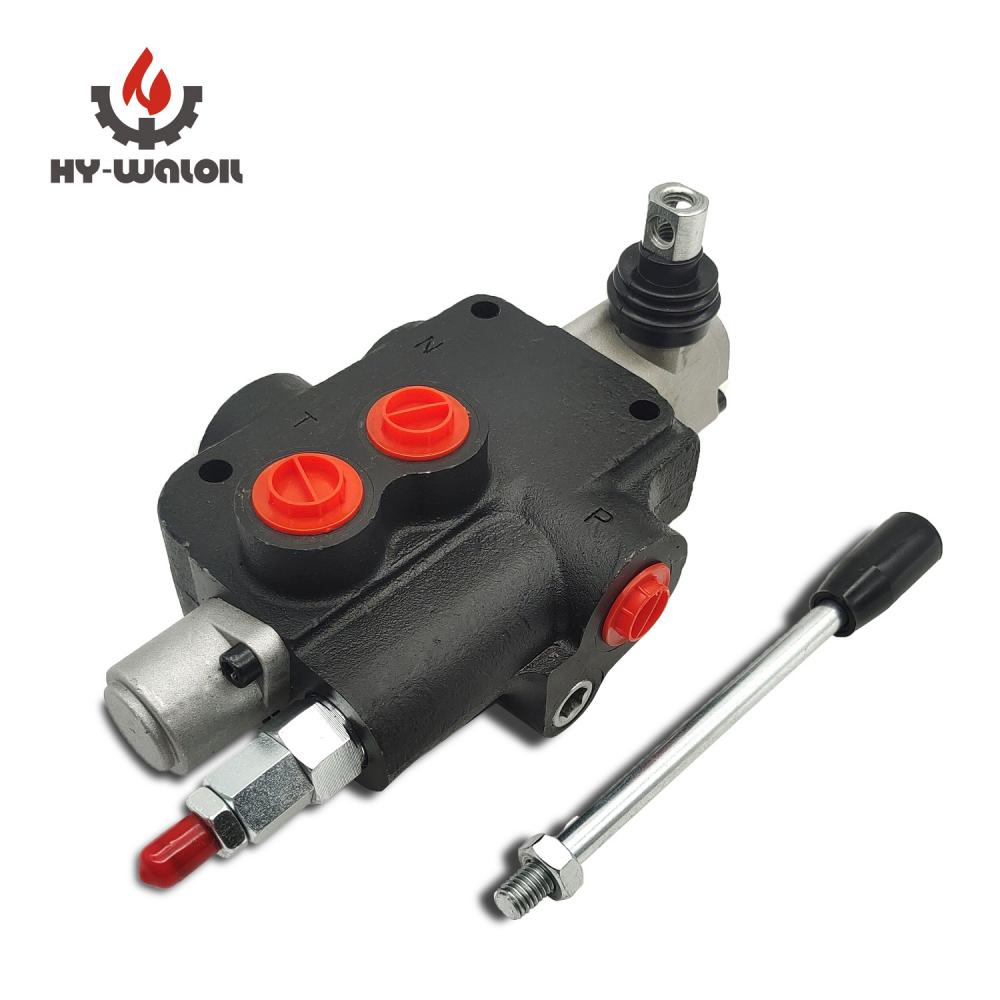

1. Hydraulic Control Valves for double-acting cylinders have 21 GPM, 3 or 4-way valving, 3 pos spring tandem centers with SAE 8/10 work/outlet ports.
2. P80 Series Monoblock Control Valve has high tensile strength, is resistant to corrosion, and extremely durable even after prolonged exposure to harsh conditions.

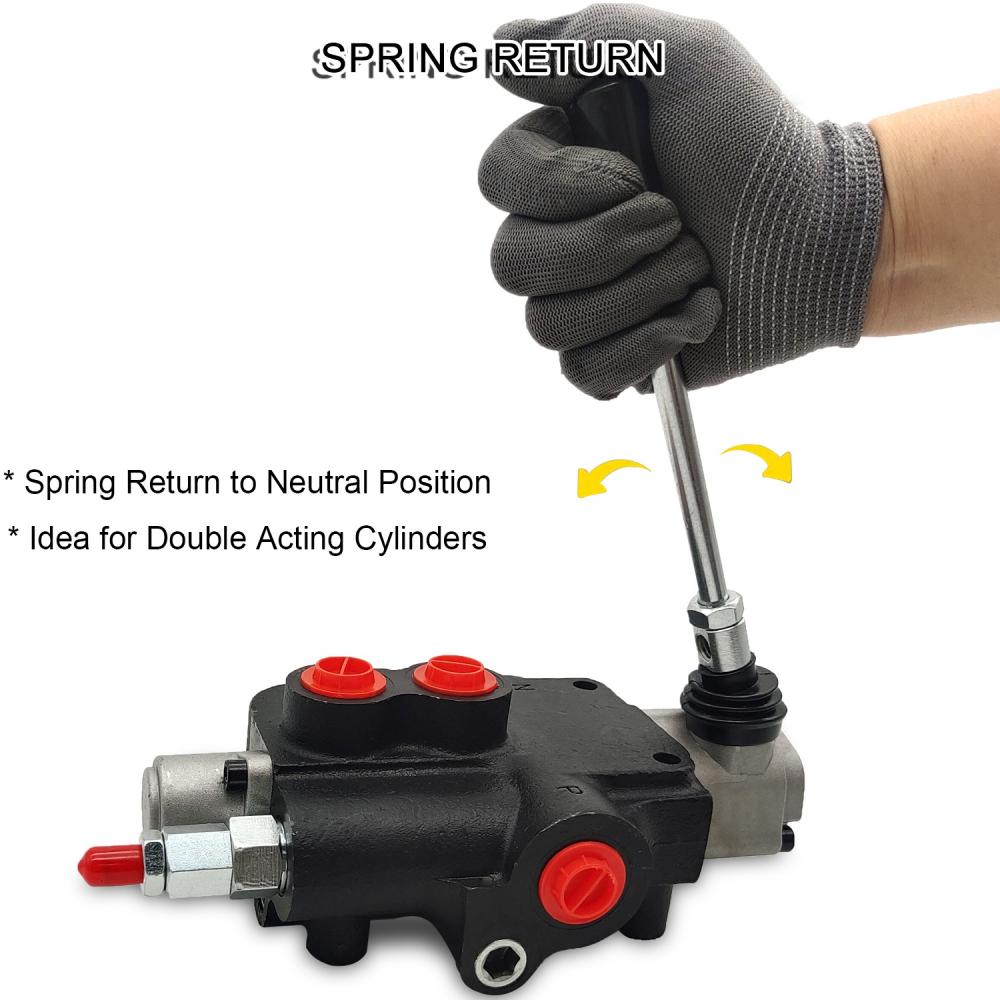

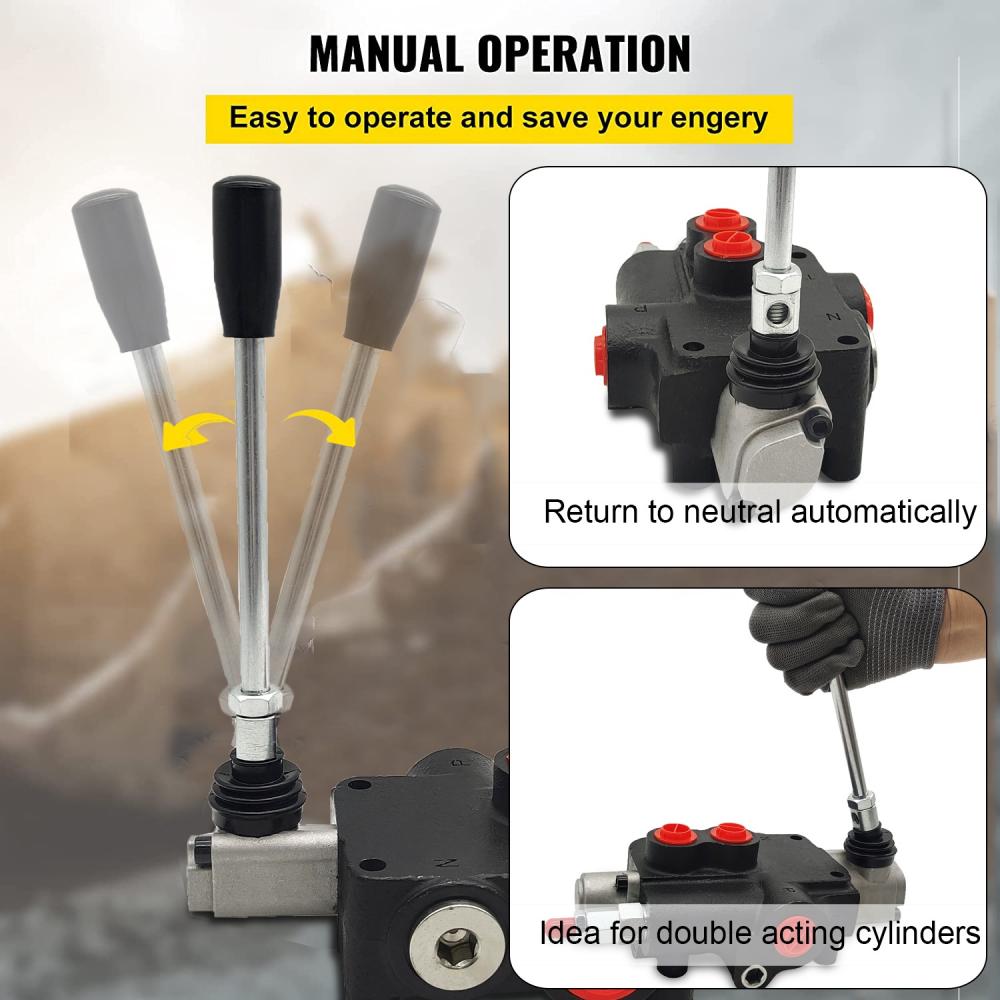

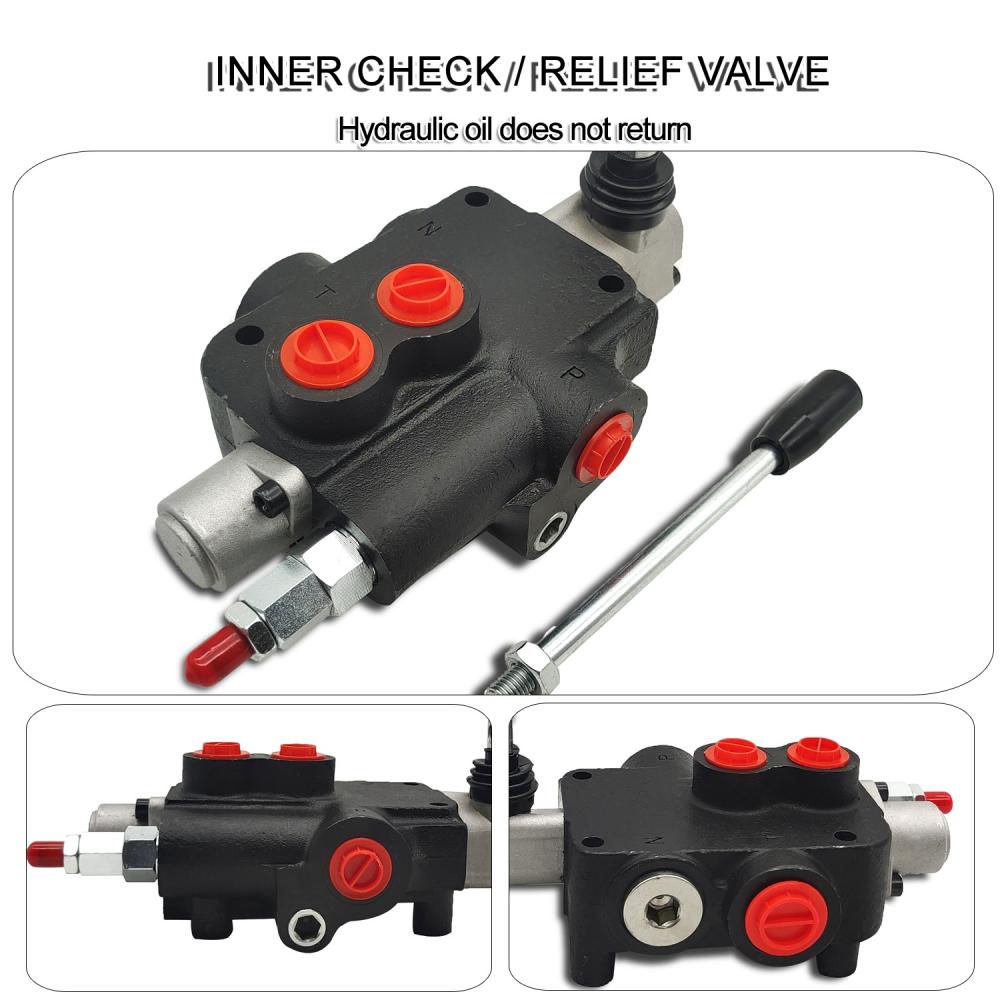

3. Hydraulic Relief Valve has a 3-position valve that can retract, extend, or neutralize the piston inside hydraulic cylinders.
4. Our hydraulic control valves has 1 spool that allows for installation in extremely cramped spaces with relative ease.
Mineral based hydraulic oil
Nominal flow rate
80 L/min P80 Series Monoblock Control Valve
Max pressure
P: 315 bar, T: 50 bar, A-B: 300 bar
Spool type
Standard open center spool (A spool), different spool options
Number of spools
From 1 to 6
Leakage
6 cm3/min at 100 bar (From A,B to T)
Fluid temperature range
-10 ° C to + 80 ° C
Working fluid
Viscosity
10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Benefits
Precise, Perfect, Powerful, Integrally casted by forging, which has good sealing performance and does not leak oil, long lasting.
Application
forklifts, sanitation vehicles, small loaders, light-duty machinery and other construction machinery.
