P40 Hydraulic Monoblock Control Valve Description:

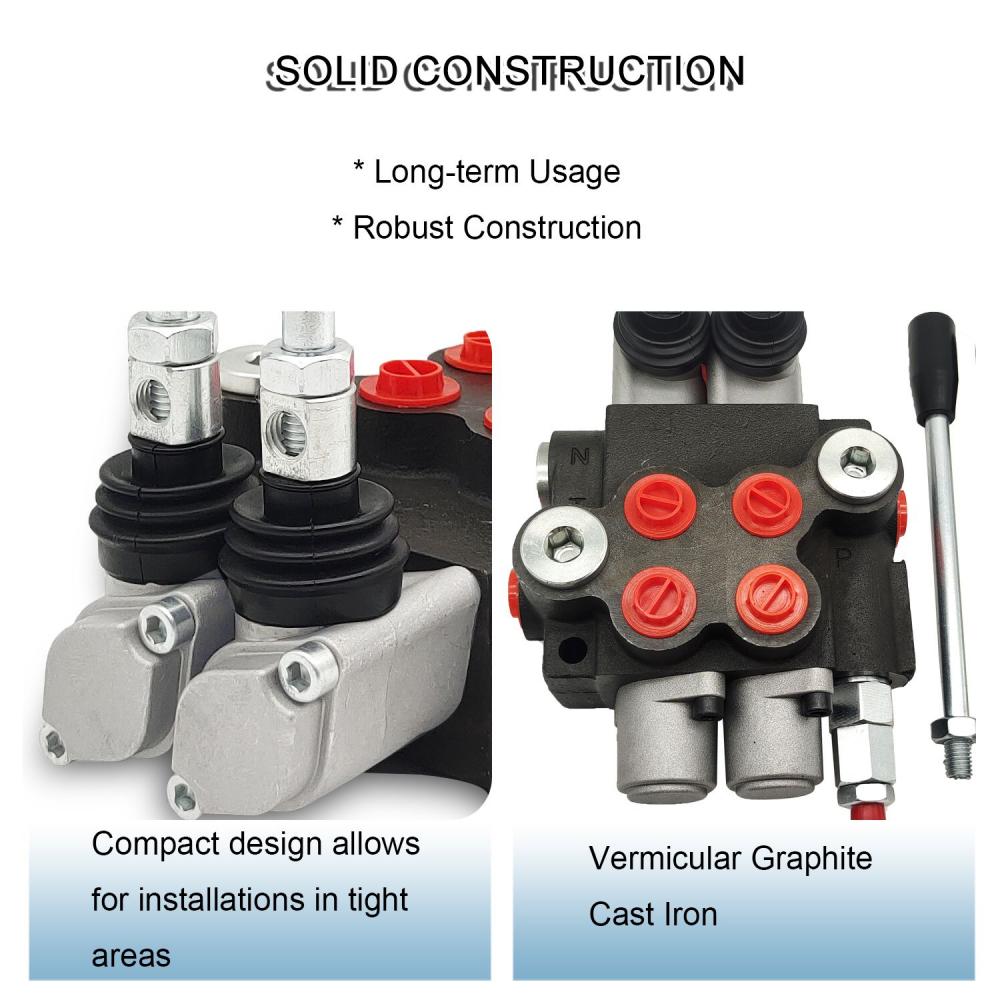

2 Spool valve with compact design allows for installations in tight areas

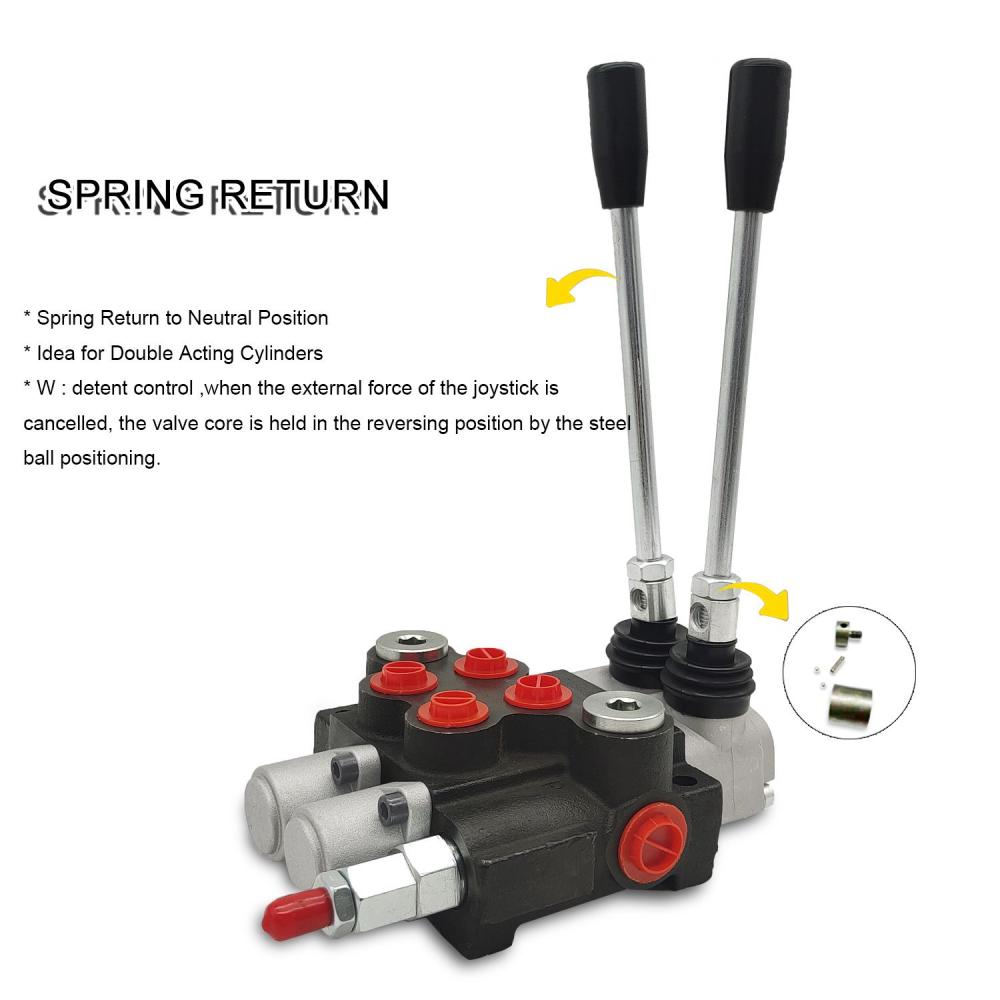

All P40 Directional Multiple Control Valve spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
Used for open center systems (Pump to Tank Flow) - closed center option available
Anti-drop load checks on each spool
Precision ground and hard chrome-plated spools assure a long life
High-tensile strength cast iron monoblock construction
SAE O-Ring ports ensure solid seal and prevent blockages
Capable of closed center or Power Beyond (P40G-CC, P40G-PB conversion plug required)
Vertical or horizontal handle mount, P40 Multiple Spool Directional Control Valve
Adjustable Relief Valve Range: 1500 to 3625 PSI
Wholesale Monoblock 2P40 Hydraulic Control Valve Used as motor or single-acting spool possible
| Name |
2P40 Hydraulic Control Valve |
|
Material |
Vermicular graphite cast iron |
| Feature |
Operate hydraulic cylinders (Double-Acting or Single-Acting)
Operate hydraulic motors ("D" Spool Required) Install rear remotes on a tractor
|
|
Oil flow in the system |
40 L/min Excavators P40 Monoblock Hydraulic Hand Valve |
| Specification |
Possibility of series connection to the existing system |
|
Maximum return pressure |
50 bar |
|
Two positioning methods |
Spring return and steel ball positioning |
| NW/GW | 2.5kg/ 2.93kg |
| Package Size | 21*16*10cm |
| Application |
Wide Range of Applications, such as small tractors, tractor loaders, log diverters, etc. |
 |
  |
