Product details

CNC vertical lathe occupies a very important position in CNC machine tools, it is one of the main varieties of CNC lathes, a high-precision, high-efficiency automatic machine tools, and has a wide range of plus process performance. It also has with linear interpolation, circular interpolation various compensation functions, and plays a good economic effect in the mass production of complex parts. At present, CK65C CNC vertical lathe is a relatively popular class of CNC vertical lathes.
CK series machine tool is an automatic CNC processing machine tool, used to process the internal and external cylindrical surface of the parts, tapered surface, end face, grooving and chamfering, the machine tool is especially suitable for the processing of the wheels, discs and other parts of the vehicle.

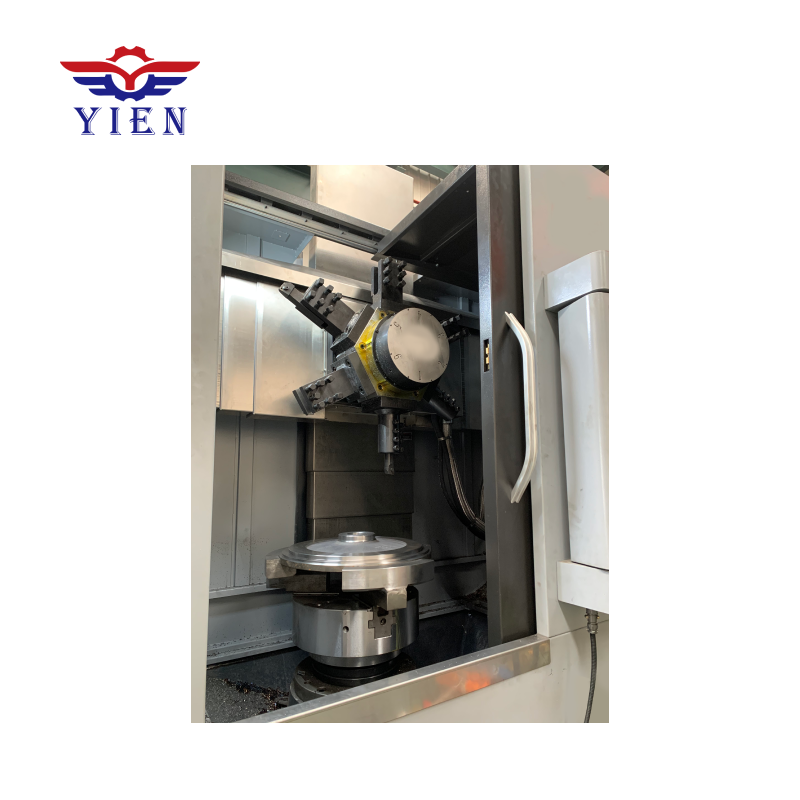

High Quality Cnc Vertical Lathes Cnc Vertical Boring Mills

Application scope

Machining of automotive wheels, discs and other parts.

Main functions

CK series machine tool is an automatic CNC machine tool for machining internal and external cylindrical surfaces, tapered surfaces, end surfaces, grooving and chamfering of parts, which is especially suitable for the machining of automotive wheels, discs and other parts.

Main features

The spindle of the machine adopts frequency conversion and is equipped with 18.5KW motor or more, which is suitable for strong cutting; it is also suitable for semi-finishing and finishing of the parts.
The vertical and horizontal feeds are automatically controlled by servo motors, and the counterweight structure in the vertical direction greatly extends the service life of the screw.
The machine tool holder adopts the form of row tool or four-station electric tool holder, and can be equipped with hydraulic chuck for simple and convenient operation, greatly improving work efficiency.
The machine can be equipped with special tooling and encoder (for thread processing) according to the user's requirements.
This machine can be selected according to user requirements system.

Parameter	UNT	CK65C
Max.Swing diometer	mm	650
Spindle speed No.	level	No
Spinde speed	rpm	50-800
Cuting teed speed	mm/min	0.1-1000
Verticd moving distance of tool halder	mm	550
Max.machining depth of holes	mm	400
Tool rest horzontal moving distance	mm	500
Longitudind fast moving speed	mm/min	8000
Transverse fast moving speed	mm/min
TooLhoder form	Optional	Row knife or electric knife holder


Arbor cross section	Mm²mm	32*32
Main motor power	Kw	18.5
positioning accouracy	mm	0015
Re-positioning accouracy	mm	0012
Machine size	mm	192017502800
