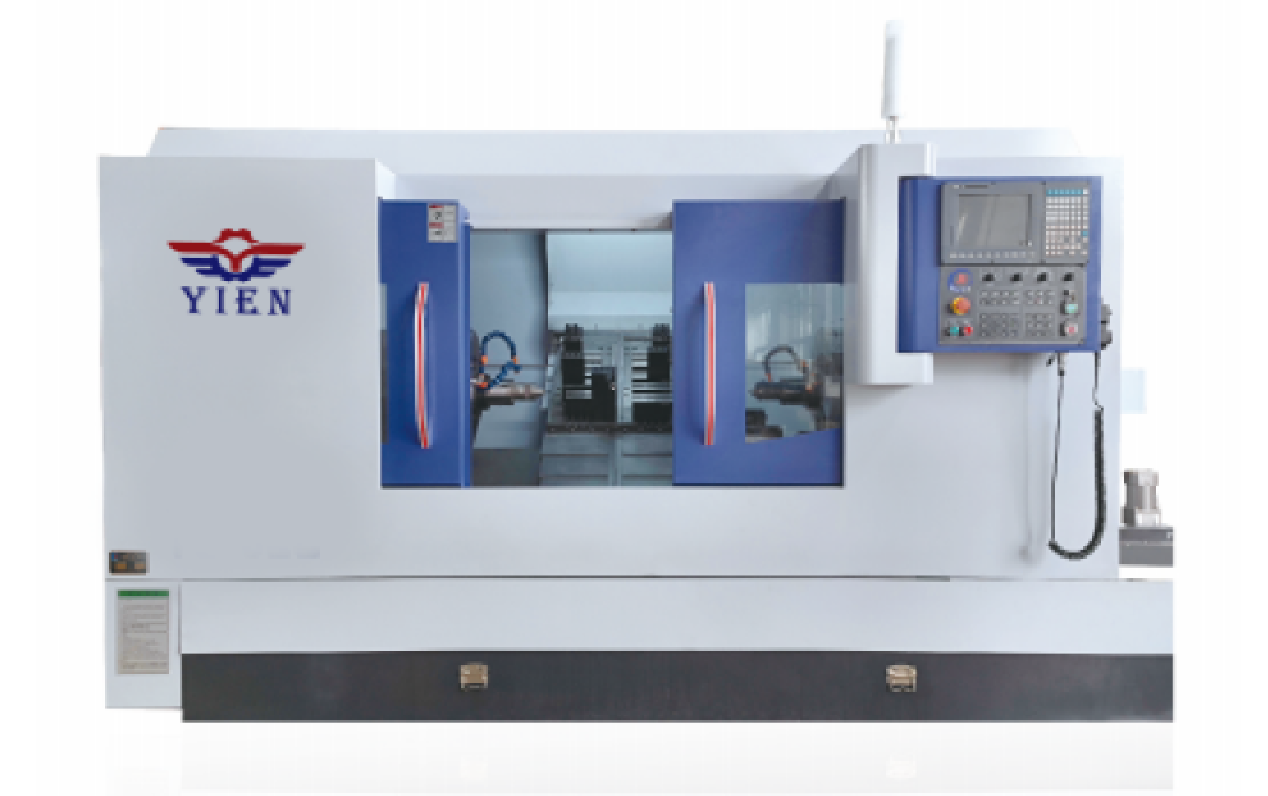

YL series is a center-walking type parallel double spindle CNC lathe with double channel system, double CS axis, double Y axis bi-directional power axis high rigidity modular design and double work area layout, which can realize turning, milling, drilling, tapping and other turning and milling compound processing on the end and side of the parts simultaneously by the positive and negative spindles, which can efficiently complete the processing of various complex and diverse precision parts and save processing time significantly. It can be widely applied to the production and processing of precision parts of aviation, medical, electrical, automobile and locomotive, high-end plumbing hardware, etc.
The Double-Spindle Turning-Milling Composite Machine Tool
is a kind of CNC machine tool, its application field is very wide,
also can do the motor shaft of new energy electric car, we
have supplied this kind of machine for BYD new energy
car too. We offer many more, such as Mini CNC Lathes, Machining Center, and lathe fixture and CNC tools, etc.
Machine Specifications
Item
Unit
YE-YL32E
Maximum Diameter of Bar
mm
Φ32
Maximum Machining Length
mm
100
X/Z Axis Stroke
mm
640/300
X/Z Axis Feed
M/min
20
Spindle motor
kw
7.5/11
Spindle Speed Range
rpm
45-6000
Spindle Nose Specification
A2-5
Screw diameter
mm
Φ32
Feed motor X/Z
kw
1.7/1.7
Pectinate tool holders
Base
5
on each side
3 position ER20 end power shaft
kw
X
3 position ER20 side power shaft
kw
X
Y-axis motor
kw
X
Slider type
Wire
track
Outer warp tool diameter
mm
☐16
Straight warp for hole-lining tools
mm
Φ20
Lubrication pump testing points
2
points
Cooling motor
hp
1/2
Cooling tank capacity
L
315(85%)
Hydraulic motor
hp
1
Oil pressure tank capacity
L
20(85%)
Total power required
KVA
26.5KVA
Voltage,Frequency
3phase/220V(380V)50Hz
Voltage Stabilization
kw
±10%
Machine Size (LxWxD)
mm
4000*2500(3000)*2500
Weight
kg
6000
If you are interested in the product, contact 2bvideo.com for more information for more information
