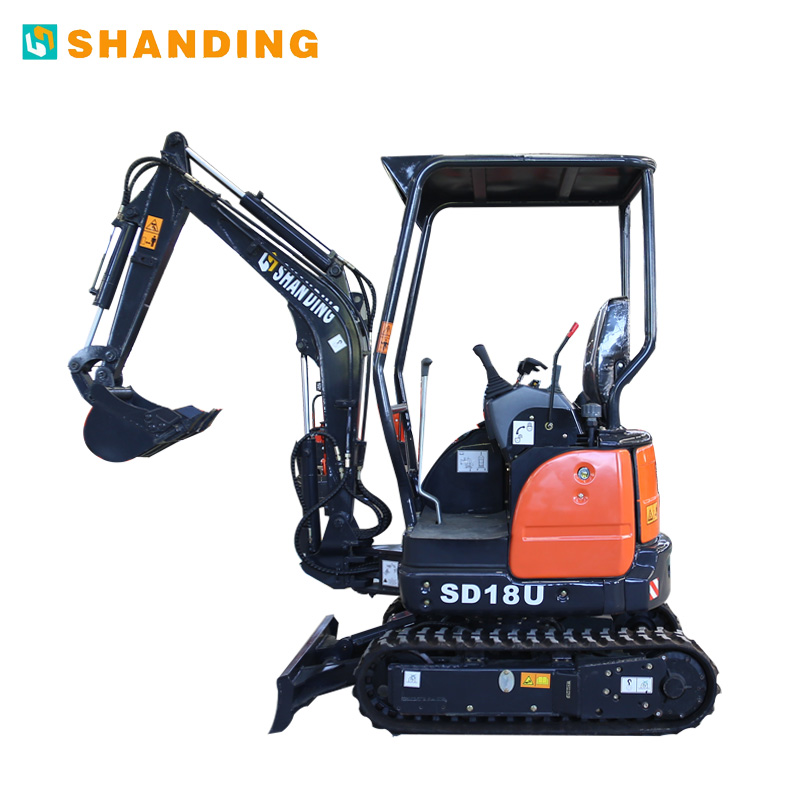

Shanding Brand Mini Excavator 1.8 Ton SD18U
We are looking for agents and partners
Machine parameters
Model
SD18U
Operating Weight
1.8ton
Bucket Capacity
0.06m³
Rated Power
14.7 kw
Max.Hydraulic System Pressure
18mpa
Max. Grade ability
30°
Max Walking Speed
2.8km/h
Max. Traction
16kn
Platform Rotary Speed
14 r/min
Boom swing function
optional
Crawler stretch function
optional
Dimensions
Overall Length
3050mm
Overall Width
1100mm
Overall Height
2200mm
Arm Length
920mm
Boom Length
1650mm
Track Length
1420mm
Track Width
230mm
Platform Width
950mm
Platform Ground Clearance
440mm
Bucket Width
440mm
Working range
Max. Digging Height
3350mm
Max Digging Depth
2042mm
Max. Digging Radius
3600mm
Max Dumping Height
2250mm
Radius of Tail Gyration
790mm
Max. Sinking Depth of Bulldozer
195mm
Max. Lifting Depth of Bulldozer
200mm
Machine configure
Engine Model
Perkins
Main valve
Beifang
Main Pump
Futai 3 pumps system
Rotation Motor
Eaton
Walking Motor
Eaton
