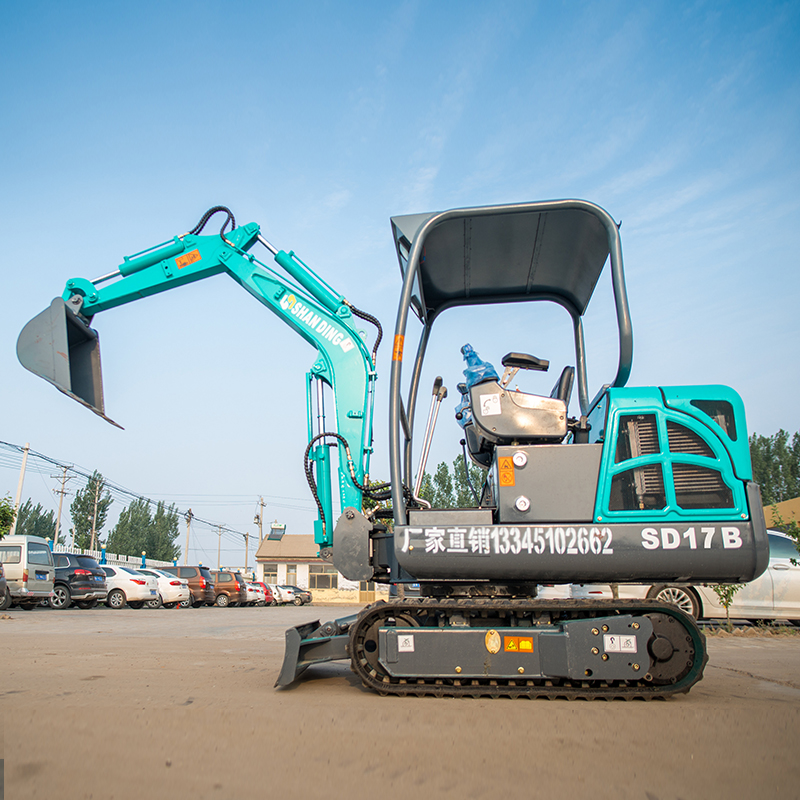

The product has beautiful appearance, high configuration, superior performance, low fuel consumption and wide operating range. It is suitable for small space construction operations such as loosening of land in vegetable greenhouses, landscaping of municipal departments, digging pits for planting trees in orchard nurseries, crushing of concrete pavement and mixing of sand and stone materials. Quick-change joints can be used to reduce maintenance and operation costs, liberate labor, increase mechanization, low investment and high return.Medium Wheeled Excavators,Bucket Wheel Excavators,Crawler Wheeled Excavators
|
Machine parameters |
|
|
Model |
SD17B |
|
Operating Weight |
1600Kg |
|
Bucket Capacity |
0.06m³ |
|
Rated Power |
14.8 kw,14.7 kw,10 kw |
|
Max.Hydraulic System Pressure |
16mpa |
|
Max. Grade ability |
30° |
|
Max. Ground Pressure |
23.7N/m² |
|
Max Walking Speed |
2.9Km/h |
|
Max. Traction |
10KN |
|
Platform Rotary Speed |
9-11r/min |
|
Boom swing function |
yes |
|
Crawler stretch function |
optional |
|
Dimensions |
|
|
Overall Length |
3635mm |
|
Overall Width |
1000mm |
|
Overall Height |
2150mm |
|
Arm Length |
900mm |
|
Boom Length |
1650mm |
|
Track Length |
1420mm |
|
Track Width |
230mm |
|
Ground Clearance |
305mm |
|
Platform Width |
990mm |
|
Platform Ground Clearance |
480mm |
|
Bucket Width |
450mm |
|
Working range |
|
|
Max. Digging Height |
3300mm |
|
Max Digging Depth |
1950mm |
|
Max. Digging Radius |
3600mm |
|
Max Dumping Height |
2080mm |
|
Radius of Tail Gyration |
1180mm |
|
Max. Sinking Depth of Bulldozer |
200mm |
|
Max. Lifting Depth of Bulldozer |
225mm |
|
Machine configure |
|
|
Engine Model |
Laidong ,Perkins,Yanmar |
|
Main valve |
Husco |
|
Main Pump |
Futai 3 pumps system |
|
Rotation Motor |
Eaton |
|
Walking Motor |
SANYO |
