Preface

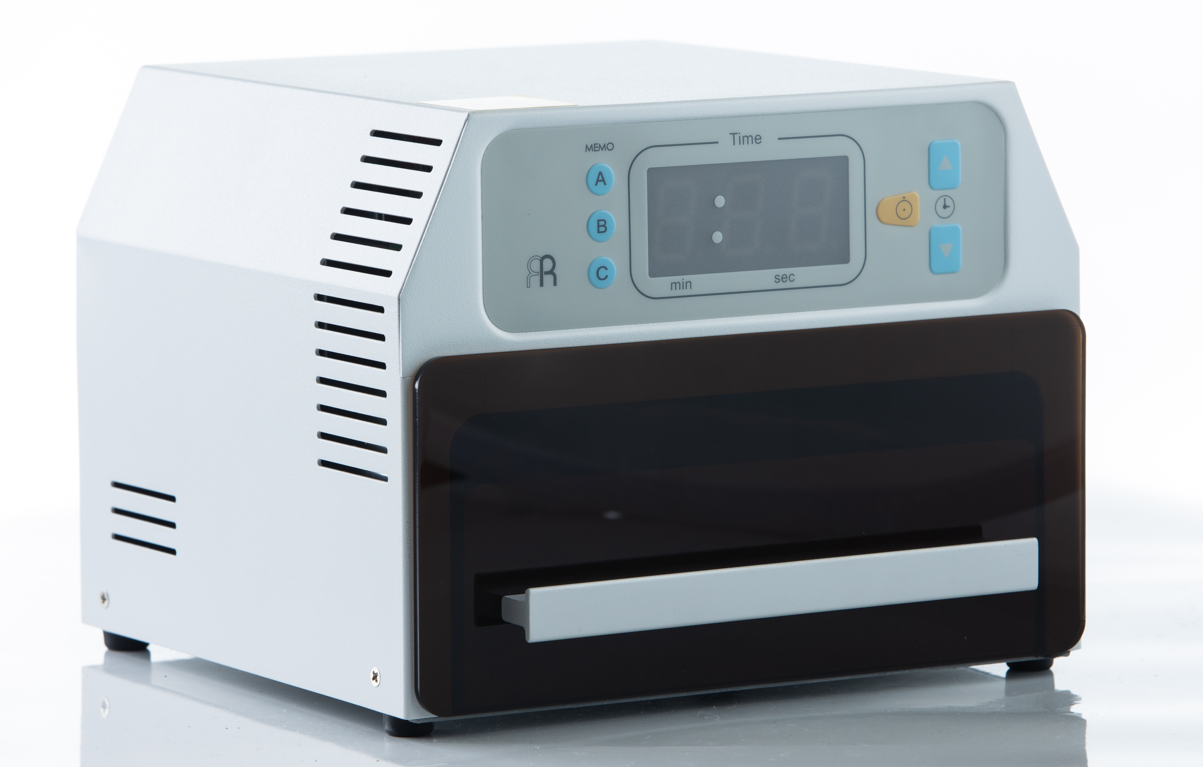

Dear valued customer, thank you for selecting our LED Curing Devices. It is a high quality technical Curing Box product for dental lab professionals. The Curing Box is developed for polymerization of dental composite and resin - harden impression tray, forming crown, bridge, artificial gingival and denture finishing etc. It is used in dental lab technology and equipped with state-of-the-art electronic components.
Inappropriate use may damage the Curing Box and be harmful to human body. Please read the relevant safety instruction in this manual. This helps you use this equipment properly and easily.
Characteristic/feature
1. The Curing Box consists of dental Violet L.E.D. which have much longer lifetime than halogen lamps.
2. Digital display control panel provides simple and user-friendly operation.
3. Widened curing chamber room makes the in-and-out of the curing object easier.
4. Inner surface of the chamber is surrounded by glossy stainless steel which reflects the LED light and makes performance uniform.
5. Buzzer upon curing process complete.
6. Safety interruption of curing process if the door is opened.
Indications
The LED lab Curing Box must only be used to cure light-activated composite and resin. Uses other than the one foresaid purpose are contraindicated. The manufacturer does not assume any liability for damage resulting from misuse.
Health and Safety Instructions
1. Direct view into the light without a filter or goggles may lead to eye harm.
2. Do not place the unit in the immediate vicinity of heaters or other sources of heat.
3. Place the apparatus away from combustible objects.
4. Make sure that no foreign objects may enter the air vent.
5. The unit must be used indoors.
Working Environment
In order to ensure optimum performance, please keep this unit in a clean environment. Dust might attach on the LED, causing malfunction of the LED or other damage.
Product Specification-Technical Data:
Power Supply Voltage:
100 - 240 VAC; 50/60 Hz
Wattage: MAX 65 W
Dimension:
Height: 150 mm
Width: 200 mm
Depth: 216 mm
Weight: 3.3 kg
Operating Environment:
AMBIENT TEMPERATURE: +10℃ – +40℃
RELATIVE HUMIDITY: 30% – 75%
AMBIENT PRESSURE: 700 hPa – 1060 hPa
Transportation and Storage Conditions:
Ambient temperature: －10℃ – +70℃
Relative humidity: 10% – 90%
Ambient pressure: 500 hPa – 1060 hPa
Wavelength: 405 ± 15 nm
Unpacking and checking the content
1 Main Curing Box equipment
1 Power cord
1 Protective Goggle
1 User Manual
Assembly and initial start-up
Note: Prior to first use, please remove the screw on the bottom. Make the tray movable and ready for use.
Optional Accessories
Optional accessories of Extra eye protection goggles can be purchased from authorized Rolence dealers where you purchase this Curing Box.
Curing
This Curing Box supports 2 types of curing process: (1) Regular Continuous Mode and (2) Flashing Mode – 10 Hz on & off flashing. To activate the Regular Continuous Mode curing, press the On/Off button. To activate the Flashing Mode curing, hold down the On/Off button for more than 4 seconds until you hear a beeping sound. The Curing Box will then start the Flashing Mode curing process.
The maximum curing time per cycle can be set at 9 min 50 seconds. When curing process starts, the digital timer counts down - indicating the remaining time of the process. In an emergency, stop the process by re-pressing On/Off button.
Memory Function
The system features memory function to memorize the curing time. 3 settings are available on the left side of control panel showing as three buttons A, B, and C. Press down each button for 5 seconds, wait until the beeping sound and flashing numbers showing the current curing time is well memorized. Press button to recall the preferred setting before use.
Changing LED
Total 12 LEDs are used in this Curing Box. To replace the LED, please refer to the Service Manual. All LED parts can be purchased from authorized Rolence distributors.
