UNA series Single Phase online UPS ranges from 1-3 kVA with tower cabinets. The high frequency UPS system adopts DSP control technology and online dual conversion technology. Its advanced PFC technology makes the input power factor greater than 99%. It is a great value product designed for PCs, servers and control systems in small businesses.
◆Application
IDC(Internet Dater Center), network, servers and workstations, control system, communication system, office, PC etc
◆Features
●True online double-conversion technology
●Wide input voltage range and stable power supply extends battery lifetime
●DSP technology
●Advanced PFC technology,input PF>99%
●Cold start
●Lighting and surge protection
●Smart RS232 port with monitoring software
●Smart slot for mission critical applications

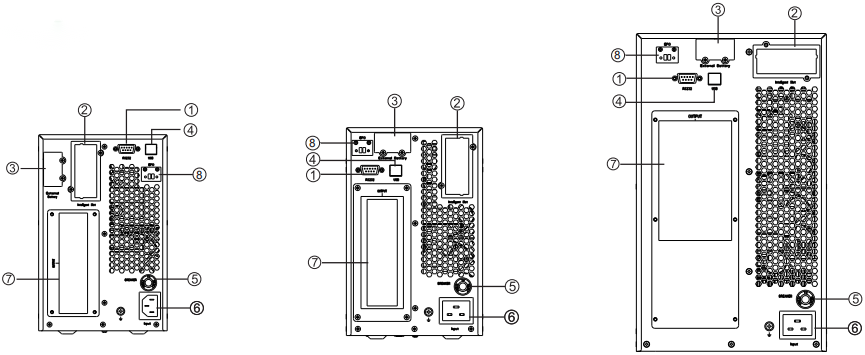

◆Real Panel
1KS(L) 2KL/3KL 2KS/3KS
① RS232 ⑤ Input over current breaker
② Smart slot ⑥ AC input
③ External battery connection port ⑦ Output socket
④ USB ⑧ EPO
|
Model |
UNA1101KS |
UNA1101KL |
UNA1102KS |
UNA1102KL |
UNA1103KS |
UNA1103KL |
|
Capacity |
1kVA/1kW |
2kVA/2kW |
3kVA/3kW |
|||
|
Input |
||||||
|
Nominal Voltage |
208/ 220/230/240Vac, L+N+PE |
|||||
|
Voltage Range |
110~300Vac |
|||||
|
Frequency Range |
40-70Hz |
|||||
|
Power Factor |
≥0.99 |
|||||
|
THDi |
≤4% (linear load); ≤5% (non-linear load) |
|||||
|
Output |
||||||
|
Nominal Voltage |
208/220/230/240Vac ,L+N+PE |
|||||
|
Voltage Regulation |
±1% |
|||||
|
Frequency |
50/60Hz ± 0.1% |
|||||
|
THDu Hamonic Distrotion |
≤2% (linear load); ≤5% (non-linear load) |
|||||
|
Transfer Time |
Zero |
|||||
|
Waveform |
Pure sine wave |
|||||
|
Crest Factor |
3:1 |
|||||
|
Overload Capacity (Line Mode) |
102%~110% load, 30min;110%~130% load, 10min; 130%~150% load, 30s; >150% load, 200ms |
|||||
|
Overload Capacity (Battery Mode) |
102%~110% load, 1min;110%~130% load, 10s; 130%~150% load, 3s;>150% load, 200ms |
|||||
|
Efficiency |
||||||
|
Line Mode |
94.5% |
95.5% |
95.5% |
|||
|
Battery Mode |
88.5% |
91.5% |
91.5% |
|||
|
ECO Mode |
98% |
|||||
|
Battery |
||||||
|
Battery Voltage |
36Vdc |
72Vdc |
96Vdc |
|||
|
Battery Number |
7Ah*3pcs |
External |
7Ah*6pcs |
External |
7Ah*8pcs |
External |
|
Charge Current |
1A |
1-12A |
1A |
1-12A |
1A |
1-12A |
|
Communication |
||||||
|
Interface |
RS232 / USB/ SNMP card(optional) /Dry contact card(optional) |
|||||
|
Environment |
||||||
|
Operation Temperature |
0~40℃ |
|||||
|
Humidity |
0~95%(non-condensing) |
|||||
|
Noise |
≤50dB@1meter away |
|||||
|
Altitude |
Up to 1000m without derating |
|||||
|
Physical |
||||||
|
Dimensions (W*D*H)mm |
145*354*224 |
145*354*224 |
190*418*322 |
145*405*224 |
190*418*322 |
145*405*224 |
|
Weight (kg) |
10 |
4 |
18.5 |
6.4 |
25 |
8.2 |
