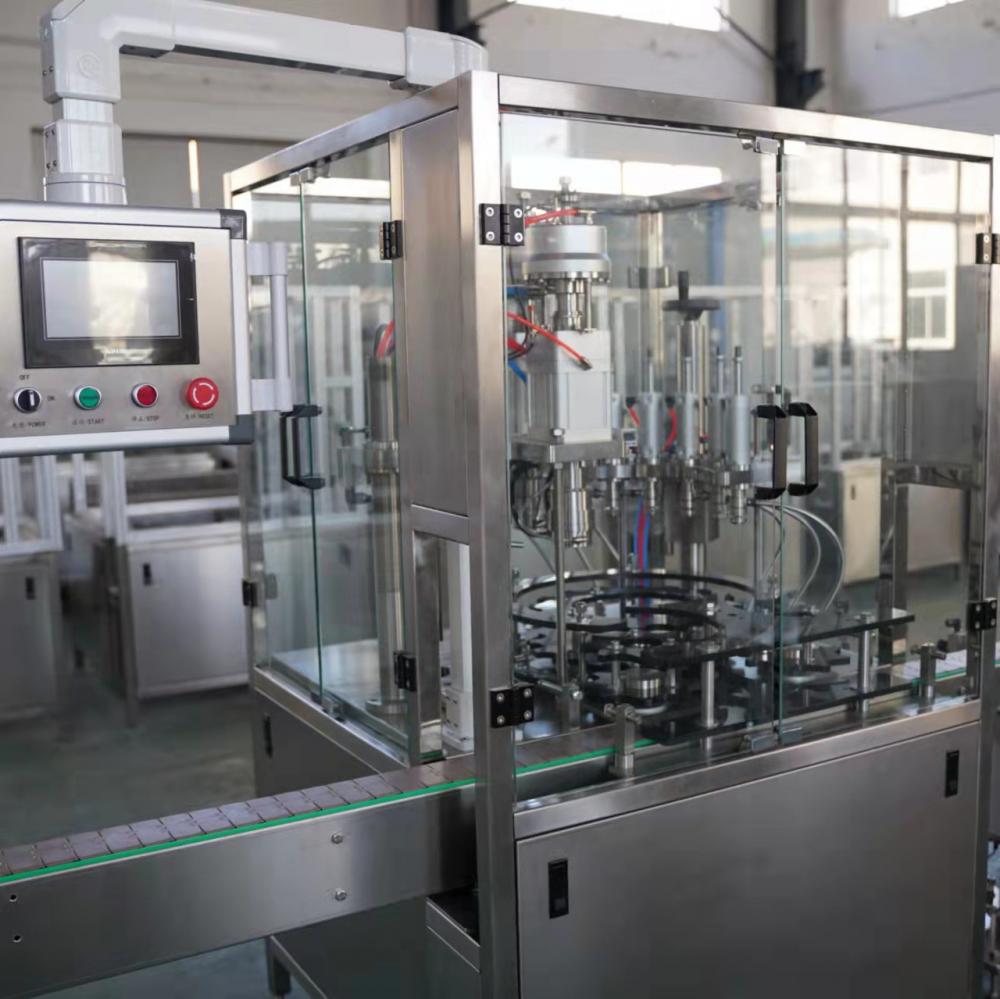

Fully Automatic Bag On Valve Aerosol Production Line

Description:

Aerosol filling machines are advanced machinery used in the packaging industry to fill aerosol cans with various products such as paints, insecticides, deodorants, and other pressurized substances. These machines are designed to automate the filling process, ensuring accurate and efficient production.

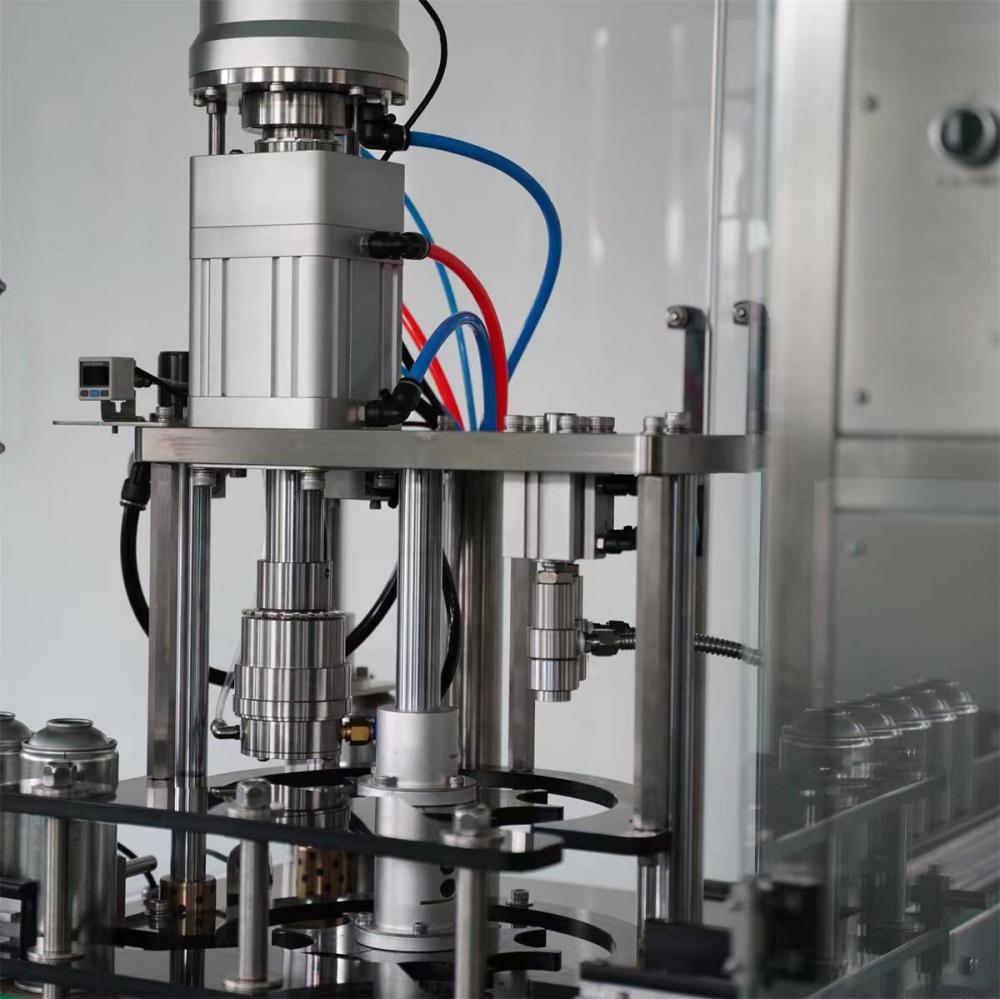

The aerosol filling machines typically consist of a conveyor system that transports empty cans to the filling station. At the filling station, the cans are filled with the desired product through a nozzle or valve. The filling process is controlled by a programmable logic controller (PLC), which ensures precise measurement and control of the filling volume.

These machines are equipped with advanced features such as automatic can feeding, filling, and sealing mechanisms. They can handle different sizes and shapes of aerosol cans, allowing for versatile production capabilities. The filling machines also incorporate safety measures to prevent any leakage or spills during the filling process.

Additionally, aerosol filling machines can be integrated with other packaging equipment such as capping machines, labeling machines, and shrink wrapping machines to create a complete packaging line. This integration enhances the overall efficiency and productivity of the packaging process.

Overall, aerosol filling machines offer a reliable and efficient solution for filling aerosol cans, reducing manual labor and ensuring consistent product quality. They are widely used in industries such as cosmetics, household products, automotive, and pharmaceuticals.Our company also has other productions including Automatic Aerosol Filling Machines、Semi-Automatic Aerosol Filling Machines、Measurement Instruments.

Features :

· Modular design meeting customers’ different requirements

· PLC system, intelligent and convenient

· Multiple alarming systems to ensure safe operation

· 3 dosing moves at one time

· Different layouts “Straight”, “L”, and “U” optional

Specification

Outline (LWH)	Capacity	Liquid Filling Volume	Gas Filling Volume	Accuracy
2200015002000mm	30~45 cans/minute	50~550ml	0~0.6Mpa	≤ ±1g
Applicable Can Diameter	Applicable Can Height	Applicable Valve Size	Working Air Pressure	Maximum Air Consumption
40~66mm	80~330mm	1 Inch	0.7~0.8Mpa(102~116Psi)	4000L/M
