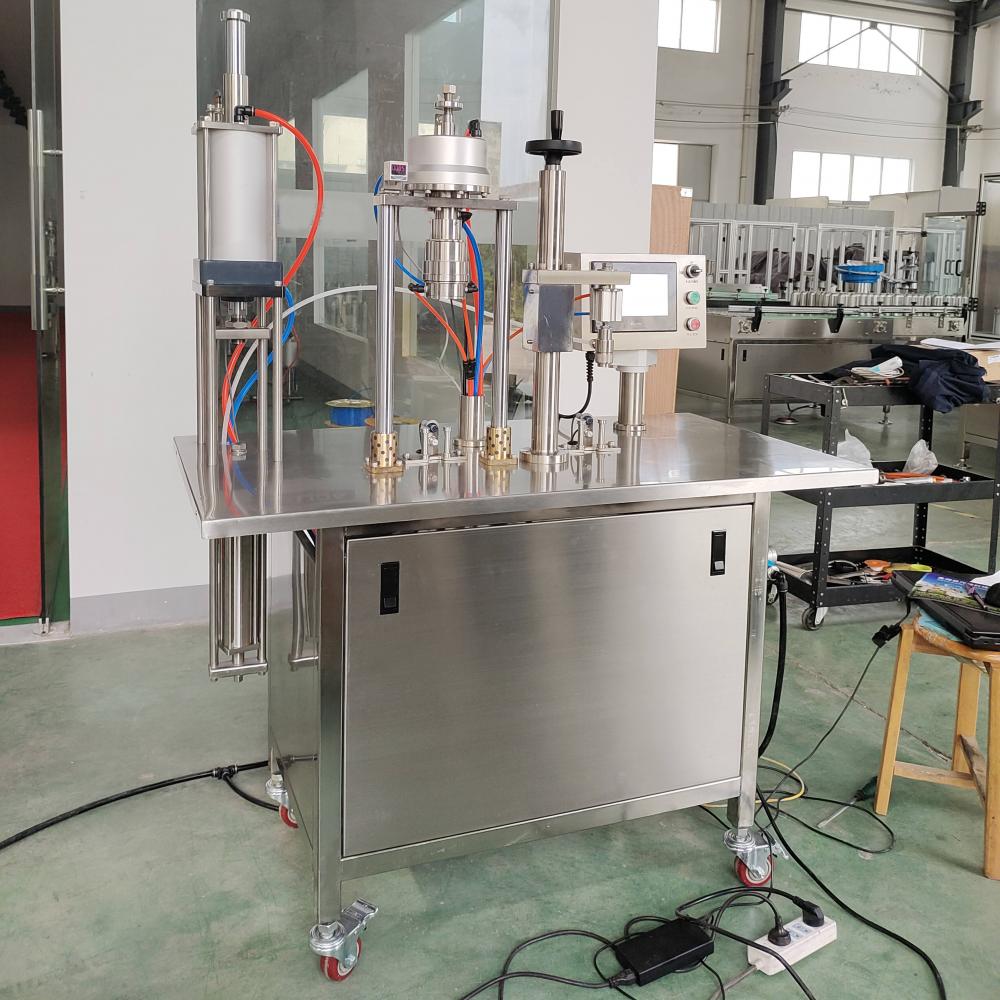

Semi-automatic Bag On Valve Aerosol Filling Machine

Description:

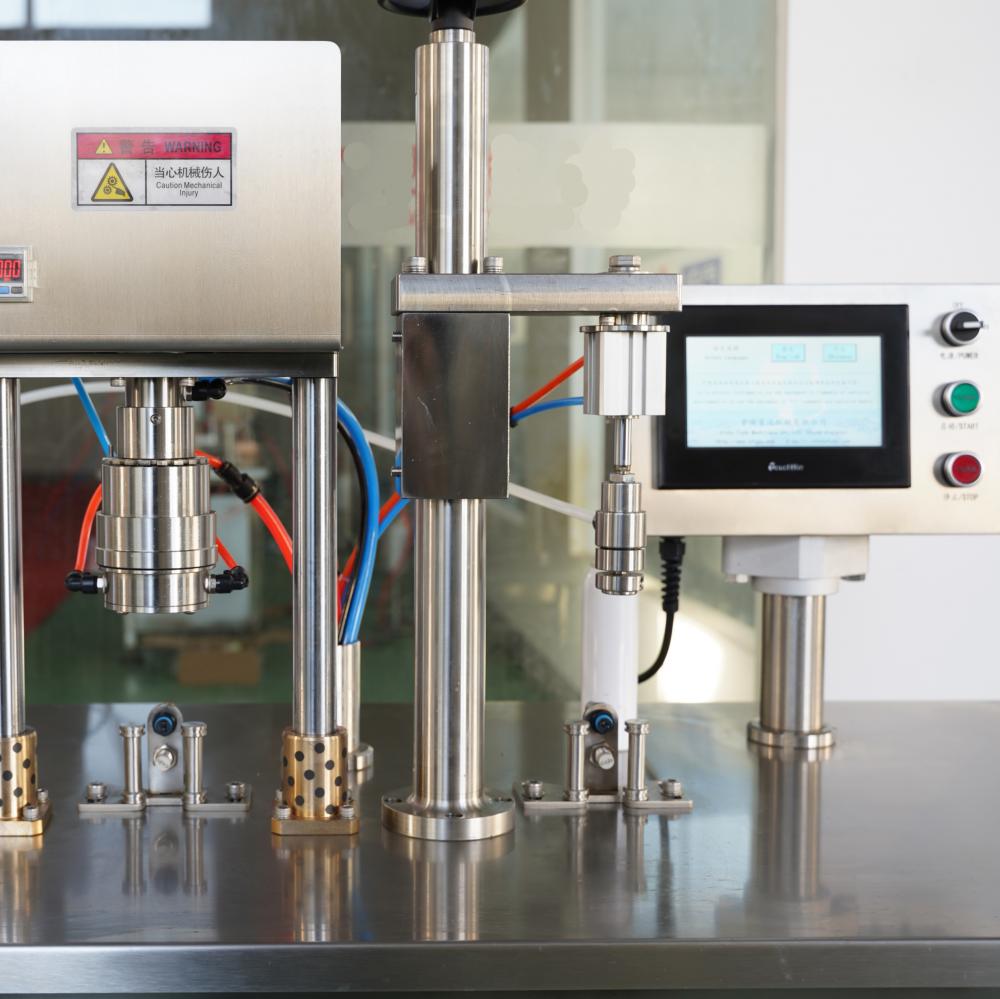

Semi-automatic aerosol filling machines crimping system is responsible for sealing the cans after filling. It uses a mechanical or pneumatic crimping head to crimp the valve onto the can, ensuring a secure and leak-proof seal.

The control panel is used to monitor and control the filling process. It allows operators to adjust filling parameters, such as filling volume and propellant pressure, and provides feedback on the machine's performance.

Semi-automatic aerosol filling machines are ideal for small to medium-scale production operations. They offer a cost-effective solution for filling aerosol cans with high precision and efficiency.

Specification

Outline (LWH)	Weight	Driving Method	Maximum Air Consumption	Working Air Pressure
9605001700mm	130kg	Compressed Air	1000L/M	0.6~0.7Mpa(87~102Psi)
Applicable Can Diameter	Applicable Can Height	Applicable Valve Type	Applicable Valve Size	Filling Speed
35~66mm	70~330mm	Male/Female	1 Inch(25.4mm)	15~20 Cans/Minute
Liquid Filling Volume	Gas Filling Volume	Filling Speed	Filling Accuracy	Applicable Can Type
50~250ml(Customizable)	0~0.6Mpa(Customizable)	15~20 cans/minute	≤±1g	Tinplate/Aluminium/PET

Semi Automatic Aerosol Filling Machines New 22

Semi Automatic Aerosol Filling Machines New 27

Semi Automatic Aerosol Filling Machines New 26
