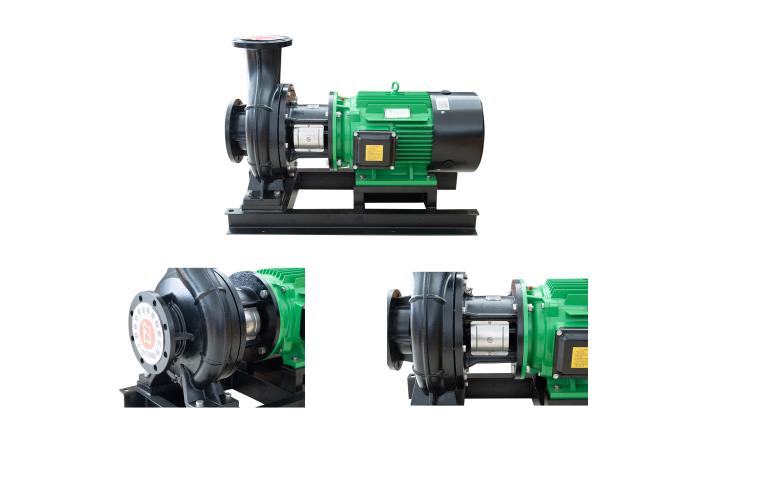

Description of Centrifugal End Suction Water Pump
The NSWA single stage end suction centrifugal pump is a versatile pump that can be used in various applications, including the circulation and transfer of clean, chemically non-aggressive water and other liquids, weather supply and irrigation, and water circulation in air conditioning systems.
This pump has an impressive delivery capacity of up to 2200 m3/h and a maximum head of 85 m. It can handle liquid temperatures ranging from -15℃ to 125℃ and has a maximum operating pressure of 25 bar (PN16). The impeller is made of either AISI 304 or HT 200, and the mechanical seal is compliant with DIN 24960.,and a counter flange is available upon request.
The NSWA centrifugal water pump features a closed construction with external ventilation and insulation class F. It has a protection class of IP55 and operates on a default voltage of 50Hz, but 60Hz can be provided as per the requirement. The pump motor also has overload protection and can operate in an ambient temperature of up to +40℃.
This pump is a single-impeller centrifugal pump that features axial intake and radial discharge. The inlet and outlet DN are compliant with EN 733 (ex DNI 24255) and UNI 7467 standards. These construction features make the NSWA centrifugal water pump a reliable and efficient option for various applications that require the circulation and transfer of clean, non-aggressive liquids.
Product Dispaly
If you are interested in the product, contact 2bvideo.com for more information for more information
