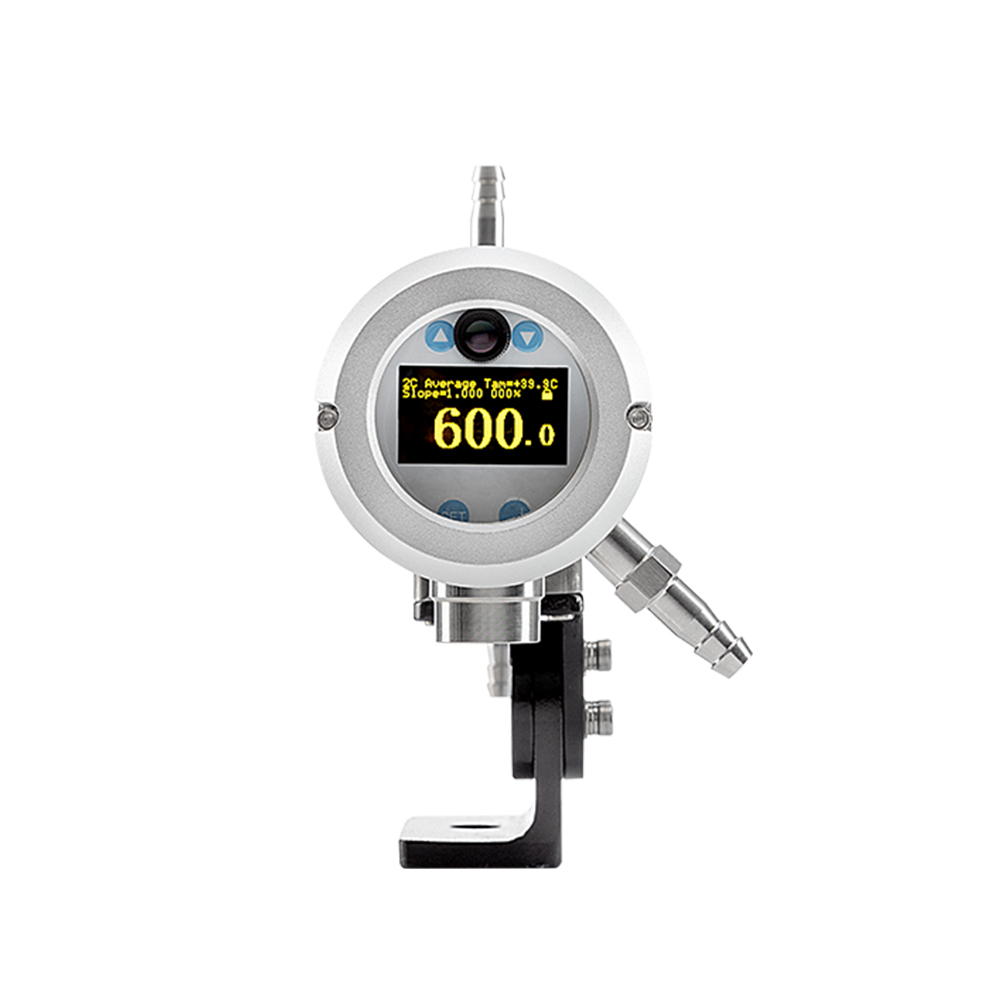

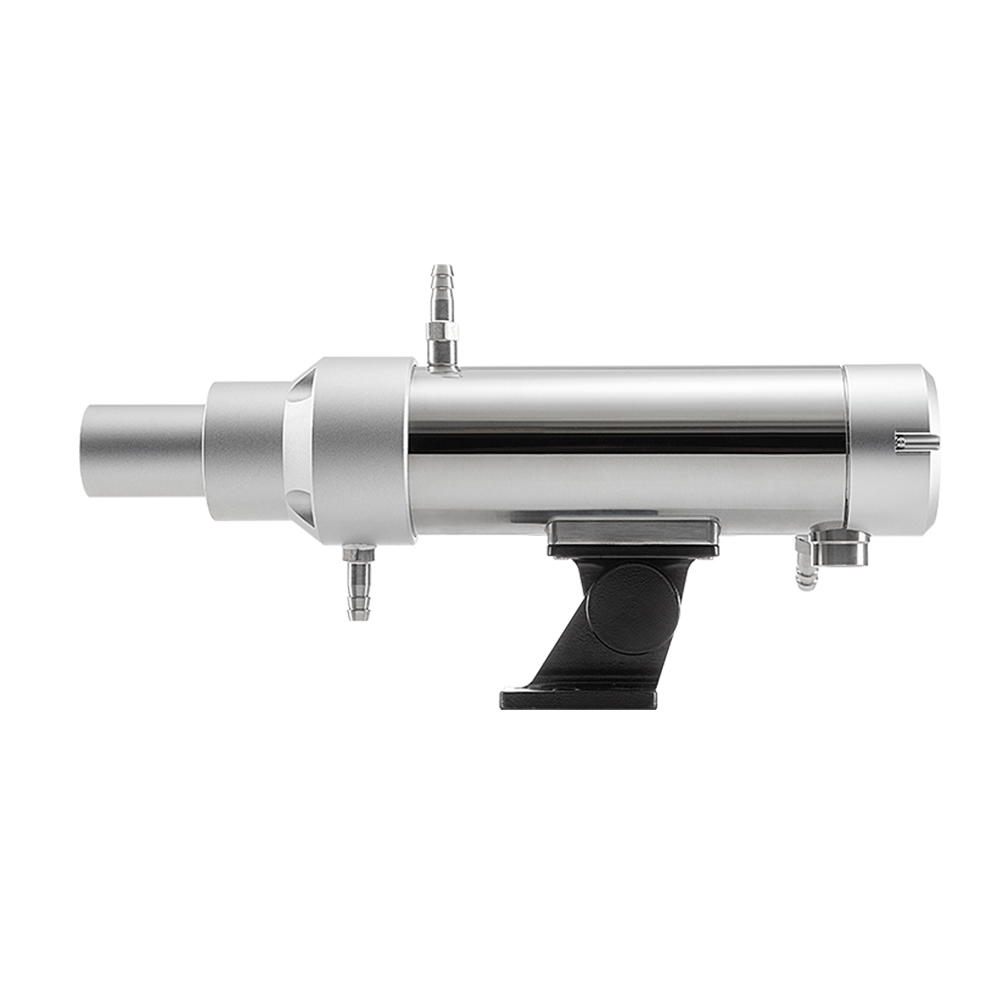

STRONG Series 1-color pyrometer is a series high performance and intelligent industrial pyrometer. the fixed pyrometer has solid firm, 304 stainless steel inter-machine, 304 stainless steel protection jacket with optional air purge and water cooling functions. It uses the manual adjustable focal length, achromatic lens, high reliability circuit design (low temperature drift, full digital measurement design, high integration SOC chip application, visualize OLED operation interface) and software design (ambient temperature compensation, real-time signal processing, abnormal signal processing, software code optimization in all kinds of application environment ).These special designs enable the STRONG series of one-color industrial pyrometer to meet the use in a variety of harsh industrial field and precise temperature control requirements.
STRONG series 1-color pyrometer determine the object temperature by receiving the sum of the narrow-band radiation energy emitted by the object. It uses advanced software and hardware design, with ultra-wide dynamic range and high stability. Special design of the one color infrared pyrometer allows infrared thermometer accuracy within ±0.5%T℃ when site environemnt is good.
The low temperature pyrometer can be widely used in metallurgical industry (wire rod, hot rolled plate, forging) and forging industry, heat treatment (heat treatment ir pyrometer) , induction heating, single crystal silicon, polycrystalline silicon and various occasions of industrial temperature measurement.
Measuring range：3500℃～3000℃
Detector：InGaAs
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
| Model |
STRONG-G-3530 |
|
Measuring Range |
350℃～2200℃ |
|
Detector |
InGaAs |
|
Wavelength |
（1.45～2.1）μm |
| Applications |
High accuracy and High cost performance monochrome pyrometer applied to temperature measurement in the various industries.such as: inductioin heating,heat treatment, Galvanized wire ,also suitable for temperature measurement in a good environment. |
| Distance coefficients |
100：1 |
|
Focal length |
Standard：0.35m adjustable to infinity， Near focus distance：0.2m～0.5m |
|
Accuracy |
±0.5%T℃（T is measured temperature） |
|
Resolution |
0.1℃ |
|
Repeat Accuracy |
±2℃ |
|
Calibration coefficient |
0.100～1.000, Adjustable in 0.001 increments |
|
Response time |
Fasted: 5ms，adjustable in 5ms-99.99s |
|
Display mode |
Industrial-grade self-luminous OLED display screen (default) or visual eyepiece aiming |
|
Aiming method |
Visual green spot (default) or eyepiece aiming, alternative |
|
IP Rating |
IP65 |
