Our company:
Ningbo Langsun Tungsten carbide Co., Ltd. is a company specializing in the production of tungsten carbide bushings, nozzles, brazing parts, sealing rings, and other machining technologies. The factory has the most advanced machining technologies for producing these products, and most of the final products are exported to North America or Europe.
Material composition:
Tungsten carbide material specification
|
Grade |
Binder (Wt %)Cobalt |
Density (g/cm3) |
Hardness (HRA) |
TRS (>N/mm²) |
Grain Size(μm) |
|
YG6 |
5.8-6.3 |
14.6-15.0 |
89.5-91 |
1800 |
0.8-2.0 |
|
YG6X |
5.8-6.3 |
14.4-14.7 |
90.5-91.5 |
1650 |
0.6-1.0 |
|
YG8 |
7.5-8.2 |
14.4-14.7 |
89.0-90.5 |
2200 |
1.0-1.5 |
|
YG11 |
11.0-11.5 |
14.2-14.4 |
87.0-88.5 |
2800 |
1.0-2.0 |
|
YG11C |
11.0-11.5 |
14.2-14.4 |
86.0-88.0 |
3000 |
1.0-2.5 |
|
YG15 |
14.5-15 |
13.9-14.0 |
86.0-88.0 |
3300 |
1.0-2.0 |
|
YG20 |
20.0-20.5 |
13.2-13.5 |
84.0-85.0 |
3400 |
1.0-2.0 |
|
YG20C |
20.0-20.5 |
13.2-13.5 |
83.0-85.0 |
3600 |
1.0-2.5 |
|
K05VF |
4.5-5.0 |
14.6-15.0 |
92.5-93.0 |
1500 |
0.6-1.0 |
|
K10VF |
5.5-6.2 |
14.5-14.7 |
91.5-92.5 |
1550 |
0.6-1.0 |
|
K20VF |
7.5-8.0 |
14.5-14.7 |
90.5-91.5 |
1800 |
0.6-1.0 |
Value:

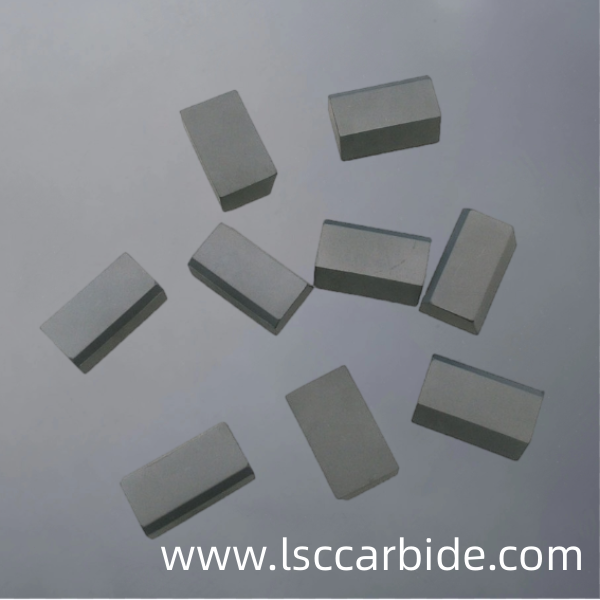

Brazing Tungsten Carbide gain from their superb high-temperature resistance and are usually mounted inside huge equipment as a result of the tiny call in between the equipment inside and the outdoors, making it hard to dissipate warmth. Brazed Tool Bit has solid warmth resistance and will certainly not have a substantial influence on their efficiency in severe workplace.
Highlights:
1. Superb solidity and toughness
2. Lower friction with precise processing
3. Extremely Ultra abrasion and wear resistance
4. Longer service life
Advantages:
If the Carbide Brazed Parts is to be maintained devoid of leak threat after welding, it is essential to open up the welding door throughout welding to equally warm both ends, so make certain securing after cooling down. In our firm, these procedures are connected and managed by specialists in brazing modern technology and tungsten carbide study, making certain outright items top quality.
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
ORIFICE RINGS AND BOTTOM SLEEVES,
TUNGSTEN CARBIDE SEAL RINGS,
TUNGSTEN CARBIDE VALVE AND SEAT ,
TUNGSTEN CARBIDE NOZZLE,
CARBIDE CENTRIFUGE TILES,
CARBIDE WEAR PARTS
