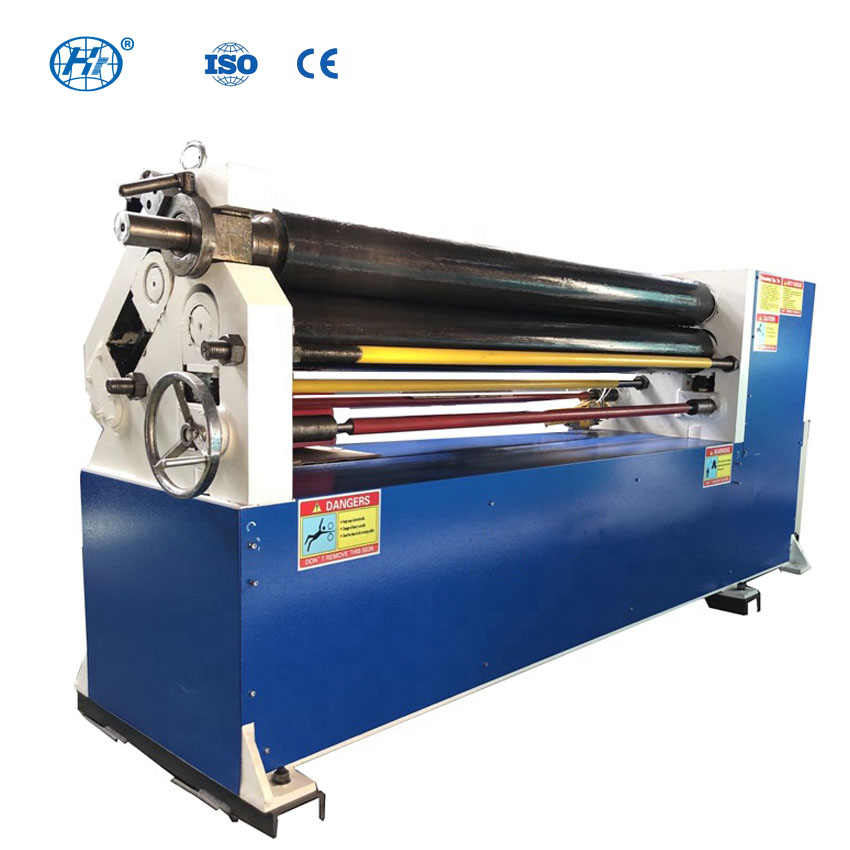

W11F Asymmetrical Mechanical Bending Machine
Product Description
The structure style of this machine is 3 roller asymmetrical. Top roller and bottom roller are all main drive roller.
The bottom roller lifting up and down to clamp the plate tight. Through the meshing between top roller gear and bottom roller gear to drive the top roller.
The side roller move titling to pre-bend the plate and circle. It’s compact and easy operate and maintain.
Part of the products' parameters are shown below. For more models, please contact us.
|
Model |
Max. Plate thickness (mm) |
Max. Bending Width (mm) |
Yield Limit (Mpa) |
Coiling Speed (m/min) |
Top roller Diameter (mm) |
Bottom roller Diameter (mm) |
Side roller diameter (mm) |
Main Motor Power (KW) |
|
W11F-2X1000 |
2 |
1000 |
245 |
2 |
110 |
110 |
110 |
2.2 |
|
W11F-2X1500 |
2 |
1500 |
245 |
2 |
120 |
120 |
120 |
2.2 |
|
W11F-2X2000 |
2 |
2000 |
245 |
2 |
130 |
130 |
130 |
2.2 |
|
W11F-3X1000 |
3 |
1000 |
245 |
3 |
120 |
120 |
120 |
2.2 |
|
W11F-3X1500 |
3 |
1500 |
245 |
3 |
130 |
130 |
130 |
2.2 |
|
W11F-4X1000 |
4 |
1000 |
245 |
4 |
130 |
130 |
130 |
2.2 |
|
W11F-4X1500 |
4 |
1500 |
245 |
4 |
135 |
135 |
135 |
3 |
|
W11F-4X2000 |
4 |
2000 |
245 |
4 |
150 |
150 |
150 |
4 |
|
W11F-6X1000 |
6 |
1000 |
245 |
6 |
140 |
140 |
140 |
3 |
|
W11F-6X1500 |
6 |
1500 |
245 |
6 |
150 |
150 |
150 |
4 |
|
W11F-6X2000 |
6 |
2000 |
245 |
6 |
170 |
170 |
170 |
5.5 |
*Because of the constantly updating, parameters shown in this chart are subject to change without prior notice.
