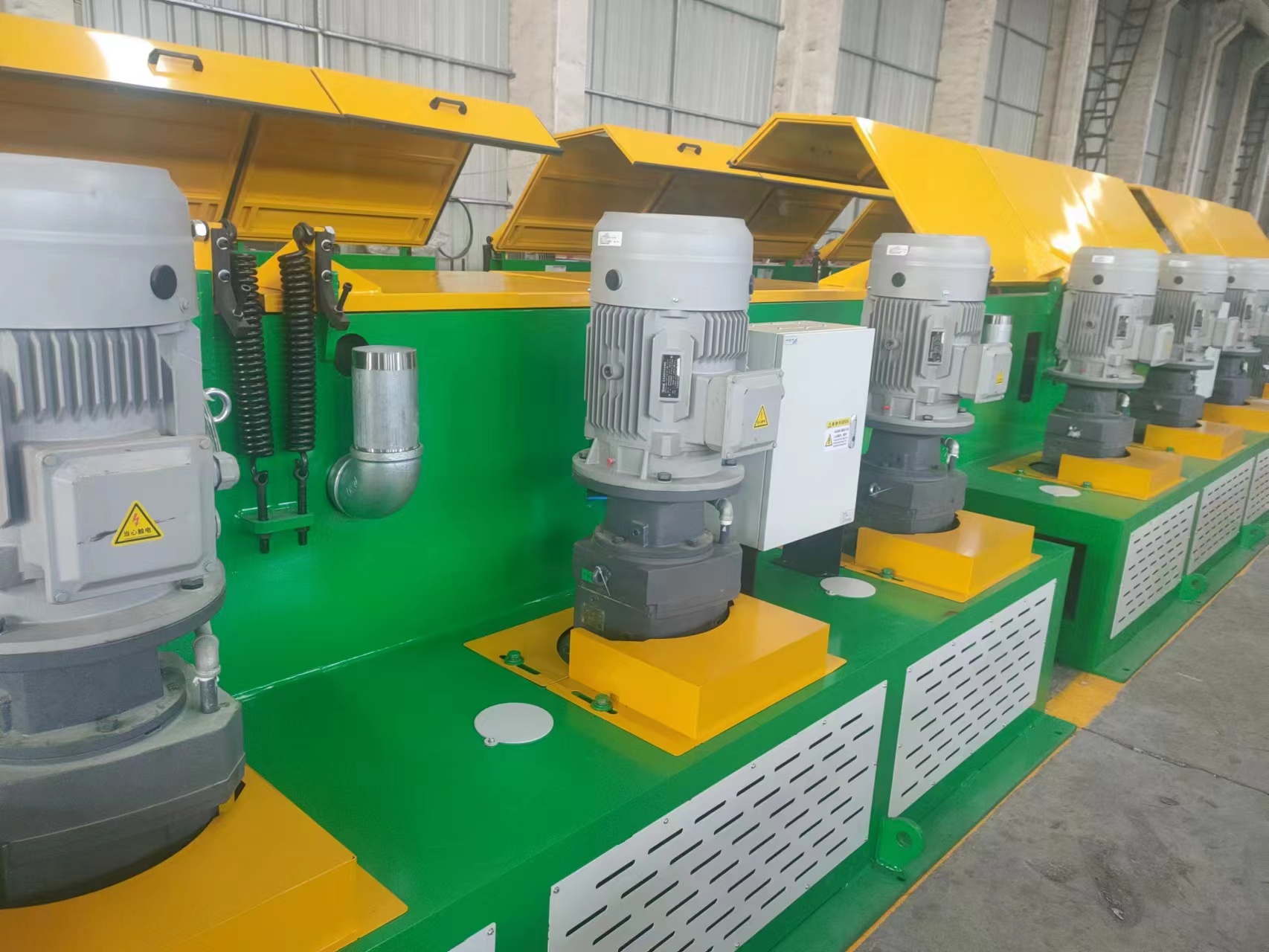

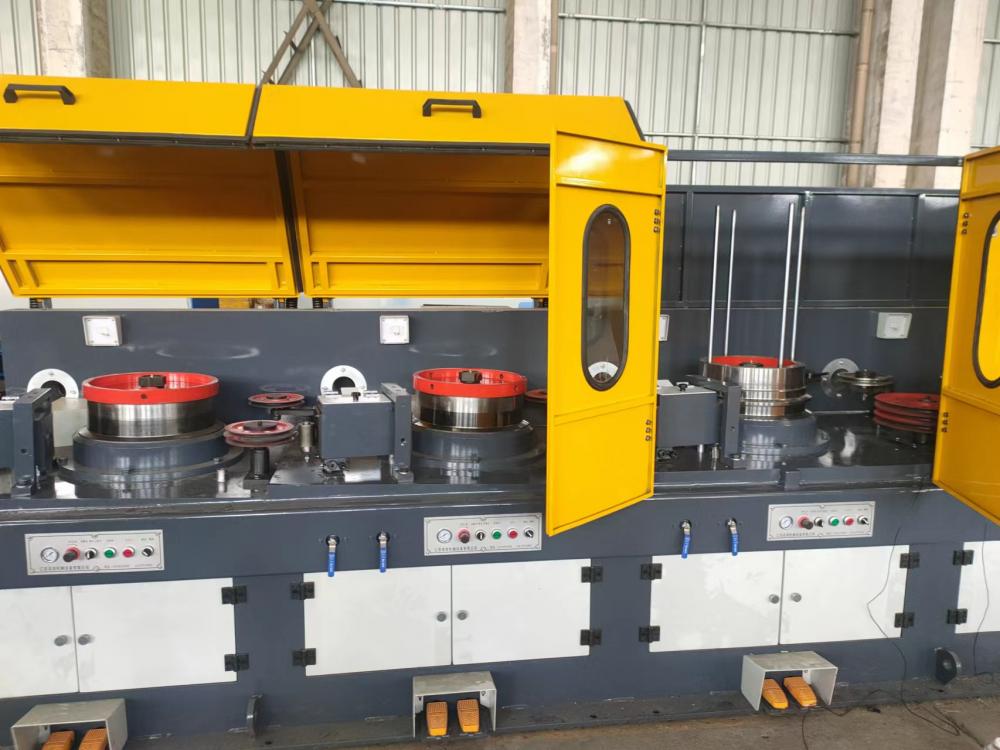

LZ7/560 straight drawing unit performance parameters
Product name: LZ7/560 straight drawing machine
2 equipment:
(1) vertical pay-off stand
(2) Film coating+dryer machine
(3) LZ7/560 straight line drawing machines
(4) Wiping machine
(5) Water washing machine
(3) SG800 spool take-up machine
(4) man-machine interface screen
(5) One set of control cabinets
3 work scope: (1) inlet diameter: 6.5mm
(2) inlet line intensity: ≦ 800Mpa
(3) material: stainless steel wire 410, etc
(4) outlet 1.8 mm in diameter.
Pay off machine
(1) Capable of carrying a weight of over 2.5 tons of wire.
(2) Equipped with reliable emergency stop switches for disorderly wiring.
(3) The inlet speed is consistent with the speed of the LZ8/560 linear wire drawing machine
1) The continuous coating tank is composed of a coating liquid heating tank, a coating working tank, a five wheel straightening mechanism, a blowing and zigzag wheel mechanism, and an electric control part. Its main technical parameters include:
① Specification: Appearance (length × wide × High) 3500 × seven hundred × one thousand and seven hundred
② Volume: 0.95m ³
③ Design power: 60KW
④ Electric heating element: Tubular heating tube for liquids.
⑤ Usage temperature:<100 ℃, it takes 110 minutes to rise from room temperature to 95 ℃.
⑥ Temperature control method: automatic temperature control.
⑦ Coating method: The coating liquid is automatically stirred and recycled. The wire travels in a closed stainless steel pipe, and an air blowing device (provided by compressed air users) is installed at the outlet. The effective coating length is 2 meters.
Production materials: The heating tank and coating tank are made of stainless steel, and the insulation layer is made of medium temperature cotton.
2) The continuous speed drying box is composed of a drying box, a wire passing wheel group, an air heating and drying mechanism, and electrical control. Its main technical parameters include:
① Specification: Appearance (length × wide × High) 2950 × five hundred and eighty × 1700, space inside heating zone: 0.2 m ³
② Design power: 30KW
③ Electric heating element: air heating tube.
④ Usage temperature: ≤ 150 ℃, it takes 15 minutes to rise from room temperature to 100 ℃.
⑤ Temperature control method: automatic temperature control.
⑥ Air supply method: A 2.2KW fan is used for air supply.
⑦ Adopting a horizontal surround structure and heated by hot air blowing, the effective drying length is 18 meters, and the entire drying box is insulated with medium temperature cotton.
4 drawing speed: (1) the highest speed: 6-10 meters per second (2)normal 8-9meters/SEC speed
5 (1) water vapor pressure > 0.2 Mpa
(2) pressure > 0.5 Mpa
6 motor specification: (1) the drawing machine 30KW: AC general motors
(2) take-up machine: 15KW ordinary ac motor
7. Drum forms: (1) : 600mm reel diameter
(2) matrix of 45 steel drum materials, do surface spraying tungsten alloy, hardness HRC60 or above, the surface roughness HRC60 3.2 Ra. above
(3) drum life-span 10000 hours ,a year since slot free replacement, wear and tear
8. Drum by cooling: internal, slit type water-cooling
(drum outside: drying, can use sirocco for passing wire conveniently)
9 frame form: (1) the main frame is steel structure welding
(2) frame owns water, Electric Gas meter before operation panel. with emergency braking and on.
(3)the colour is paint blue, or according to the customer request
10.The mould(dies) box form: (1) the mold box is divided into cavities of cooling and lubrication using rough die sleeve to fix the model (pressure die)
(2) mold size: by users
(3) box can be universal adjustment
11 attune type: roller adopts pneumatic cylinders control, attune angular sensor adopts imported from Germany TURCK non-contact sensor
12. The driving type: LZ7/560 all-gear box transmission
We can make wire drawing machine,flux cored forming machine,drum packing machine,take up machine,pay off machine,layer winding machine,drum packing machine,welding wire production machine,wet wire drawing machine.stainless steel annealing furnace,pointing machine,take up machine,butt welding machine and so on.
