1. 3D Drawing and HyperMesh & Ansys
Fully utilize physical property, support higher performance, reducing operating cost
2. ADR standard API Adaptor
Crucial to any API bottom loading system, match 3″ or 4″ couplers
3. API Sockets Optic
Support bottom loading system
4. ADR standard Manhole with vapor vent
16″ or 20″, Aluminum material for a longer lifetime
5. More safety by 7%Lower center gravity Gooseneck design
6. 12% Larger volume by semi-elliptical section barrel design
7. Long service life by tanker automatic arc welding
|
Type |

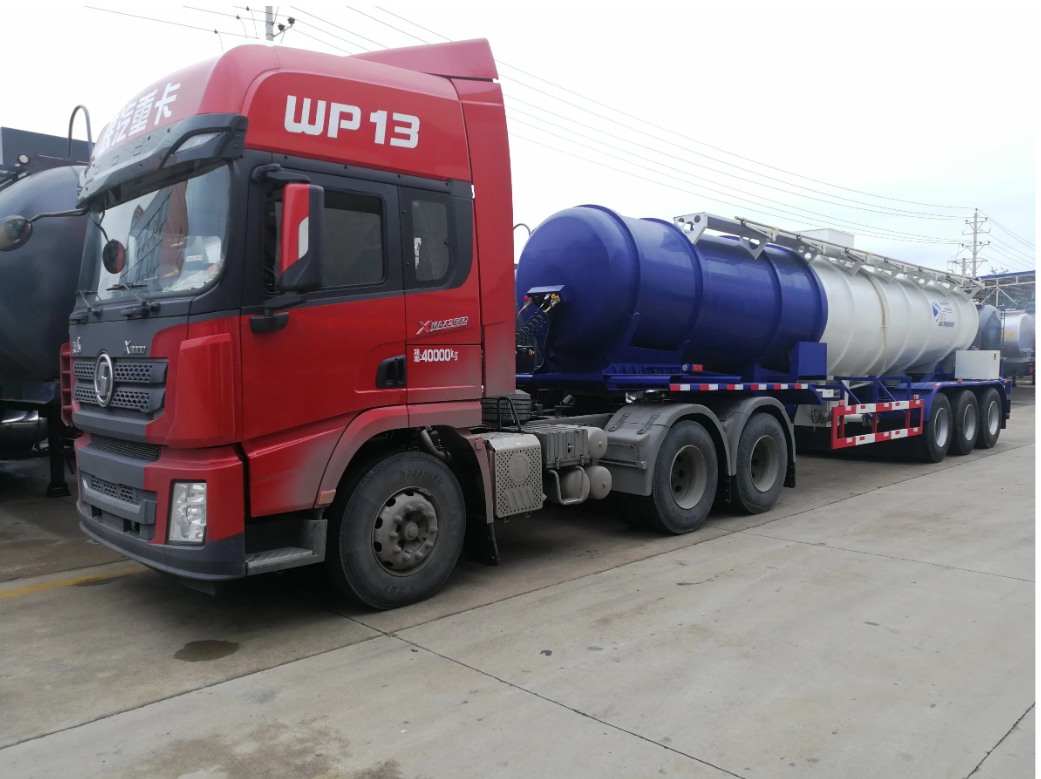

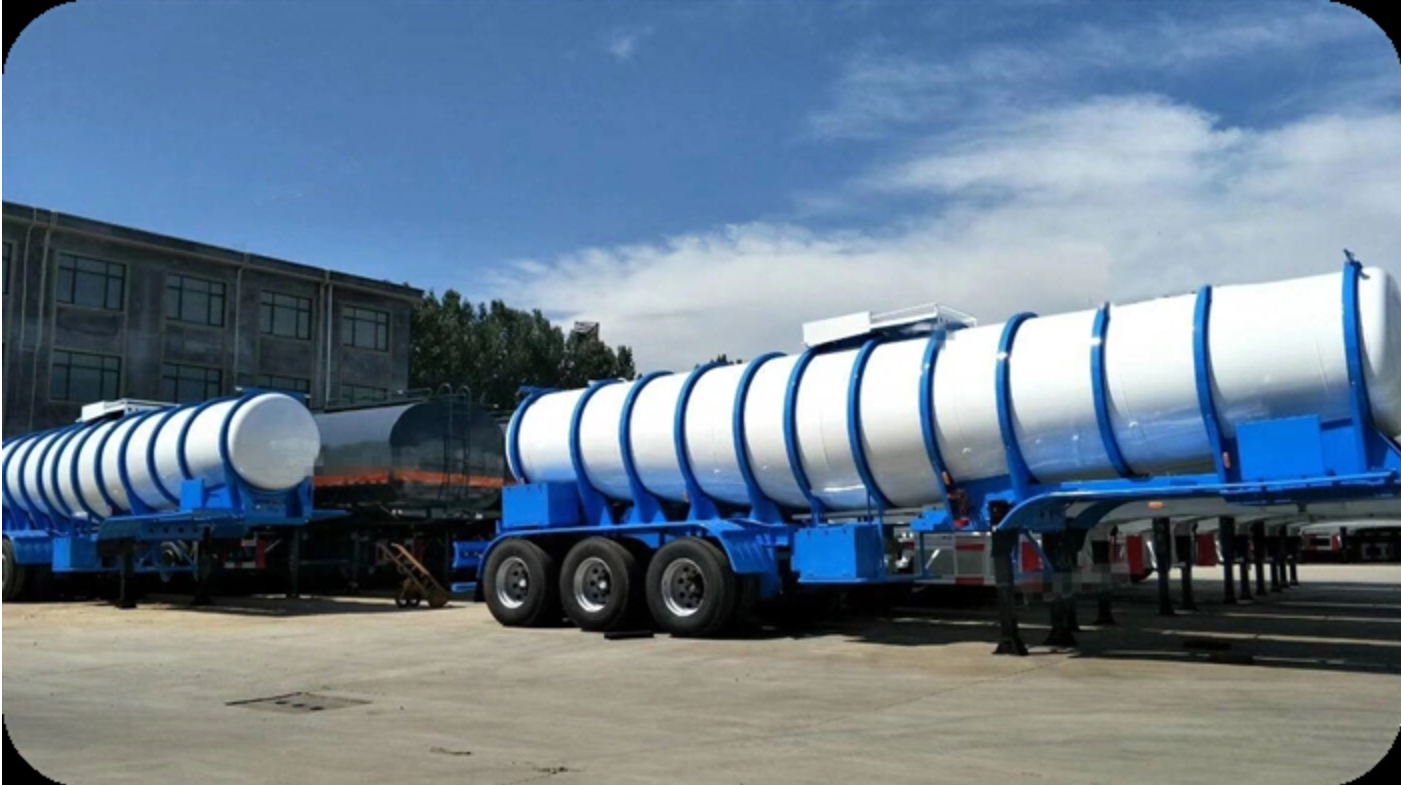

Chemical Liquid Acid Tanker Trailer |
|
Overall Dimension |
12500mm*2500*3950mm |
|
Tank Capacity |
45,000L, 3 compartments |
|
Total Volume(m3) |
45 |
|
Tank Body |
The tanker body made of 5 mm steel plate, the foreside head and back side head made of 6 mm steel plate, The shape is Elliptical Or Square. Material is Stainless Steel SS316L. |
|
Suspension |
Tri-axle 10-pcs leaf spring suspension with equalizer beam |
|
Tires |
315/80R22.5, tubeless tires, 12 pieces |
|
Axles |
3 axles, 13T capacity/axle, Fuwa, BPW, or Chinese famous brand |
|
Brakes |
Dual lines pneumatic brake system, parking brake |
|
Under Frame |
|
|
Main Beam |
I shape, Mild Alloy (Q345) by Automatic submerged arc welding. The height of the beam is 500 mm, upper plate is 14 mm, down plate is 16 mm, middle plate is 8 mm |
|
Cross Beam |
Mild Alloy Q235B, 14# channel beam |
|
King Pin |
90#(3.5'') or 50# (2.0''), JOST Brand |
|
Landing Gear |
Static capacity 28 Tons |
|
Flatbed Floor |
Checkered sheet, thickness 5 mm |
|
Rear Ladders |
Spring power-assisted |
|
Electrical & Paint |
|
|
Lights & Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
Wiring |
24V, 6 lines |
|
Others |
|
|
Tool box |
1 piece |
|
Spare tires carrier |
1 piece |
|
Color |
Optional (White, Blue, Yellow, Green...) |
If you are interested in the product, contact 2bvideo.com for more information for more information
