Knorr-Bremse Type Solenoid Valve Coil 24VDC 110VDC 14W
This is a solenoid coil commonly used in Knorr-Bremse solenoid valves, like WMV1-ZT, WMV-1/2ZG, WMV-30ZG, WMV-05NZG, etc. The standard coil voltage is 24VDC or 110VDC, the standard power is 14W, and other voltages and powers can be customized. If you have any demands, pls just contact us!

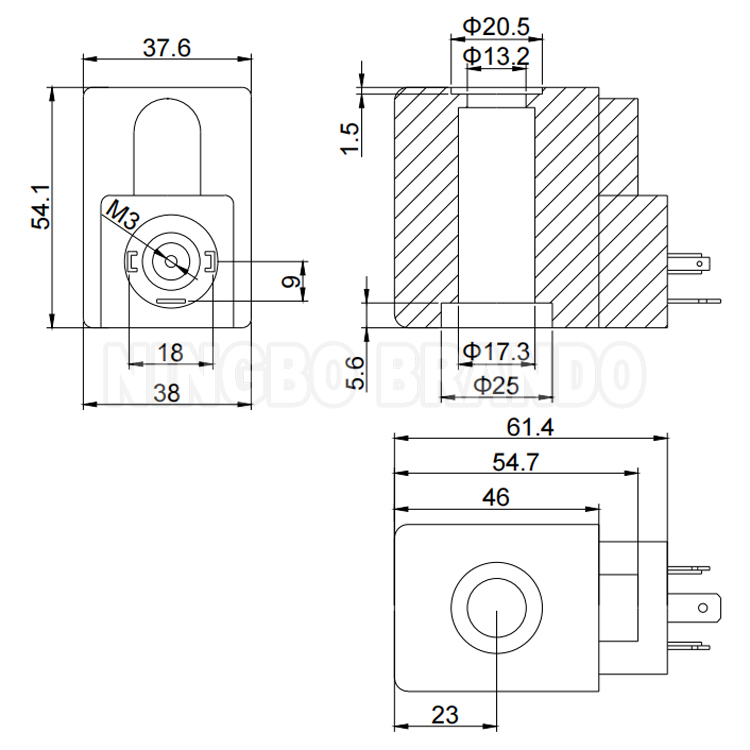

Main Dimension:
Technical Data:
|
BRANDO Model
|
BB17554020
|
|
Voltage
|
24VDC, 110VDC
|
|
Power
|
14W
|
|
Other voltage and power can be customzied
|
|
|
Connector Type
|
DIN43650A
|

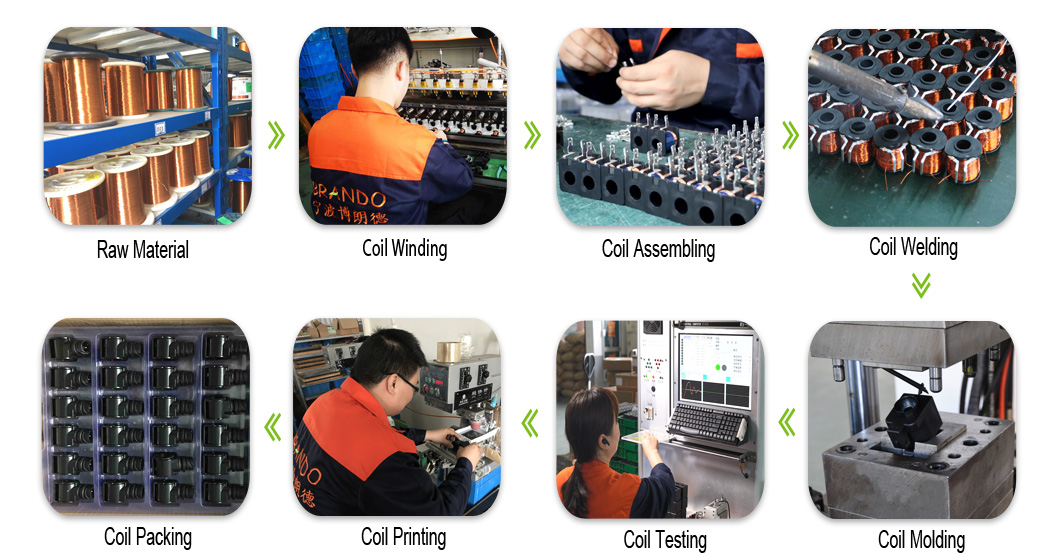

Our Production:

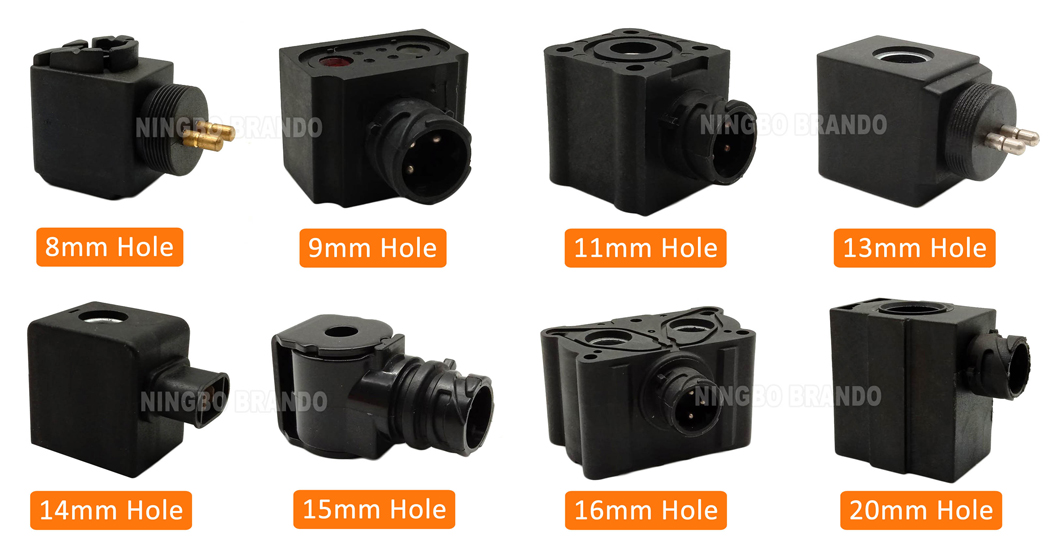

Similar Coils:
FAQ: How to choose a matching solenoid coil?
1. Voltage: The first thing to consider is the type and size of the supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Outer diameter and height of the solenoid armature or solenoid valve coil's aperture and height.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leading type, standard interface, etc.
6. Application: Some special application areas require the use of specially designed solenoid coils. Different general applications, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
