ASCO Type 400325-142 24VDC Pulse Valve Coil
Electromagnetic pulse valve, also called diaphragm valve acts as a “switch” for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.

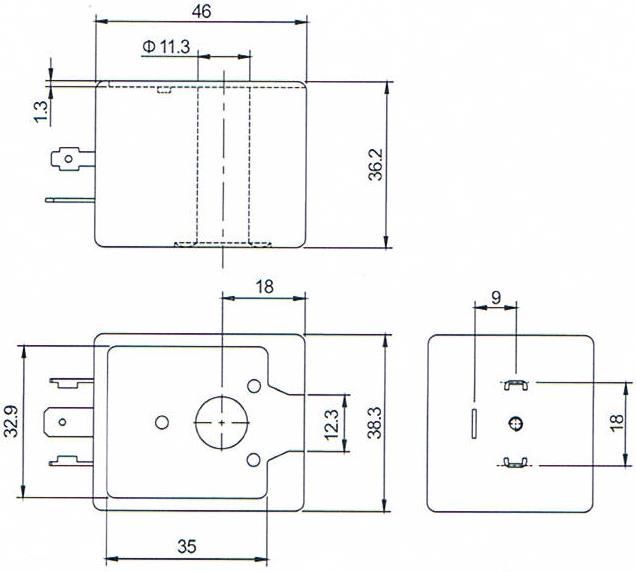

Main Dimension of 400325-142 ASCO Type Pulse Valve Coil:
Product Characteristic:
Focus on your demands, Offer you best solution:
Hole Size: 11mm
Height: 36mm
Width: 38.5mm
Voltage: 24V DC
Power: 24VA, 21W
Connection: DIN43650A
Insulation Class: H
Enameled Wire Material: Copper
Suitable Valve Number: SCG353A043, SCG353A044, SCG353A052, SCG353A053
Technical Data:
Model number
BB11036001
Ref number
400325642, 400325101, 400325118
Normal voltage
AC110V, AC220V, DC12V, DC24V (Other can be customized)
Normal power
AC:20VA, DC: 21Watt
Material
BMC, Brass
Wire class
H
Connection
DIN43650A
Application
ASCO SCG353A043, SCG353053 Pulse Valve
Hole diameter
11 mm
Height
36 mm
Width
38.5 mm
Valve Model
Repair Kits
Solenoid Coils
AC
DC
24VDC
24 VAC
110VAC
220VAC
SCG353A043
C113444
C113444
400325642
400325101
400325118
400325118
ACG353AD44
C113444
C113444
400325642
400325101
400325118
400325118
ACG353052
C113444
C113444
400325642
400325101
400325118
400325118
SCG353053
C113444
C113444
400325642
400325101
400325118
400325118
SCG353AD47
C113827
C113827
400425342
400425101
400425118
400425117
SCG353050
C113685
C113686
400425342
400425101
400425118
400425117
SCG353051
C113685
C113686
400425342
400425101
400425118
400425117
SCG353060
C123432
C123433
400425342
400425101
400425118
400425117
SCG353AD65
C113827
C113827
400425342
400425101
400425118
400425117
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.
