DC Servo motor KY130AS0430-15B with brake encoder

2 year ago
54 0
Product details

                                                     130mm 48v 3kw BLDC Servo motor with brake

                                                                                      KY130AS0430-15B

It has been widely used for many applications, eg., Automatic Guided Vehicle,smart self driving robot vehicle platforms/kits,caterpillar lifting platform,

Fire fighting Robot etc. It has better performances than other traditional dc motors.

Our products include Brushless DC Motor and Brushless Motor Driver, ranging from low voltage (12V) to high voltage (48V), hundreds rpm to thirty hundreds rpm, several watts to thousands watts, sensor or sensorless, high power density and high efficiency. Many types of our products are custom-made.


Specification

Rated voltage 48V
Rated power 3000W
Rated current 73A
Rated speed 2500rpm
Rated torque 19.1N.m
Peak torque 57N.m
Motor shaft diameter 28mm
Motor length 273mm
Encoder 2500ppr, optical
Brake 24v
Weight
14.1kg

Connect Cable
130mm 48v 3kw BLDC Servo motor with brake

Speed Torque Curves

48v 3kw Brushless Dc Motor

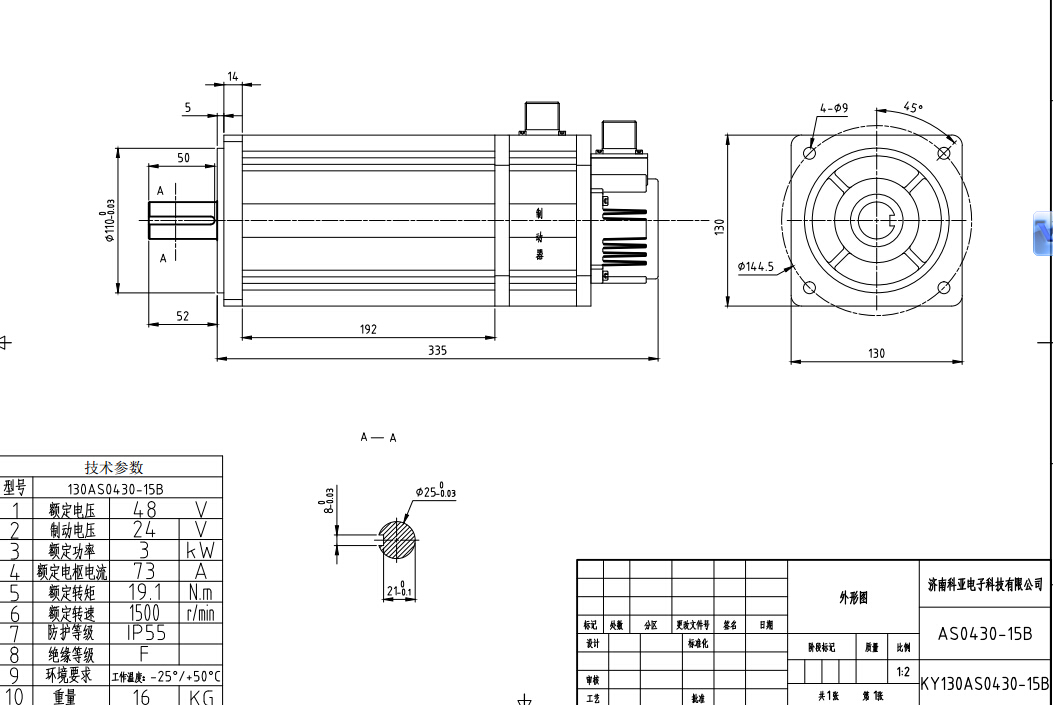

Drawing

3kw Brushless Dc Motor with Encoder


Product Usage

The 130 frame bldc motor close loop 3kw 48v be widely used in mobile robot, for example, crawler robot chassis, inspection robot,

automatic guided vehicle, fire fighting robot, self-guided vehicle.

48v Brushless Dc Motor with Encoder
