A electric steering motor 5

4 year ago
82 0
Product details

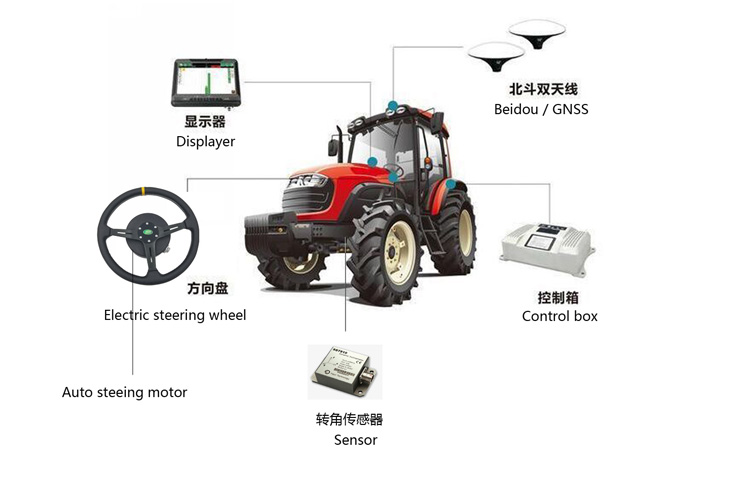

The development of automated autopilot steering motor for driverless tractor was mainly targeted at precision agricultural machinery. It can complete agricultural machinery operations, achieve precise positioning, improve agricultural productivity, effectively use agricultural resources, and protect the ecological environment.

automated autopilot steering motor for driverless tractor

Service temperature: - 25-55 ℃ (subject to ambient temperature);

Storage temperature: - 35-65 ℃ (subject to ambient temperature);

humidity: 5% - 90% RH, with condensation (25 ℃)

Protection grade: IP55, positive rain;

Insulation performance: input to casing DC600V, leakage current 0.07ma. The insulation resistance is more than 20 m Ω.

Three prevention requirements: meet the three prevention requirements (dustproof, moisture-proof and salt fog proof).

Vibration requirements: frequency 5Hz ~ 25Hz, amplitude 3mm, 0.09g 25Hz ~ 200Hz, amplitude 1.47mm, 116g. 30min horizontally, vertically and longitudinally.

Cooling mode: natural cooling

Specification

Rated voltage: 12V, 24V, adjustable

Rated current: 10A

Rated speed: 80rpm, 100rpm, adjustable

Rated toque: 7N.m

Peak torque: 16N.m

Working mode: Speed mode, position mode;
feedback element: Incremental encoder (conventional product), absolute value encoder;

Control signal: RS232, CAN2.0

Software for the motor: Yes

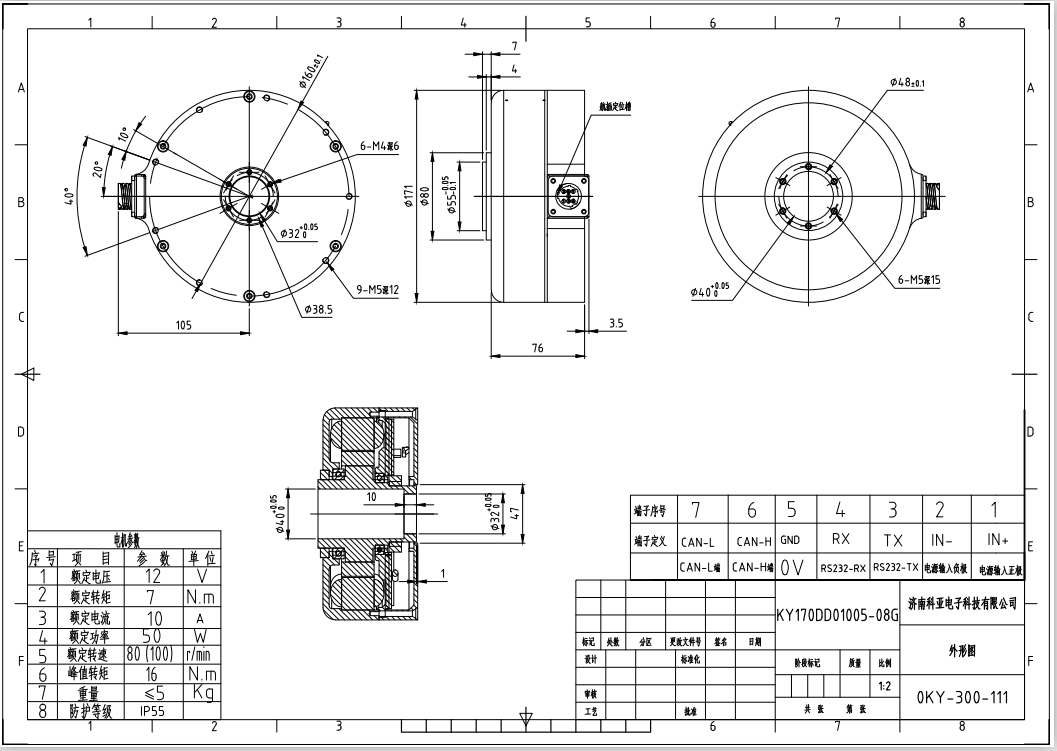

Drawing


MOTOR DRAWING

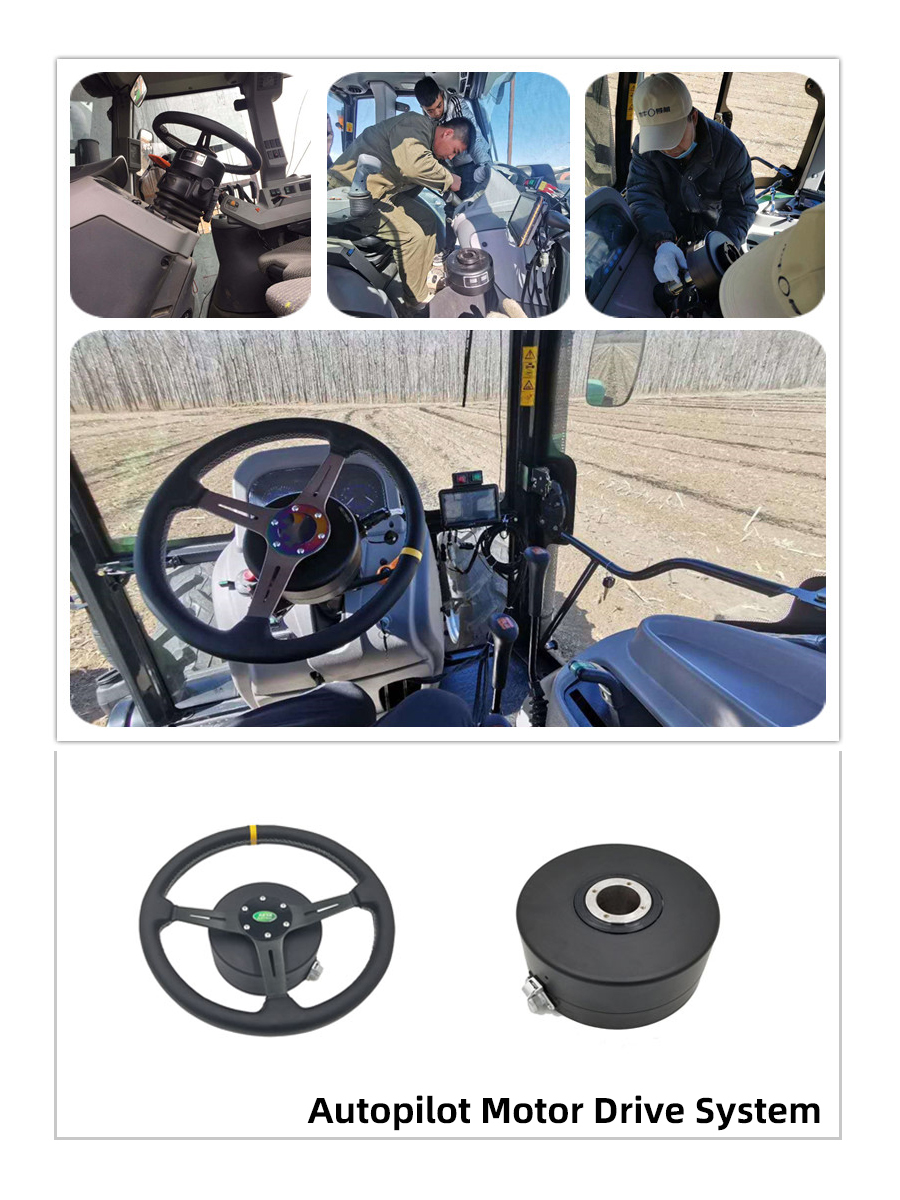

Product Usage

750

Autopilot Motor
