Twin-Pump Cementing Unit and Truck-Mounted Cementing Unit

Youlong cementing equipment can meet the needs of different operation areas and adapt to extreme cold, extreme heat and other harsh environments. It is equipped with professional data acquisition system and can customize manual or automatic operation mode for customers.

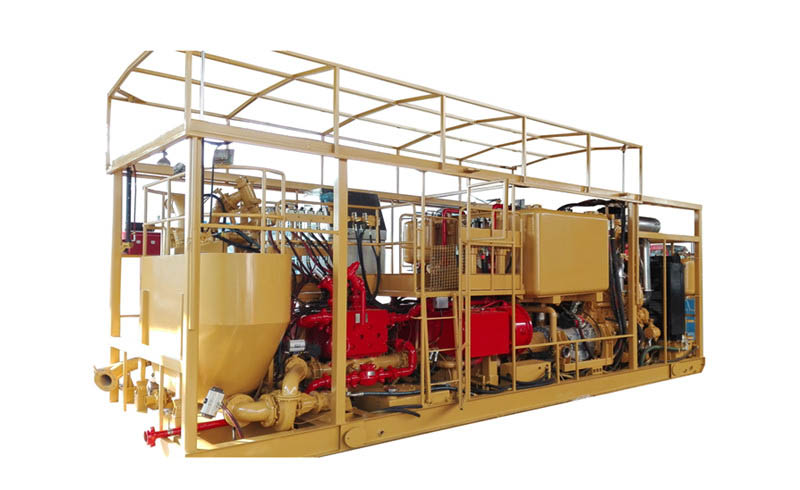

Twin Pump Cementing Unit

Characteristics and features

▲All-weather cementing unit is applicable to various operation conditions such as onshore, offshore, desert, and arctic or extremely hot conditions;

▲Professional data acquisition system to realize real-time recording, analysis and storage of cementing truck operation data;

▲The operation is simple, easy to learn and understand.The operation interface and function keys are suitable for oilfield operation habits.

▲The ash regulating valve is adjusted by the ram with eccentric valve core structure to prevent ash jamming. The opening of the valve port conforms to the linear regulation, which can be adjusted quickly and accurately under the control of precision hydraulic cylinder.

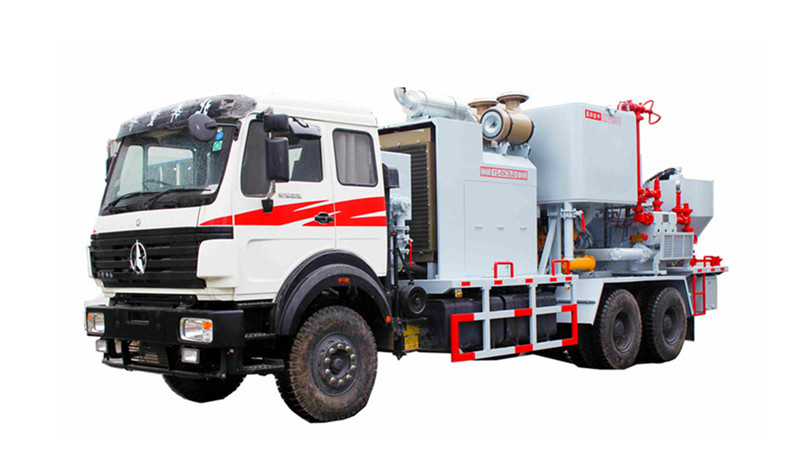

Truck Mounted Cementing Unit1

Specifications and parameters

Model	GJC(Q)40-17	GJC(Q)45-21	GJC/Q70-13	GJC(Q)70-33
Carrier	Truck / Trailer / Skid
Chassis	BEIBEN/BENZ/MAN
Engine	DDC60/CAT/CUMMINS
Transmission	KAIXING BY400/ALLISON 4700SOFS
Plunger Pump	300	600		600(2sets)
Plunger Dia.	5”	4.5”	3.5”	3.5”+4.5”
Max. Working Pressure	40MPa	43.4Mpa	70Mpa	70Mpa
Max. Working Flowrate	1.7m³/min	2.1m³/min	1.3m³/min	3.3m³/min
Centrifugal Pump	Mixing Water & Water Supply Pump: 4×3×13; Recirculating & Boosting Pump: 6×5×11
Displacement Tank	2×10bbl（2×2m³）
Slurry Mixing Tank	1.6m³
Slurry Density	8.3~22ppg（1~2.6g/cm³）
Max. Mixing Capacity	14.5bpm（2.3m³/min）

Twin Pump Mounted Pump Truck can be customized as per customers'.
