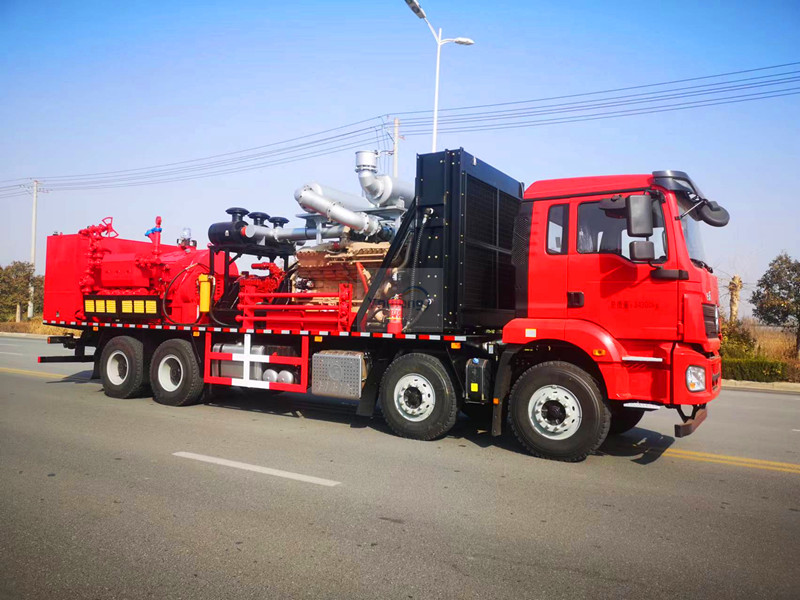

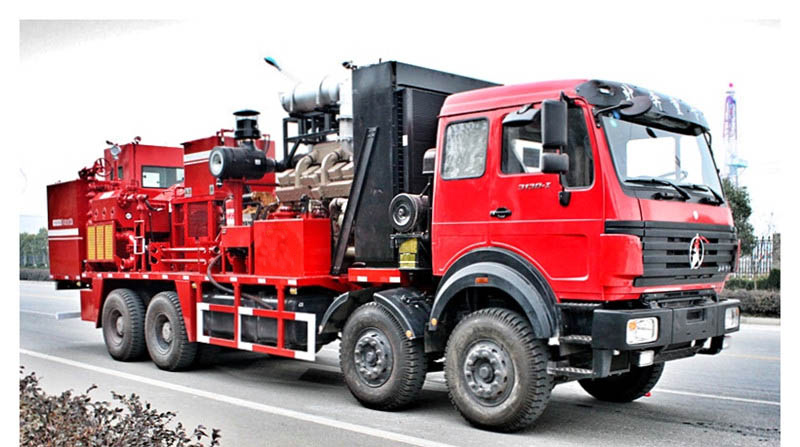

Truck mounted Fracturing Pumping Unit

Product introduction
It is a special oil vehicle refitted from automobile chassis, mainly used for oilfield water injection, welcementation, fracturing and pressure test.

Product features
Its power is provided by the diesel engine on the platform, and it is equipped with a three cylinder plungerpump with high pressure and large displacement. it has the characteristics of stable medium flow, high operation eficiency, simpleoperation system, safe and reliable operation, convenient maintenance, etc. it is an ideal equipment for oilfield fracturingoperation.

Product classification
It is classifed by drive type, including mechanical drive fracturing truck and hydraulic drive fracturing truckMechanical transmission tracturno truck uses mechanical gearbox to drive trplex plunger pump, hvdraulc transmission tracturnctruck uses hydraulic torque converter to drive triplex plunger pump. The control system can provide remote control box, overpressure alarm protection and other functions.
Of course, it can also be manufactured into a skid mounted structure to meet the needs of different user groups.

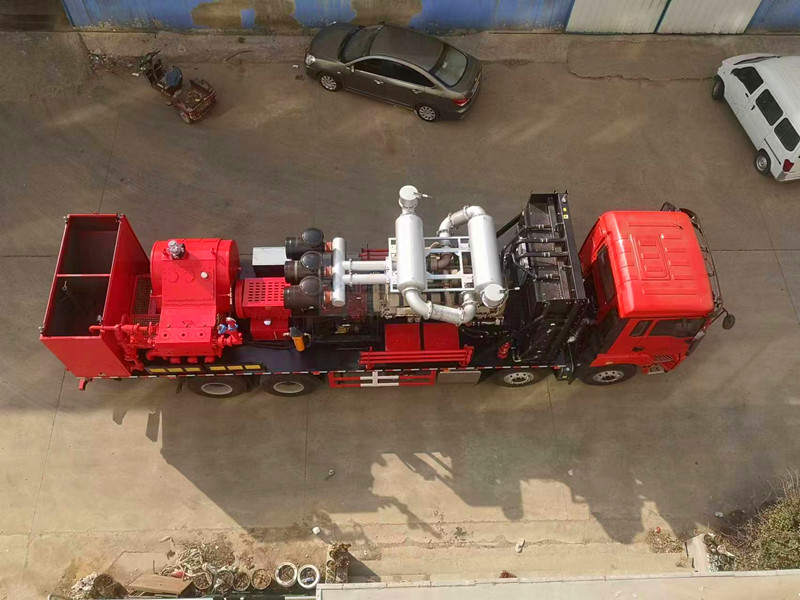

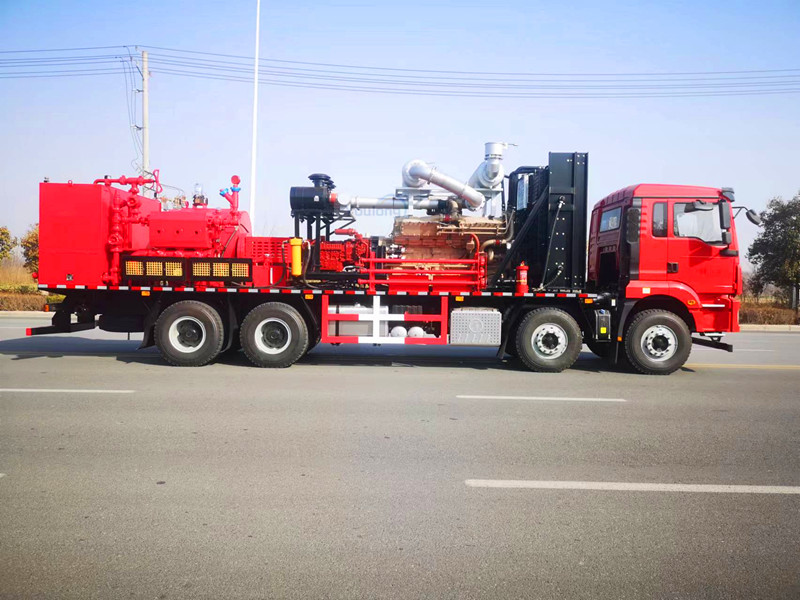

Fracturing Pumping Unit1

Fracturing equipment is the main equipment for fracturing operation, which is used to inject high-pressure and large displacement fracturing fluid into the well and squeeze proppant into the fracture. The Fracturing Truck Skid Mounted Trailer can perform stand-alone and online operations.

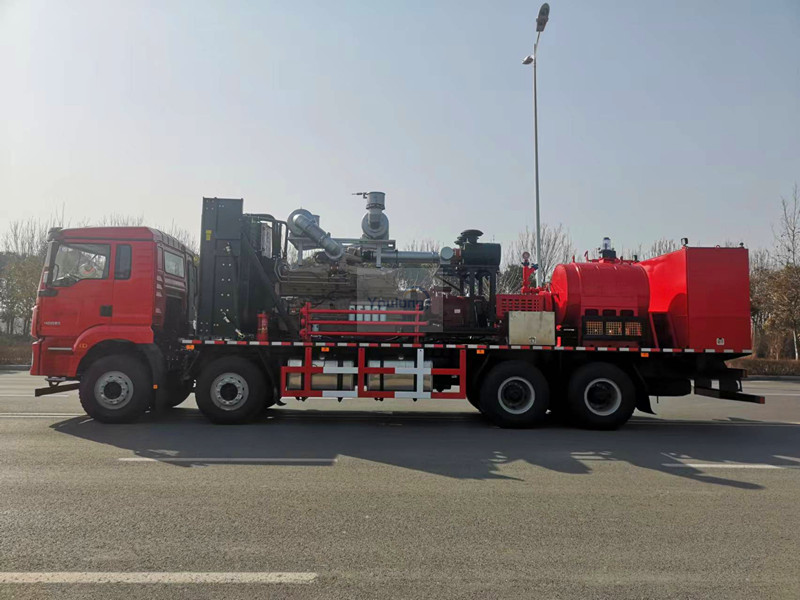

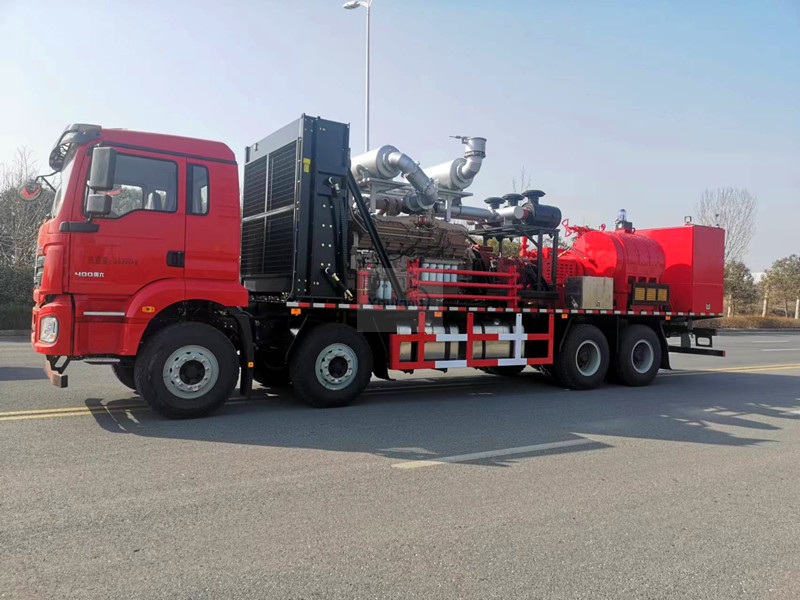

Fracturing Pumping Unit2

Characteristics and features

▲Meet the requirements of large-scale fracturing construction, shorten the construction time and reduce the construction cost;

▲Excellent compatibility satisfies fracturing operations with different fracturing fluid;

▲Intelligent pumping control system with complete job mode ensures intelligent operation;

▲Longer continuous working time, wear-resistant and highly corrosive design of vulnerable parts, and special process treatment to ensure sustainable working time;

▲It can realize the combined construction of control systems from different manufacturers

▲It is mainly used for various fracturing operations of deep wells, medium deep wells and shallow wells in oil and gas fields. It can also be used for hydraulic sand blasting, high-pressure hydraulic coal mining in coal mines, ship high-pressure hydraulic rust removal and other operations.

▲The equipment can perform stand-alone and online operations.

Specifications and parameters

Model	YL105-1400	YL105-1800	YL105-2000	YL105/140-2500A	YL140-2800
Max. Working Pressure	105Mpa	105Mpa	105Mpa	140Mpa	140Mpa
Max. Discharge Flowrate	2188L/min(5")	3099L/min(5.5")	3083L/min(5")	3124L/min(4.5")	3126L/min(4.5")
Plunger Dia.	4"/4.5"/5"	4"/4.5"/5"/5.5"	4"/4.5"/5"/5.5"	4"/4.5"/5"	3-3/4" 4"/4.5"/5"
Overall dimensions	10800×2500×3700mm	11000×2500×3700mm	10950×2500×3500mm	11200×2500×3500mm	11800×2500×4000mm
Weight	30t	31t	34t	38t	43.5t
Carrier	Truck / Trailer / Skid
Plunger Pump	KTZ1800	KTZ1800	KQZ2500	KQZ2500	KQZ2800
Chassis	SINOTRUCK/MAN/BENZ
Engine	CUMMNIS/MIT/CAT
Engine power	1400hp	2000hp	2250hp	2500hp	3000hp
Hydraulic transmission	ALLISON/KAIXING
Control system	Networked control system / local control system
Manifold system	105Mpa	105Mpa	105Mpa	140Mpa	140Mpa
Other	Overpressure protection safety device, mechanical overpressure protection

FAQ

Q1. Why choose us ?

1. Competitive price: our company is a professional supplier of Cementing and Fracturing Equipment, Gate Valve and Wellhead Christmas Tree, Plunger Pumps and Mud Pumps, Flow line Products, Solid Control Equipment, Drilling Rigs and Work over Rigs Matching Equipment etc. We have competitive prices and best resources in advanced production line and testing equipment, designed and manufactured according to certification of API, ISO, GOST, etc.

2. Fast delivery: the delivery time of all our machines is very fast, especially the popular Plunger Pumps and Mud Pumps, Flow line Products.

3. Warranty: after sales service is very important for construction machinery. Our company provides warranty for all machinery purchased from us. During the warranty period, we will accurately confirm the damaged parts in the shortest time and send the replacement parts to the customers by DHL or air freight in the most efficient way.

Q2. How can you guaranteed quality?

On the basis of more than 40 years of manufacturing experience,more than 30 years of export experience, high quality products with competitive price, better understanding in Chinese market, High quality after-sales service, we hope to establish business relations with your company.

Q3. Can you satisfy my special requirement?

As the manufacturer, Youlong will review the special requirement and recondition it as per request (if possible).

Q4. How about your technology after-service team available?

We have postgraduated engineer and repair machines team, and worked inconstructions machine area almost 20 years. We could give you service support on line on time, or send to Machinican to support on necessary.
