WS Series Horizontal Automatic Shearing Machine
Product Description
This horizontal container shearing machine is suitable for cutting metals with different cross-sectional shapes, such as round, square, trough, angle, I-shaped, plate and various cold-state waste and old structural metals. It brings convenience to the packaging, storage and transportation of scrap metal materials, and also provides qualified charge for smelters. This machine has a wide range of applications, and is often used in metal recovery devices, factory foundries and processing equipment in the machinery manufacturing industry.
Features
1. Using international imported accessories and materials, compact internal structure, high quality, high efficiency and low energy consumption;

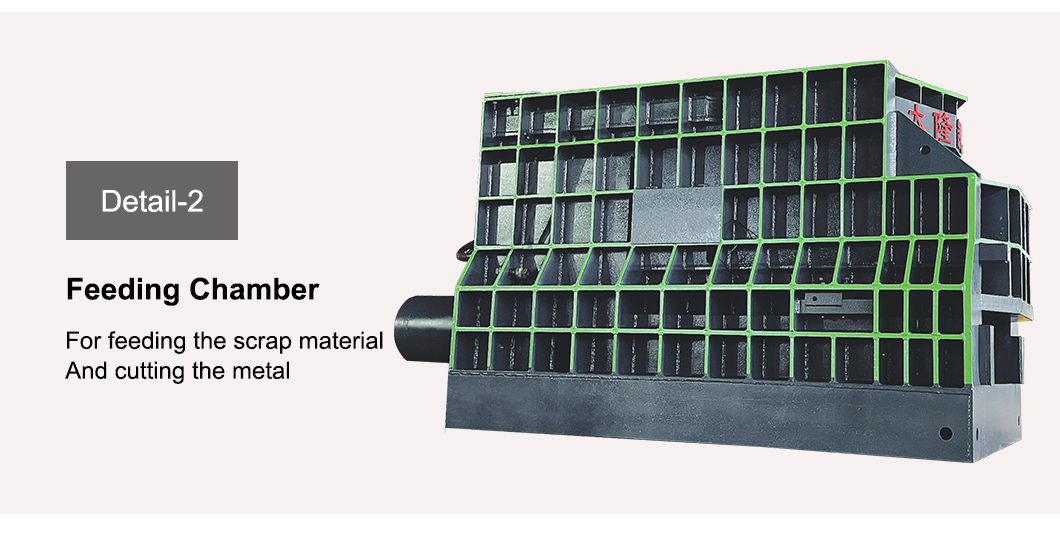

2. Fully enclosed feeding, high safety performance. Use super large feeding port to feed enough materials;
3. PLC automatic fast cutting, unmanned operation, low cost and high efficiency;
4. Low shear material restriction and wide range of material delivery. Uninterrupted feeding and continuous cutting;
5. Portable and mobile, ready to use. Reduce energy consumption and hit a new high.
Technical Parameters:
Specifications
Product Name: WS Horizontal Metal Shear
Condition: New
Application: Scrap metal
Nominal Force: 400Ton

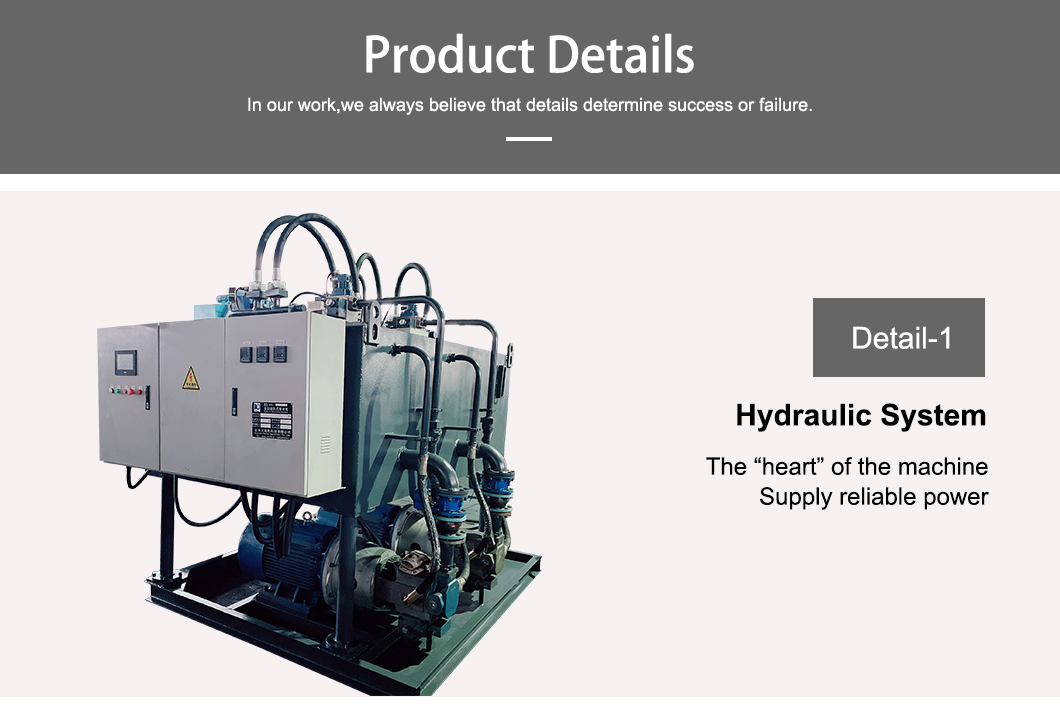

Driven Type: Hydraulic
Max. Length To Shear: 1600mm
Voltage : 21.5Mpa, Customized
Color: Customized
Automatic Grade: Automatic
Commercial Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Payment Terms: 30% T/T In Advance
Supply Ability: 5 sets /month
Delivery Time: As your requirement
Packaging Details: Seaworthy packing
After-sales Service : Engineers are available to overseas service
Model
Max Cutting Force(KN)
Blade Length(mm)
Shear Height(mm)
Power(KW)
WS-400
4000
1000
300/420
74
WS-500
5000
1400/1600
300/420
90

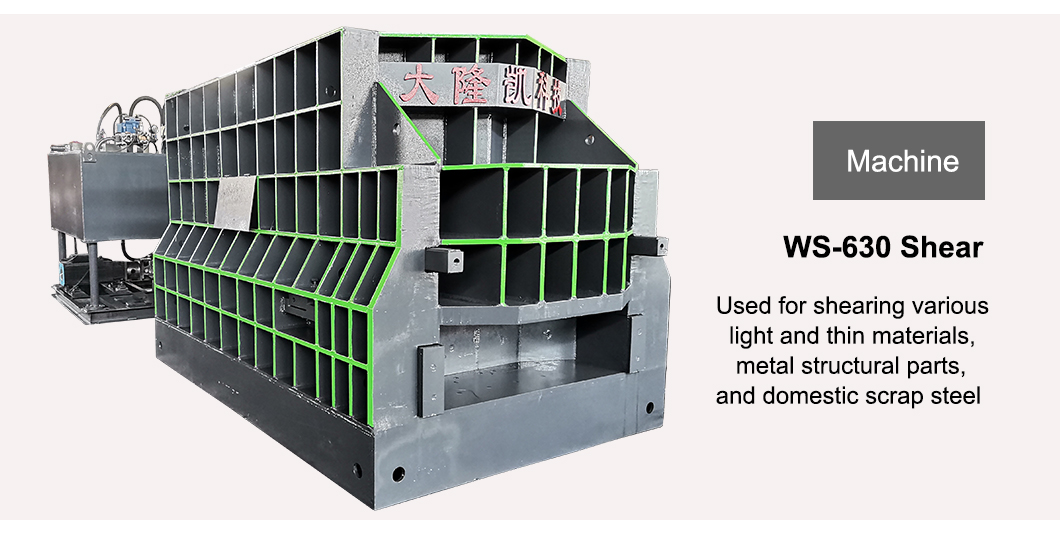

WS-630
6300
1400/1600
300/420
135
WS-800
8000
1600
420/500
180
WS-1000
10000
1600/2100
420/500
225
Applications:
Scrap shear is used for economical scrap processing. This machine has easy operation and flexible transportation with a roll on/roll off system. Various models are available.
