Solenoid air valve DQF1-6A is normal open air valve. This model have 6.0-12.0v available, usually used for wrist blood pressure monitor, medical massage care products, and household electrical appliances ect.
Product Features : Food grade safety
Low power consumption
Long lifetime
Technical Specification
|
Product model |
DQF1-6A |
|
Voltage |
DC12.0 V |
|
Current |
<60mA |
|
Max pressure |
0-350mmHg |
|
Air leakage |
Connected to a 500cc container, pressure from 0 to 280±10mmHg, After 30 seconds the reduced pressure was measured to be less than 3mmHg/min |
|
Life cycle |
>200,000 cycles (work for 10sec and stop for 5sec as a cycle ) |
|
Working temperature |
5℃~55℃ |
|
Product N.W |
17g |
|
Pump application |
Mainly used for wrist blood pressure monitor, medical massage care products, and household electrical appliances |

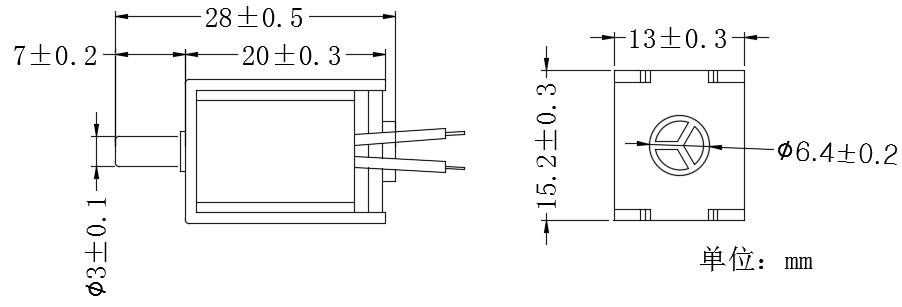

Dimension Drawing
|
Pump & Valve Application |
FAQ
1) Q: What`s your MOQ?
A: Our MOQ is 1000 PCS.
2) Q: What's the lead time of mini pumps and solenoid valves?
A: 30-35 working days
3) Q: Solenoid water valve working principle
A: 3-way valves have three port connections. One valve seal always remains open and the other closed in the de-energized mode.
When the coil is energized, the mode reverses. The 3-way valve is designed with a plunger type armature. With the coil de-
energized, a spring holds the lower core seal tightly against the valve seat and shuts off the fluid flow.
4) Q:What can you buy from us?
A:Mini Air Pump,Mini Water Pump,Solenoid Pump,Mini Piston Pump,Mini Vacuum Pump,Peristaltic Pump, Solenoid Air/Water Valve.
