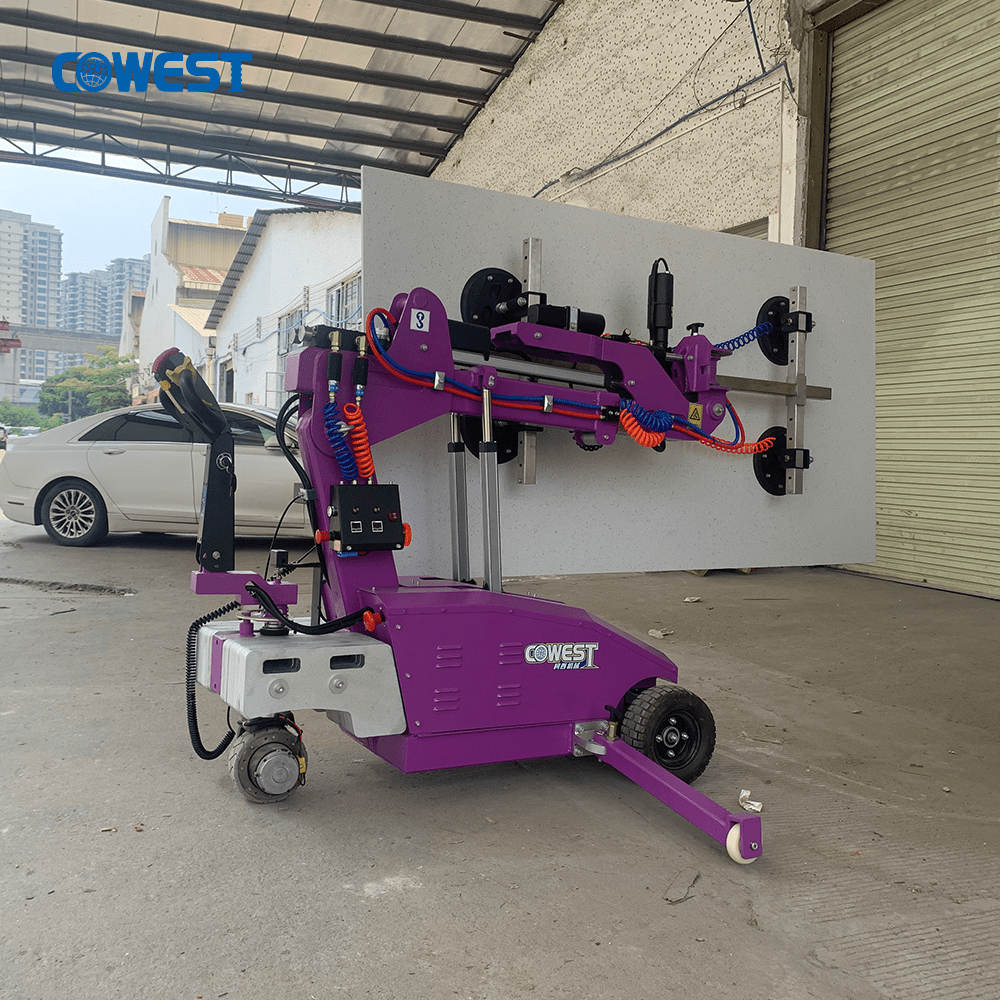

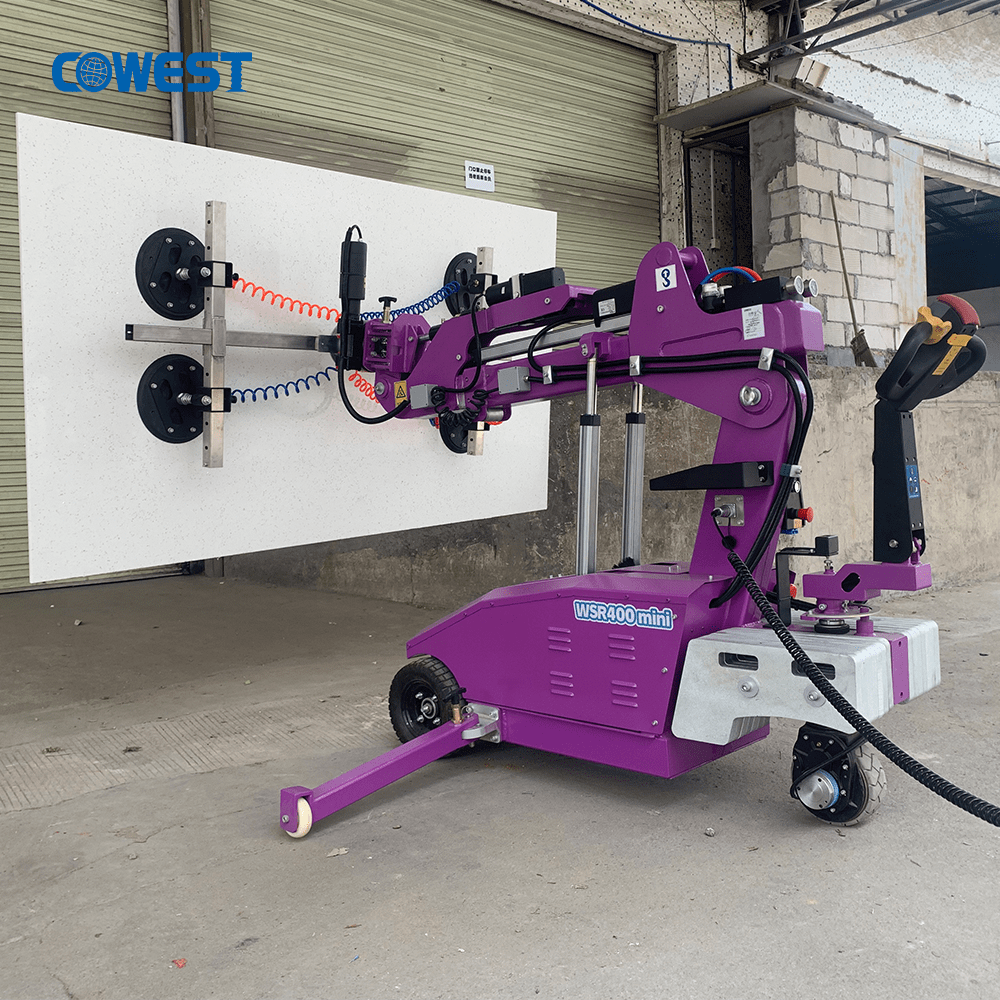

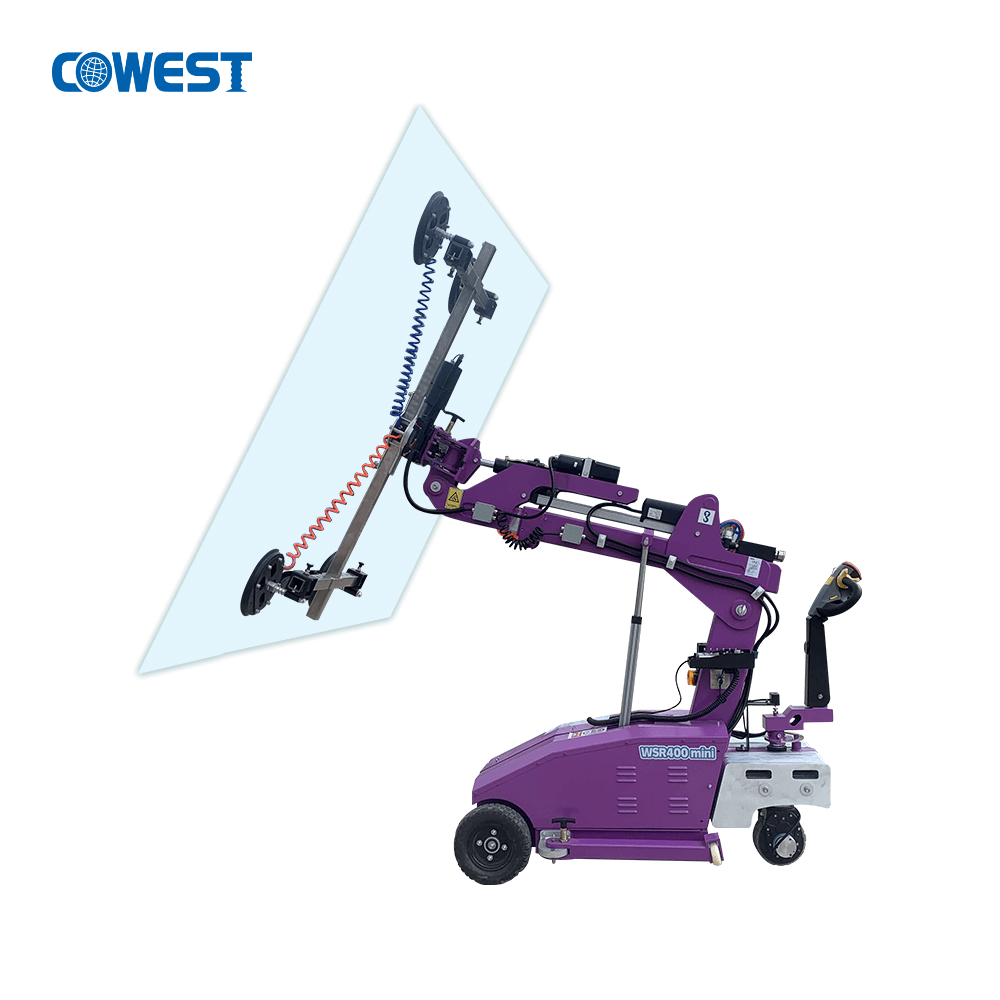

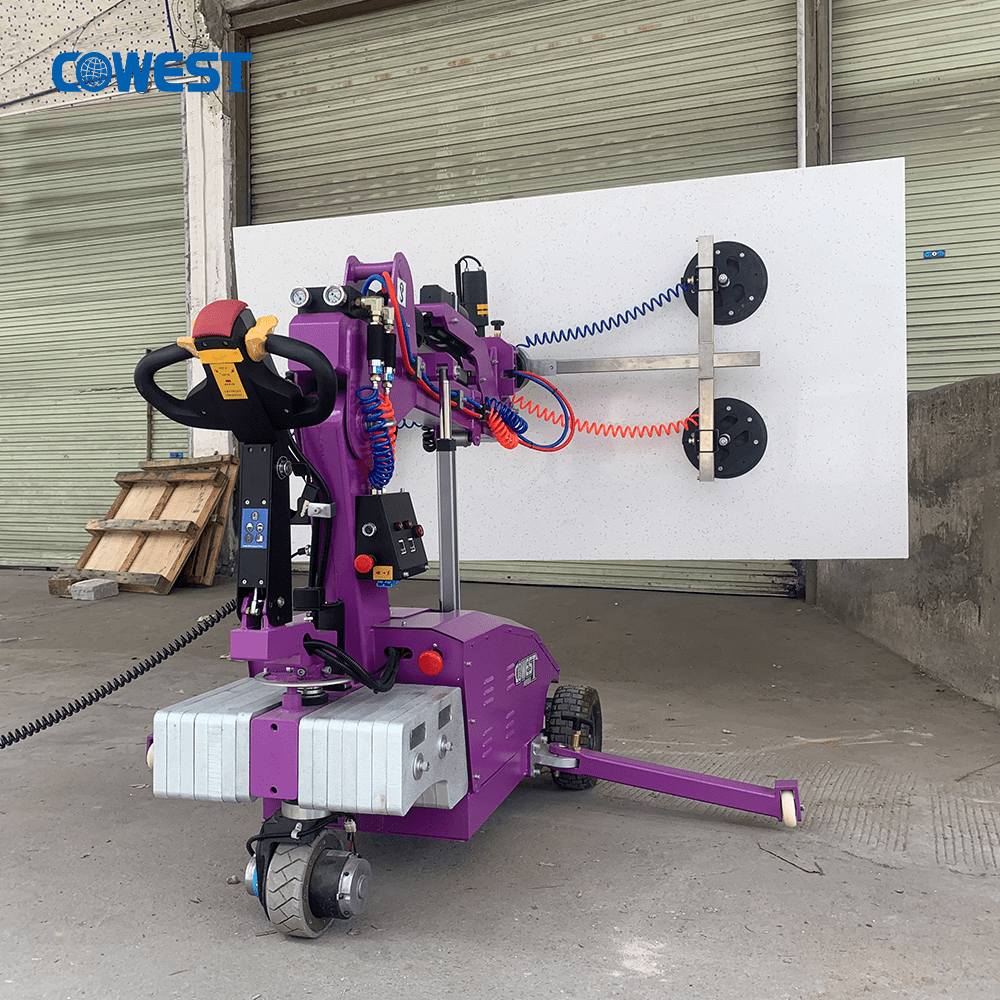

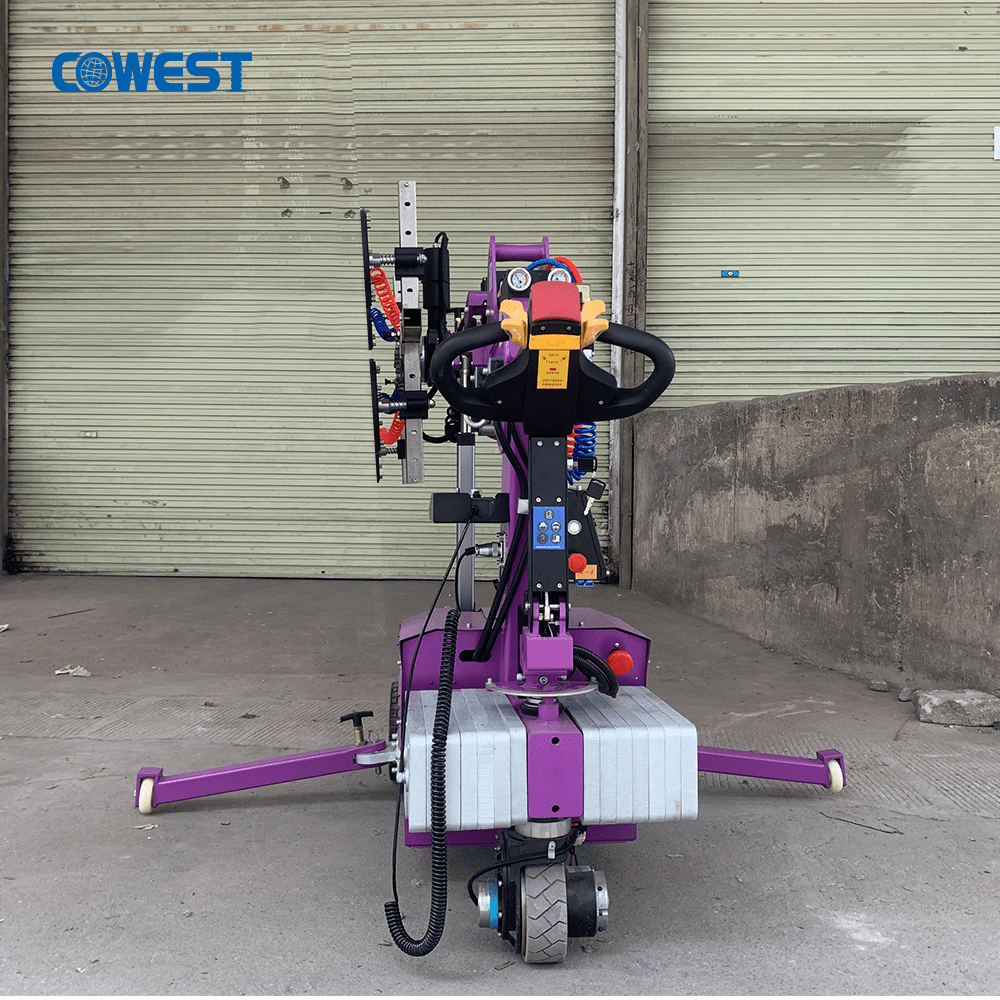

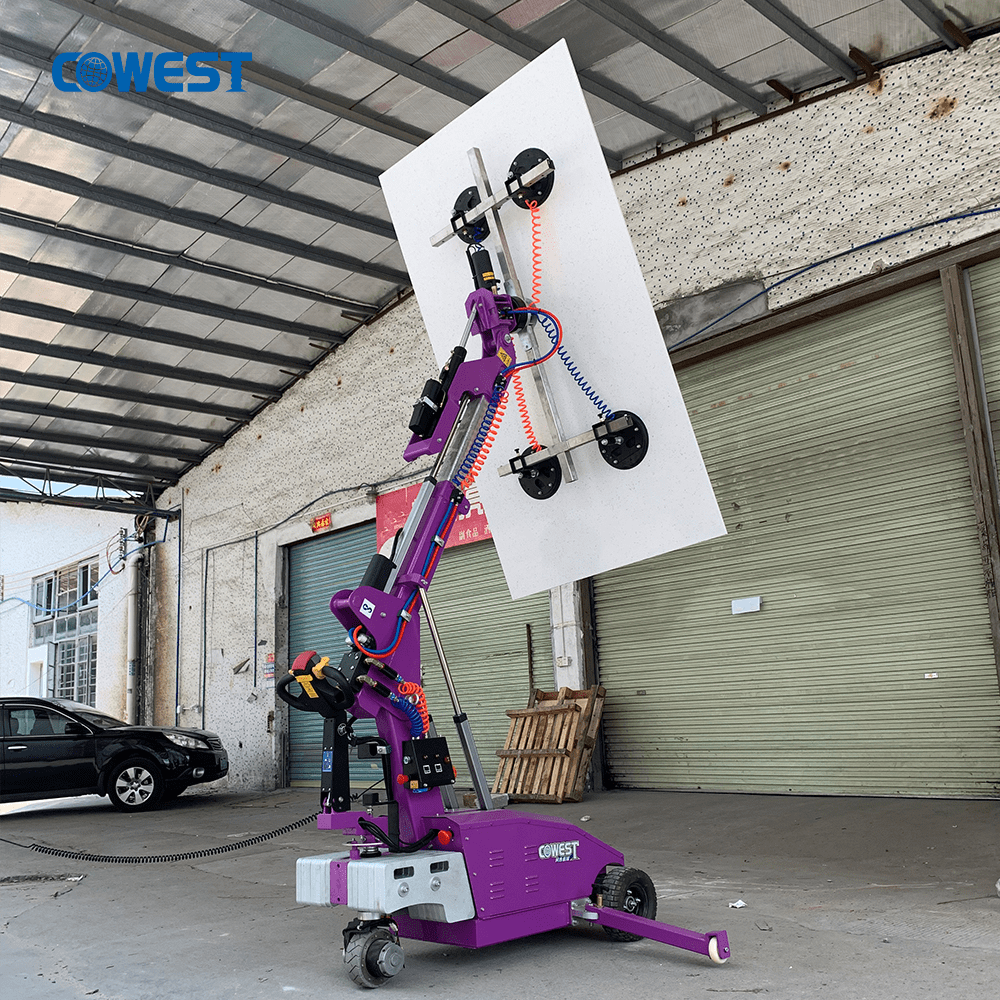

The WSR series of Smart Glass Installation Robot is a Glass Installation Equipment developed by our company that combines the functions of gripping, walking, lifting, Tilting and rotation by Automatic. It can be used for the Install Glass Curtain Wall , Install Glass Windows ,Install aluminium decorative panels, prefabricated concrete walls, marble and other panels on the outside of buildings or within floors. Compared to the traditional glass crane or large crane for installation, this series of glass installation lifter is small and agile, multi-functional, equipped with distance measuring and anti-tip safety devices, and optional wireless remote control to achieve one-person operation; This Glass Install Machine power supplied by 2 picese of big capcity Batteries it can working 6~8 hours continuity. it can also enter the engineering lift to install glass curtain walls indoors, greatly improving operational efficiency and safety. The WSR 400mini Glass Installation Robot is the smallest model in this series. But it's a excellet Install Glass Curtion Wall Lifter.
It has two model of this series , they have shorter body and lighter weight, Usually it can be enter microbus then transports to every construction site , it is a good assistant as the Install Glass Curtion Wall lifter .
|
Model Type |
WSR400-MINI |
|
Load Capacity |
380kg |
|
Lifting Height |
3000mm |
|
Driving Speed |
0-4km/h |
|
Rated Power |
1.2kw |
|
Drive Model |
24V,Rear Drive |
|
Climbing Capacity |
15% |
|
Vacuum Indication |
Digital and Pressure gauge |
|
Suction Cups |
4* Dia.300mm |
|
Continuous Working Time |
4h-8h |
|
Battery |
DC12V*2*100Ah |
|
Battery Charger |
AC110V-220V |
|
Height Forward Extension |
500mm |
|
Electric hydraulic tilting forwards & backwards from vertical to horizontal |
|
|
Movement（Automatic） |
1. Pad frame vertical up/down 180° 2. Boom in/out 3. Powered arm up/down 4. Lateral side shift 100mm 5. Pad frame tilt left/right 90°manual 6. Pad frame rotation 360°manual |
|
N.W/G.W |
|
|
Packing Size |
|
|
Usages |
Mainly used for handling,moving and installing glass,marble,tile etc. |
About us
Guangzhou Cowest Machinery Equipment Ltd was established in 2008,which is a professional Vacuum handling equipment research and development, production, sales and service in one manufacturing enterprise. Our products are used in many industries such as Construction, Glass manufacturing, Chemical industry, Pharmaceutical industry, and food industry, and are exported to Europe, America, the Middle East, Southeast Asia and other regions around the world.
We have own R&D team and core product technology, and have obtained more than 30 product patents, including Movable Vacuum tube lifter with Fold Crane, Glass installation Robot, Stone Road installation manipulator ect. These products are one of the best in the world, and they are used in many famous enterprises and projects: Dunlop Tires, Nescafe, Brother Printer, IBM, Lipan Paint, Kohler and other products of the production line handling palletizing. Our products also participated in many famous large-scale construction projects for Glass installation .such as the glass installation projects of Beijing Library, Guangzhou Tower,Hong Kong Pacific Place,the United States Metropolis and Beijing Airport ,etc.In addition, we also cooperate with many famous construction machinery giant enterprises: Manitou, Zoomlion, Zhejiang Dingli, Sany Machinery, XCMG Group, etc. to provide technical support and accessory products.
Our company has always adhered to the philosophy of "only the best, the best in the industry", and has learned on a wide range of global technical expertise to create rock-solid product quality and safer, more personalised products that customers can buy with confidence and comfortable to use, making handling problems easy!
|
Packaging Detail: |
by Flexible Package, Seaworthy Package |
|
Delivery Time: |
15-30 days |
1.How can customer buy parts once the Vacuum Glass lifter break down?
Thes Glass lifter adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the Glass lifter.
One of the great advantage of Glass lifter is with very very low failure rate.Even it breaks down,we can guide to repair it by
video and repair instruction.
3.What is the battery life span?
The lift span of the battery can be 4 years if you maintain it as per our maintanance manual.
4.How long is the quality guarantee of the Glass lifter?
One year quality guarantee including battery.Wheels are not included.If it breask down within one year,we can send the parts free of charge to you.
