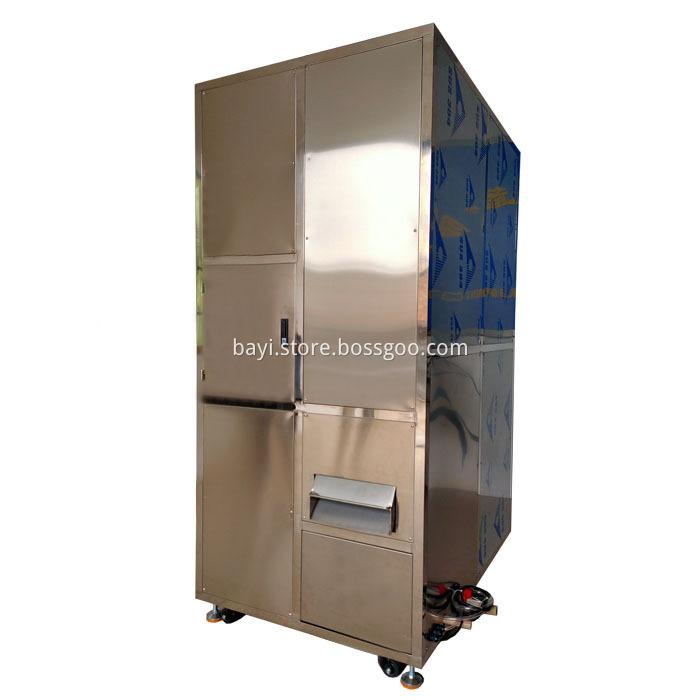

This water treatment equipment is a new type of slag water separator independently developed by Bayi automation equipment, suitable for: Polishing integrated water polishing ash separation, magnetic grinding dust water separation, vibration grinding dust water separation, soybean products processing industry, can effectively remove the solid impurities in the water, automatic slag discharge, unattended, so that the sewage becomes clean and clear, the separated water can be reused, conducive to the conservation of water resources and environmental protection.
Equipment effective size: length 1200mm width 1500mm height 2400mm
Equipment material: 304 stainless steel square pass welding, water storage tank using 10nn PP plate welding.
Control system: The frequency converter and time controller are adopted to realize the automatic control of the frequency converter to drive the dry drum for variable speed control, equipped with liquid level detection, and realize the automatic start of the storage tank when it is full
Dry drum: The use of two-stage filtration, coarse and fine filtration, so that the separation of slag water more efficient, the use of blowing system, to achieve automatic slag discharge function.
The use of sewage pump to pump the slag water mixture into the dump dry bucket, the frequency converter drives the dump dry bucket to run at high speed, and the slag water is separated here with the filter cloth. The equipment is designed with two stages of separation, which can effectively separate the solids in the slag water, and then use the frequency converter to beat the slag at low speed, and collect the separated solids into the bag by gravity.
If you are interested in the product, contact 2bvideo.com for more information for more information
