Drum filter for on-site use

Drum filter for on-site use

2 year ago

43 0

Wuxi Feiyiya Environmental Protection Technology Co., Ltd.

 2 year year

Product details

Technological features and advantages of FYY-RSM Drum Screens:

Simplicity and reliability of equipment at a relatively low price;
The compact design of the screen combined with high throughput makes it possible to organize effective mechanical cleaning within a small area, which is extremely important when using container-type block treatment facilities;
The special design of the screen filtering mesh made of a triangular profile allows for the efficient extraction of specific fine contaminants with particles of 0.25 mm or larger from wastewater;
Cleaning the surface of the filter drum is carried out with a brass knife, which tightly adheres to the screen cloth. Due to this, effective removal of the waste trapped on the surface of the drum is achieved.
The presence of flushing nozzles installed inside the drum provides an even more thorough cleaning of the drum cloth and guarantees trouble-free operation of the screen even when cleaning wastewater with a high content of fats and oils.
Advanced automation: equipped with various operating modes ensures equipment synchronization.
The presence of an overflow in the screen design allows avoiding an emergency overflow in emergencies.
Low power consumption.

Ease of operation and maintenance of FYY-RSM Drum Screens:

The screens are easy to maintain thanks to the availability of the main components in operating condition.
Simplicity of design facilitates equipment installation
The screen does not require constant maintenance.
The work of the screen is fully automated and eliminates the need for the constant presence of maintenance personnel.

1701500228725

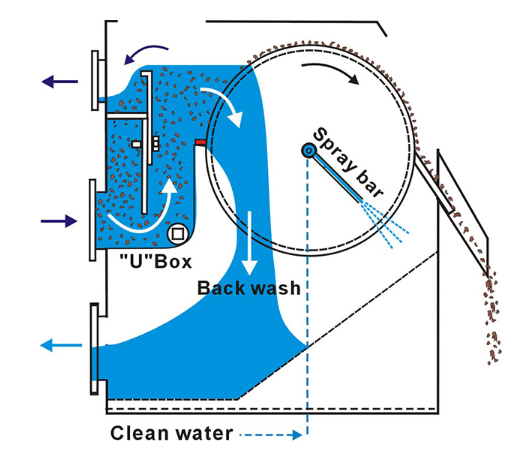

structural principle

1701163408121

Reliability and durability of FYY-RSM Drum Screens:

Increased equipment reliability due to a simple design without complex assemblies and mechanisms.
The design of the filtering mesh of the screen has increased mechanical strength to provide protection from damage.
Corrosion resistance in wastewater: casing, drum, and the lining of the screen are made of stainless steel.
During manufacturing, all stainless-steel parts of the screen are passivated, which increases the service life in an aggressive environment.
The drum sides are made of wear-resistant polyamide.
Materials that are extremely resistant to corrosion are only in contact with water.
Electrical protection against overload and power surges.

1701500311725

Advanced options:

Screens can be made of steel AISI 316, 321
Screens can be equipped with a perforated drum.
Screens can be equipped with compacting presses for compacting and packing the extracted waste.
We can develop an individual solution for you for integrating the supplied equipment into a single complex.

Rest assured that we will prepare the most optimal equipment for solving your tasks.
