Product details

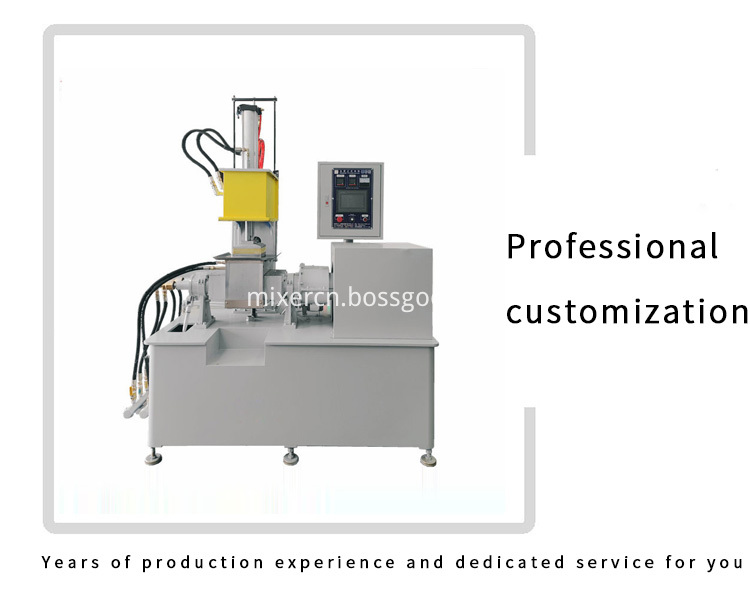

Dongguan 3L Small Internal Mixer Tipping Bucket Internal Mixer Plastic Internal Mixer Internal Mixer for Laboratory Use in Colleges and Universities

ZG-3L Laboratory Small Electric Water Cooled Mixer

3lb

Product application: Used for rubber molding and mixing. Mixing of chemical industrial raw materials: Mixing of various cable materials, color masterbatches, EVA, PVC, carbon black, low smoke and no barrier materials, TPR, cable heat shrink tubes, high calcium filling engineering materials, and other chemical raw materials. Flip over internal mixing chamber hopper for 135 degree feeding and reclaiming. Capacity: 3L Motor: 7 5KW Speed: 36 revolutions per minute Temperature: 0-300 degrees Celsius Water cooling (integrated cold and hot)
1. Volume of mixing chamber: 3L. Main motor: AC motor with a power of 7.5 kW
2. Reducer: The base and frame are made of low-carbon steel structure, with a forced lubrication circulation system;
3. Rotor: Double edged, synchronous rotor structure (can also be designed and manufactured according to the rotor structure diagram provided by the user), with a front and rear rotor speed ratio of 1:1.20 or ST synchronous rotor specific parameters can be customized according to customer needs, cast steel quenching and tempering hardening treatment, and surface hard chromium plating; The bearing is a ball shaft roller bearing; Bearing lubricating oil bath; Rotor speed: 7L: 36 rpm Specific speed can be customized according to customer needs
4. Feeding device This mechanical design is a front feeding device, and the pressure can be adjusted according to the user's specified gas valve
5. The pressure cap adopts an "M" shaped structure, making the rubber mixture more uniform
6. Volume: (W × D × H) 1150 * 500 * 1580MM
7. Weight: 365KG

Dongguan Zhenggong Electromechanical Equipment Technology Co., Ltd. was founded in 1988 in Dongguan, Guangdong. Its main products Small open mill, Small internal mixer, Small tablet press, small vulcanization machine, Small extruder, and various customized laboratory mixer rubber and plastic mechanical equipment. Established the Taiwan Joint Venture Business License in 2009, after more than 30 years of research and development and creation. It has been located in Houjie Town, Dongguan City, Chinese Mainland Province, mainland China.
