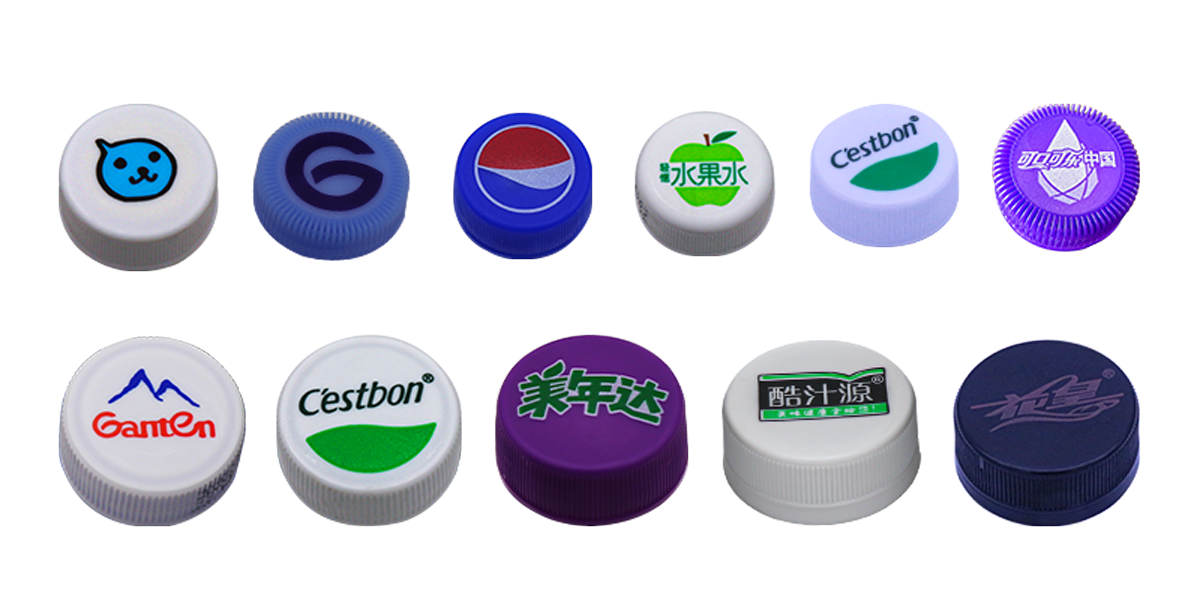

High Speed Plastic Cap Offset Printing Machine----3025 water bottle cap
It is specially designed for customers who need bottle cap printing with high-speed, easy plate making, lower cost and simple operation. Machine design is based on the principle of dry offset printing, equipped with unique magnetic rollers, two sets of dual-color offset printing units and one set of vanishing unit, it can achieve image on image printing with accurate registration. Control by PLC with touch screen interface, it organizes a high efficiency production line.
Machine Configuration:
Automatic Unscrambler Feeding
Standard using LPG gas for surface treatment before printing.
UV Curing system----automatic temperature control and extraction system which avoid the lamp over-heated & maximized the lamp efficiency.
Machine Technical Parameter
Cap diameter : ∮28mm
Max.Printing diameter:∮24mm
Printing Speed : Up to 120,000Pcs/hour（The actual printing speed will depend on the specific product）
Liquefaction supply : 0.15Mpa
Air pressure : 5-7 bar
Power supply : AC380V 3 Phase 50Hz / 60Hz
Rated power : 12KW(2-color)
If you are interested in the product, contact 2bvideo.com for more information for more information
