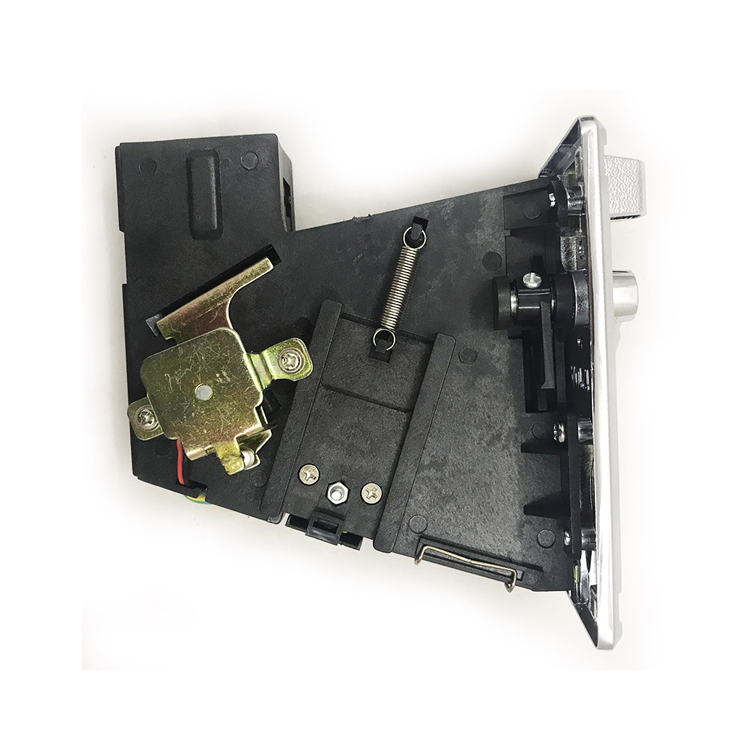

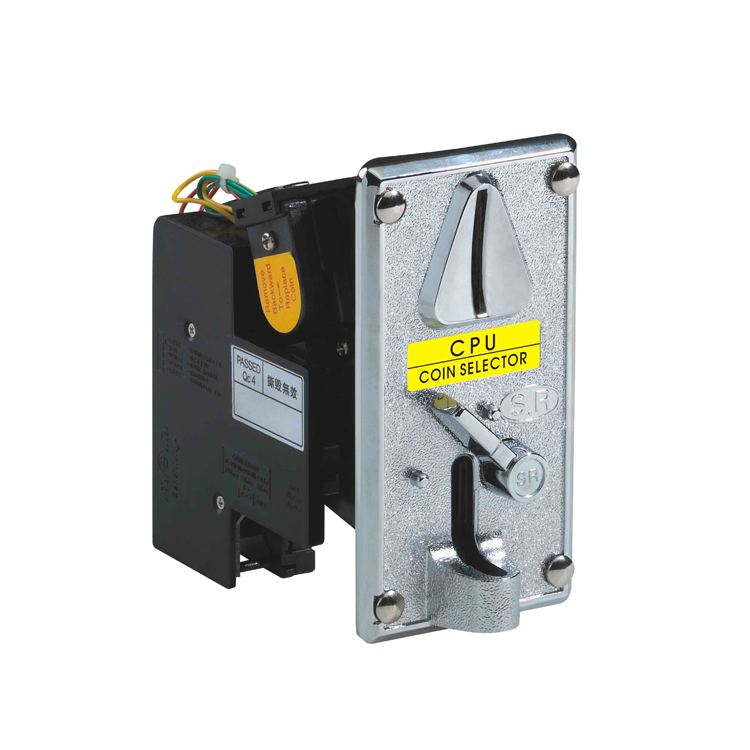

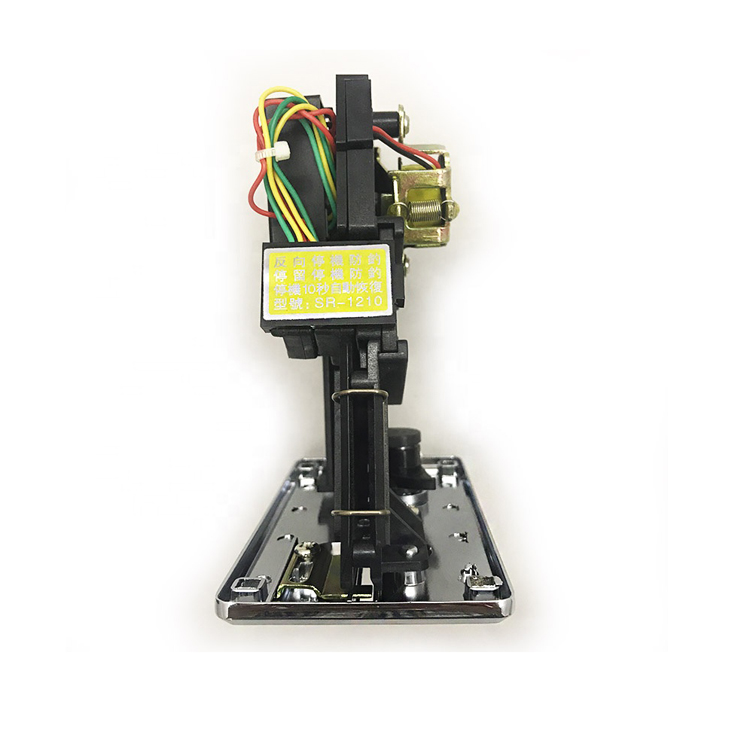

Arcade Token Coin Acceptor with Coin Selector for Vending Machine
Programmed
1. At the same time hold together (ADD) and (MINUS), Wait a few seconds, Wait A few seconds, let go of the button, the digital screen displays (A)
2. Hold the let go after a few seconds (SET) key, digital display screen displays (E). Use (ADD) or (MINUS) key, set the number of COINS.
3.After the completion of the setting, press and hold (SET) key after a few seconds. Digital display, display (H1).Use (ADD) or (MINUS) key, Set the number of sampling
4. After the completion of the setting, press and hold (SET) key after a few seconds, Digital display, display (P1). Use (ADD) or (MINUS) key, Set the pulse number
5. After the completion of the setting, press and hold (SET) key after a few seconds, Digital display, display (F1), Use (ADD) or (MINUS) key, Set a set of COINS precision (generally set 5-10). After the completion of the setting, press and hold (SET) key after a few seconds.
Has been completed set, digital display shows (A) again.
After the completion of the setting, press and hold (SET) key after a few seconds, Digital display, display (E), Off the power supply, to open the power supply, complete set program, and then start sampling.
Select the samples
1. After the completion of the setting, press and hold (SET) key after a few seconds, Digital display, display (A1), Put a coin samples, After completion, digital display screen will display again flashing (A1).
2. After the completion of the setting, press and hold (SET) key after a few seconds, Digital display, display (A2), Said the second coin samples.
You repeat the steps until the selected coin more complete.
To open the electric power supply and the system automatically restart, can so.
Restore the factory Settings
1. Turn the power off.
2. Press and hold (SET) and (ADD).
3. Open the power supply
4. Hear drops, let go of the (SET) and (ADD)
5. Completed
Specification
|
Product name |
Multi Coin Acceptor Selector
|
|
Panel material |
zinc alloy |
|
Applicable coin diameter |
15mm—29mm |
|
Atmospheric pressure |
86Kpa—106kpa |
|
Working voltage |
DC+12V ±10% |
|
Applicable coin thickness |
1.2mm—3.0mm |
|
Working temperature |
-15℃~+50℃ |
|
Working humidity |
≤95% |
|
Working current |
quiescent current is less than 70mA, dynamic current is less than 400mA. |
|
Recognition speed |
≤0.6 seconds |
|
Recognition ability |
99.5% |
|
COIN signal output |
O.C (open collector) form |
