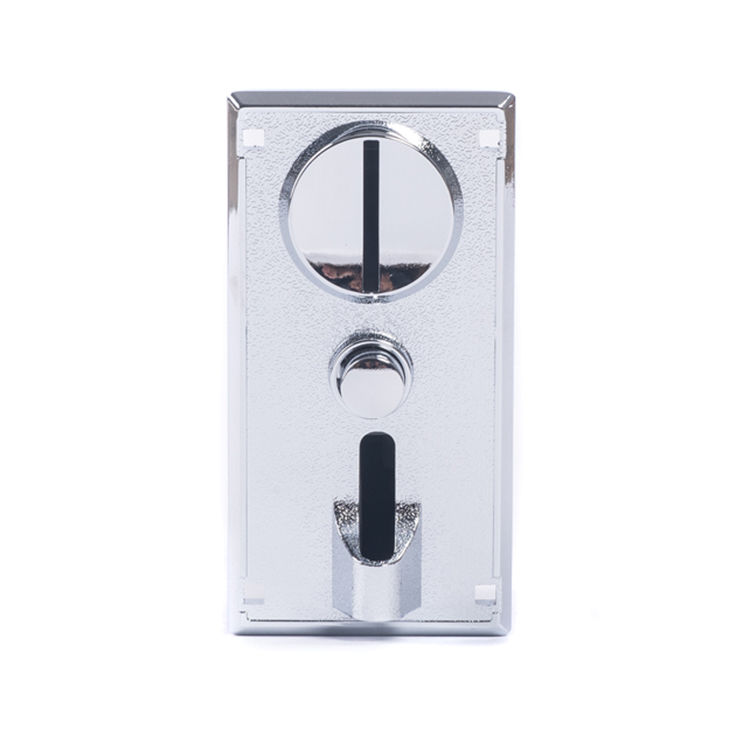

Universal Arcade Game Tokens Coins Machine Selector

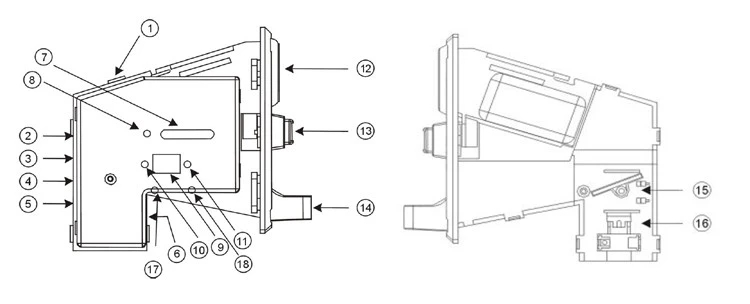

Instruction for function and situation of SR-500 type coin selector
|
NO. |
Name |
Function |
|
1 |
LED light |
power light |
|
2 |
Four pin plugs |
|
|
3 |
Two way switch |
Distinguish NO (normally open) and NC (normally closed) |
|
4 |
Three way switch |
Output signal(fast)20ms(medium)50ms(slow)100ms |
|
5 |
Two pin plug |
Function forbidden signal DC12V |
|
6 |
Two pin plug |
Electromagnetic strobe DC12V |
|
7 |
|
|
|
8 |
Microswitch |
Reset sampling indication |
|
9 |
Digital control variable 8 |
Display condition and function |
|
10 |
Microswitch |
Condition display numerical value increase“+” |
|
11 |
Microswitch |
Condition display numerical value increase“-” |
|
12 |
Coin slot |
Where to put the coins |
|
13 |
Press-button |
For removal of coin blocked |
|
14 |
Coin return slot |
Where the coins are returned |
|
15 |
Position of electromagnetic strobe |
Rule out false coin |
|
16 |
Anti-phishing&stealing points mechanism |
The speculative runs |
Specification
|
Product name |
Multi Coin Acceptor Selector
|
|
Panel material |
zinc alloy |
|
Applicable coin diameter |
15mm—29mm |
|
Atmospheric pressure |
86Kpa—106kpa |
|
Working voltage |
DC+12V ±10% |
|
Applicable coin thickness |
1.2mm—3.0mm |
|
Working temperature |
-15℃~+50℃ |
|
Working humidity |
≤95% |
|
Working current |
quiescent current is less than 70mA, dynamic current is less than 400mA. |
|
Recognition speed |
≤0.6 seconds |
|
Recognition ability |
99.5% |
|
COIN signal output |
O.C (open collector) form |
If you are interested in the product, contact 2bvideo.com for more information for more information
