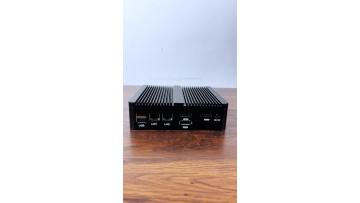

This is an embedded industrial mini PC which onboard with Intel Celeron J4125 or Intel Pentium N5000. The mini industrial computer comes with dual LAN(2* RJ45) and six com(2* RS232/RS485+4*RS232). It can meet a variety of needs in demanding environments. Based on the fanless mini PC design, it can run more stably and reliably used in buisiness, banking, securities, industrial automation, and other fields. This mini PC supports to be installed with Windows 10, Linux, Ubuntu or Centos, etc. With the rich interfaces of 1* HDMI, 1*VGA, 2*RJ45, 6*COM, 6*USB, there is an easy interconnection between devices.
Product Details
CPU: Intel Celeron J4125, Intel Pentium N5000
Memory(RAM): 1*260-pin SO-DIMM DDR4, Max up to 8GB
Storage: 1* mSATA SSD + 1* 2.5 inch SATA SSD / HDD
Dual Display: HDMI+VGA, 4K@ 60Hz, Support for Dual-line Synchronous or Independent display
OS Supported: Windows10/Windows11, Linux, Ubuntu, CENTOS, etc.
I/O ports: 2*RJ45, 6*COM(2* RS232/RS485+4*RS232) 1*HDMI+1*VGA, 2*USB3.0+4*USB2.0, 1*SPK, 1*DC-IN
Extention: 1*Mini-PCIE, 8*GPIO(2*5pin), 1*TPM 2.0 (Optional)
Ethernet port: 2* RJ45 Intel i225V 2.5GbE
Wireless: 1*Mini-PCIE, Support WiFi or 2 in 1 WIFI & BT, 3G/4G LTE (Optional)
Other: Wake UP on LAN, S5 RTC Wake Settings, PXE Boot, Restore AC power loss(Auto Power On).
Power Consumption: DC-IN 5.5*2.5 DC 12V-3A/ 36W(AC TO DC, 100~ 240V
Custom Supported: 24V, Din Rail, 6* RS485, GPIO, etc.
Operating Temperature: -20-60℃
Storage Temperature: -30℃-70℃(15- 35℃ recommended)
Relative Humidity: 5%- 95% without condensation
Mini PC, Home & Office PC, Gaming PC, Industrial PC with RS232/ RS485, Linux Ubuntu PC, 4 LAN / 6LAN Firewall PC are all available in our store, Bookmark our store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply.
The mini industrial PC which comes with Intel Celeron J4125 or N4000 integrated on the motherboard.
It carrys on with high data processing performance but with low power draw.
There are dual 2.5 GbE Intel i225-V Ethernet ports and six serial ports for this linux mini PC. It supports WiFi or 3G/4G LTE . It can work 7/24 hours. The rich interface allows it to be connected to more devices and used in more applications， such as industrial automation, monitoring system, self-service terminals, access control system, robots , etc.
If you are interested in the product, contact 2bvideo.com for more information for more information
