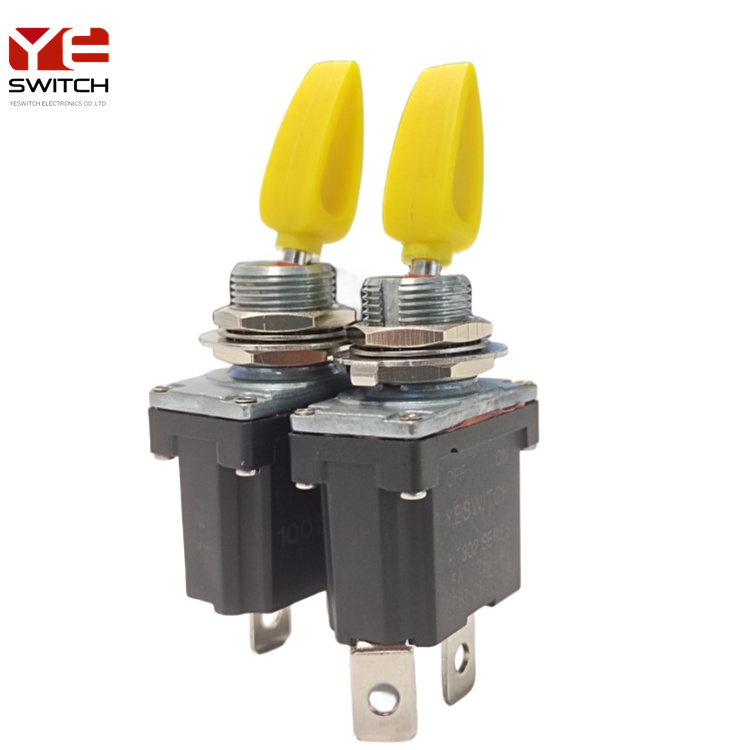

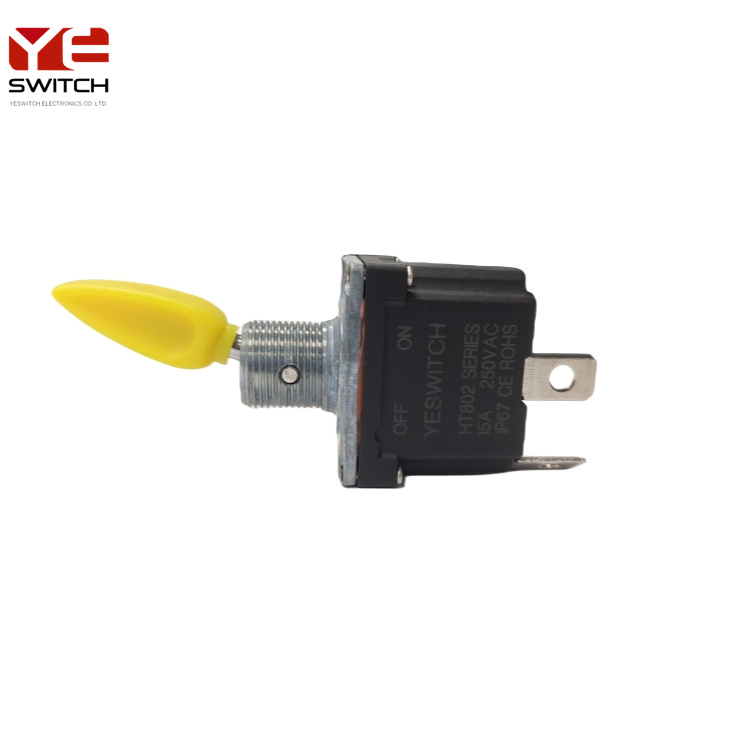

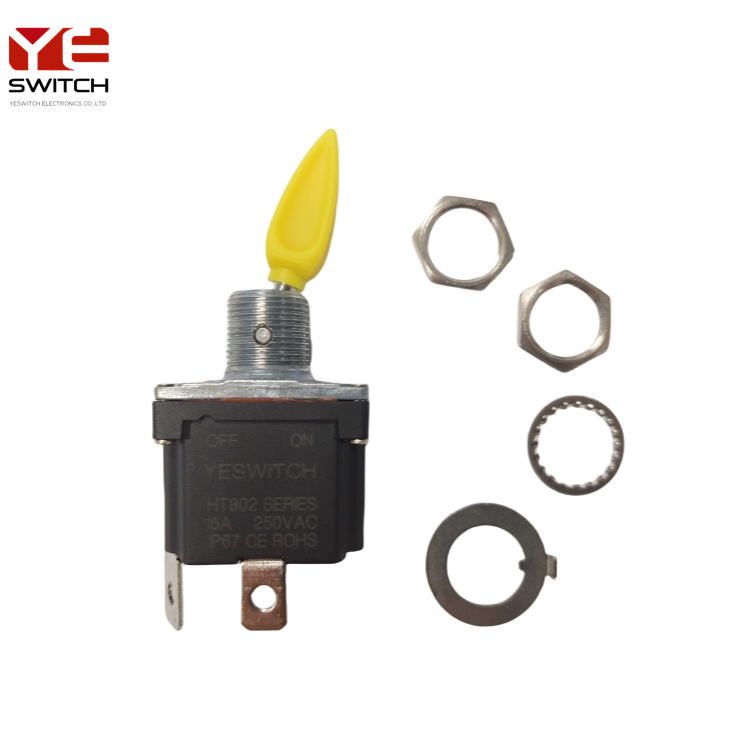

HT802 Series High Current Single Pole ON-OFF Rocker Flat Handle For Crane Remote Control Toggle Switch
15A high current rocking switch, toggle switch
The high-current toggle switches have increased contact capacity and a powerful load strength of 15A.
The original technology uses silicone injection molding to fill the inside of the crank handle to achieve a fully waterproof effect without the need for an additional waterproof cap.
The type of automotive switches function is SP. It has the characteristics of waterproof copper head, sturdy and durable body structure and excellent stability. The terminal is available with PC connections.
Industrial Application:
Used in crane remote controls, aerial work vehicle controllers, joysticks, and industrial controllers.

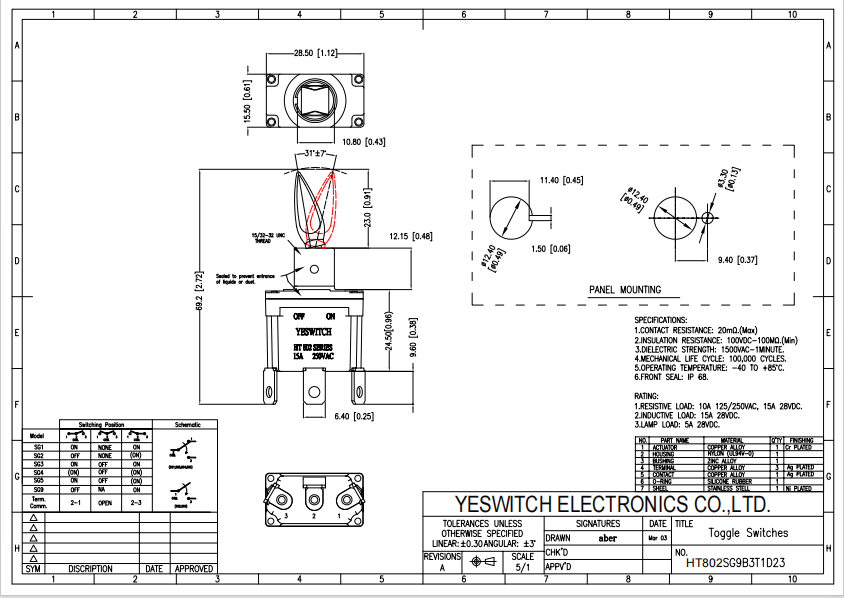

SPECIFICATION:
CONTACT RESISTANCE: 20m0(Max)
INSULATION RESISTANCE: 100VDC-100MQ.(Min)
DIELECTRIC STRENGTH: 1500VAC-1MINUTE
MECHANICAL LIFE CYCLE: 100,000 CYCLES
OPERATING TEMPERATURE: -40 TO +85C
FRONT SEAL: IP 68.
RATING:
RESISTIVE LOAD: 15A 125/250VAC,15A 28VDC.
INDUCTIVE LOAD:15A 28VDC.
If you are interested in the product, contact 2bvideo.com for more information for more information
