Product details

API 5L line pipe (Seamless pipe or welded steel pipe) of all grades have PSL1 and PSL2 two product specifications, they are different on chemical composition, manufacturing processes, mechanical strength, heat treatment, test records, traceability etc.

PSL is the short name of product standard level. The product standard level of line pipe have PSL1 and PSL2, also we could say the quality standard divided in PSL1 and PSL2. PSL2 is higher than PSL1, not only the inspection standard is different, also the chemical property, mechanical strength standards are different. So when place the order for the API 5L line pipe, there should be stated clearly for the size, grades these general specification, also have to clarify the production standard leve, PSL1 or PSL2.

PSL2 is more strictly than PSL1 on the chemical properties, tensile strength, non-destructive test, and impact test.

API 5L PSL1 steel line pipe not required to do the impact test.

For API 5L PSL2 steel line pipe, except Grade X80, all the other grades of API 5L line pipe required the impact test at temperature of 0ºC. The average value of Akv: longitudinal direction≥41J, tranverse direction≥27J.

For API 5L Grade X80 PSL2 line pipe, at 0ºC for all the size, impact test the Akv average value: longitudinal direction≥101J, tranverse direction≥68J.

For API 5L PSL2 line pipe shall perform the hydraulic test for each single pipe, and in the API standard specification not permit to have Non-destructive test replace the hydraulic test, this also is a big difference between Chinese standard and API 5L standard. For PSL1 not required Non-destructive test, for PSL2 shall do the Non-destructive test for each single pipe.

Chemical composition and mechanical strength is also different between API 5L PSL1 line pipe and API 5L PSL2 line pipe. For the detailed specification as below. API 5L PSL2 have restrictions with the carbon equivalent content, where for the carbon mass fraction greater than 0.12%, and equal or less than 0.12%. Different CEQ shall be applied. For line pipe in PSL2 tensile strength have maximum limits.

Product Specification

Out Diameter	13.7mm-914mm
Wall Thickness	2mm-120mm
Length	2m-12m
Producing Standard	American ASME B36.10M, ASTM API 5L, API 5CT Japanese JIS, German DIN, Chinese GB, BS standard
Steel Grade	ASTM A53, A106, A210, A252, A178, A333, A335, SAE1018, SAE1020, SAE1045 etc; API 5L PSL1: A, B, x42, x46, x52, x56, x60, x65, x70 API 5L PSL2: B, x42, x46, x52, x56, x60, x65, x70, x80JIS SS400, STPG42, G3454, G3456 etc; DIN St35, St35.8, St37, St42, St45, St52, DIN1626, DIN17175 etc; GB 10#, 20#, 45#, Q235, Q345, Q195, 16Mn, 27SiMn, 20Cr, 40Cr, 12CrMo, 15CrMo, 30CrMo, 35CrMo, 42CrMo etc;
Special specifications	Available according to customer's requirements and quantity.
End Shape	Beveled end, plain end, varnished, or adding plastic caps to protect the two ends as per customer's requirements
Surface treatment	Painted, Oiled, galvanized, phosphate etc
Usage	1.Widely used in the mechanical treatment field, petrochemical industry, transport and construction field 2.Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc; 3.The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc 4.Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Third party inspection	Welcome you to send a third party inspecting company (BV, SGS etc) to check the quality of our final products.

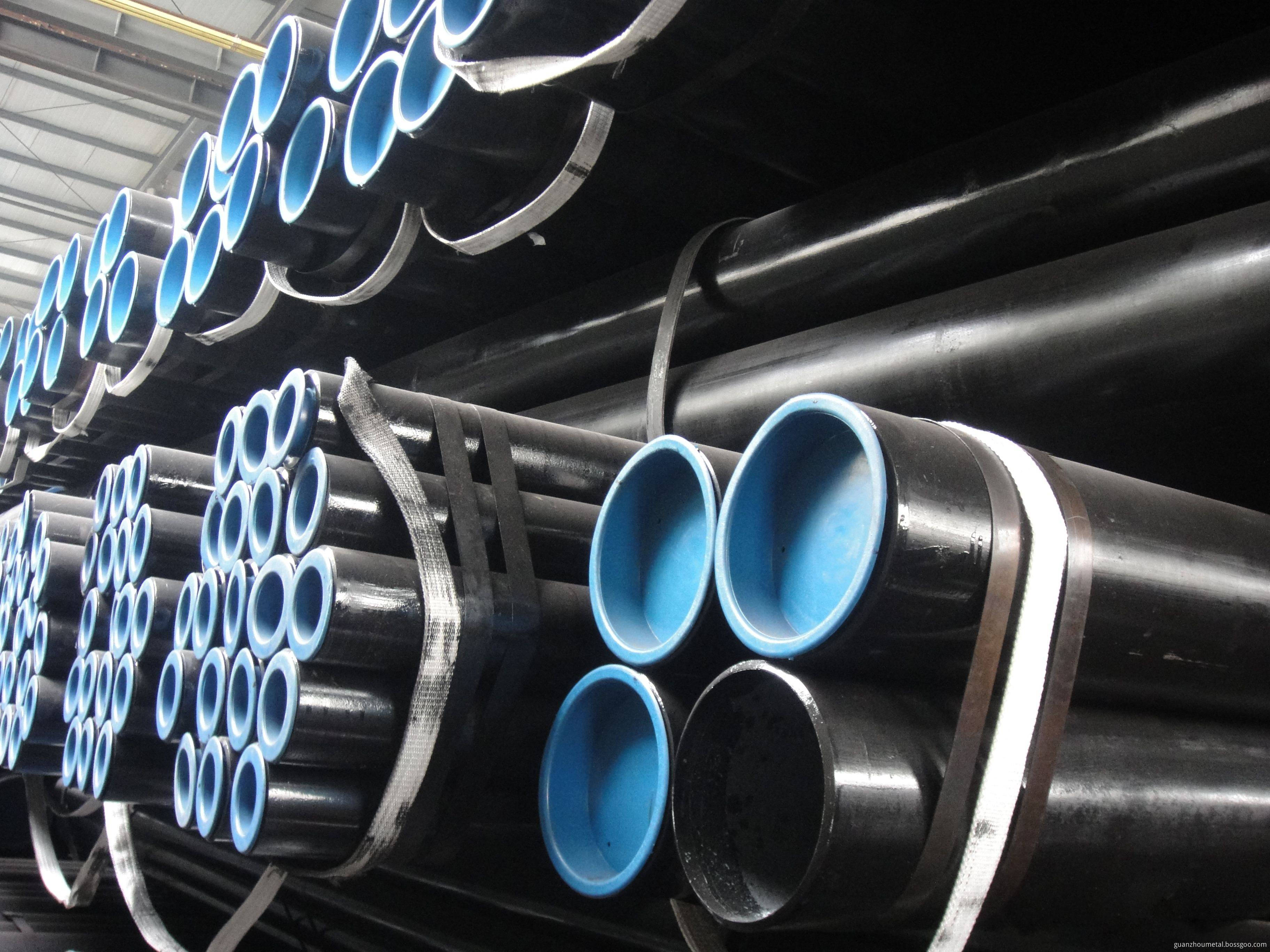

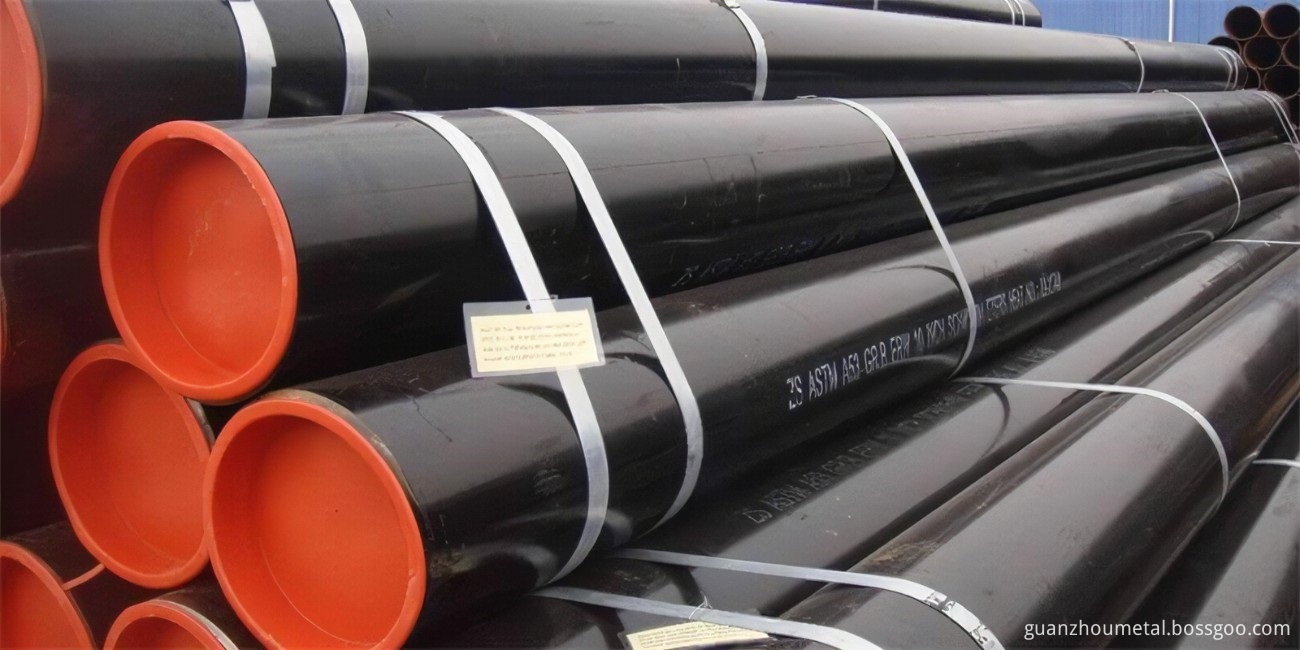

API 5L Pipeline

API 5L Steel Pipe

API 5L PSL 1 / PSL 2 Chemical Composition:

Standard	Product specification category	Steel Grade	Chemical Composite
Standard	Product specification category	Steel Grade	C	Mn	P	S	Si	V	Nb	Ti	CEpcm
API 5L	PSL 1	L210 or A	≤0.22	≤0.90	≤0.030	≤0.030					≤0.25
		L245 or B	≤0.28	≤1.20	≤0.030	≤0.030					≤0.25
		L290 or X42	≤0.28	≤1.30	≤0.030	≤0.030					≤0.25
		L320 or X46	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L360 or X52	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L390 or X56	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L415 or X60	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
	PSL 2	L245R or BR	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	C	C	≤0.04	≤0.25
		L290R or X42R	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	≤0.06	≤0.05	≤0.04	≤0.25
		L245N or BN	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	C	C	≤0.04	≤0.25
		L290N or X42N	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	≤0.06	≤0.05	≤0.04	≤0.25
		L320N or X46N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.40	≤0.07	≤0.05	≤0.04	≤0.25
		L360N or X52N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	≤0.25
		L390N or X56N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	≤0.25
		L415N or X60N	≤0.24	≤1,40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	Negotiate

API 5L PSL 1 / PSL 2 Mechanical Properties:

Standard	Product specification category	Steel Grade	Yield Strength	Tensile Strength
API 5L	PSL 1	L210 or A	210	335
		L245 or B	245	415
		L290 or x42	290	415
		L320 or X46	320	435
		L360 or X52	360	460
		L390 or X56	390	490
		L415 or X60	415	520
	PSL 2	L245R or BR	245~450	415~760
		L290R or X42R	290~495	415~760
		L245N or BN	245~450	415~760
		L290N or X42N	290~495	415~760
		L320N or X46N	320~525	435~760
		L360N or X52N	360~530	460~760
		L390N or X56N	390~545	490~760
		L415N or X60N	415~565	520~760

Steel pipe nominal outer diameter range	Steel pipe outer diameter	Coating category	Coating	Coating thickness
DN100~600	114.3~609.6	3PE (three-layer polyethylene)	First layer: epoxy powder (green)	2.0~4.5mm
			Intermediate layer: adhesive (white)
			Outermost layer: polyethylene (black)
		2PE (two layers of polyethylene)	First layer: adhesive	2.0~4.5mm
			Outermost layer: polyethylene
DN80~600	88.9~609.6	Epoxy powder	Epoxy powder	200~400um
		2FBE (Double layer epoxy powder)	First layer: epoxy powder (green)	400~800um
			Outermost layer: reinforced epoxy powder (gray green)
DN100~600	114.3~609.6	3PP (three layers of polypropylene)	First layer: epoxy powder (green)	2.5~3mm
			Intermediate layer: adhesive (white)
			Outermost layer: polypropylene (white)

INCH	OD	API 5L ASTM A53 A106 Standard Wall Thickness
	(MM)	SCH 10	SCH 20	SCH 40	SCH 60	SCH 80	SCH 100	SCH 160
	(MM)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
1/4”	13.7			2.24		3.02
3/8”	17.1			2.31		3.2
1/2”	21.3	2.11		2.77		3.73		4.78
3/4"	26.7	2.11		2.87		3.91		5.56
1"	33.4	2.77		3.38		4.55		6.35
1-1/4"	42.2	2.77		3.56		4.85		6.35
1-1/2"	48.3	2.77		3.68		5.08		7.14
2"	60.3	2.77		3.91		5.54		8.74
2-1/2"	73	3.05		5.16		7.01		9.53
3"	88.9	3.05		5.49		7.62		11.13
3-1/2"	101.6	3.05		5.74		8.08
4"	114.3	3.05	4.50	6.02		8.56		13.49
5"	141.3	3.4		6.55		9.53		15.88
6"	168.3	3.4		7.11		10.97		18.26
8"	219.1	3.76	6.35	8.18	10.31	12.70	15.09	23.01
10"	273	4.19	6.35	9.27	12.7	15.09	18.26	28.58
12"	323.8	4.57	6.35	10.31	14.27	17.48	21.44	33.32
14"	355	6.35	7.92	11.13	15.09	19.05	23.83	36.71
16"	406	6.35	7.92	12.70	16.66	21.44	26.19	40.49
18"	457	6.35	7.92	14.27	19.05	23.83	29.36	46.24
20"	508	6.35	9.53	15.09	20.62	26.19	32.54	50.01
22"	559	6.35	9.53		22.23	28.58	34.93	54.98
24"	610	6.35	9.53	17.48	24.61	30.96	38.89	59.54
26"	660	7.92	12.7

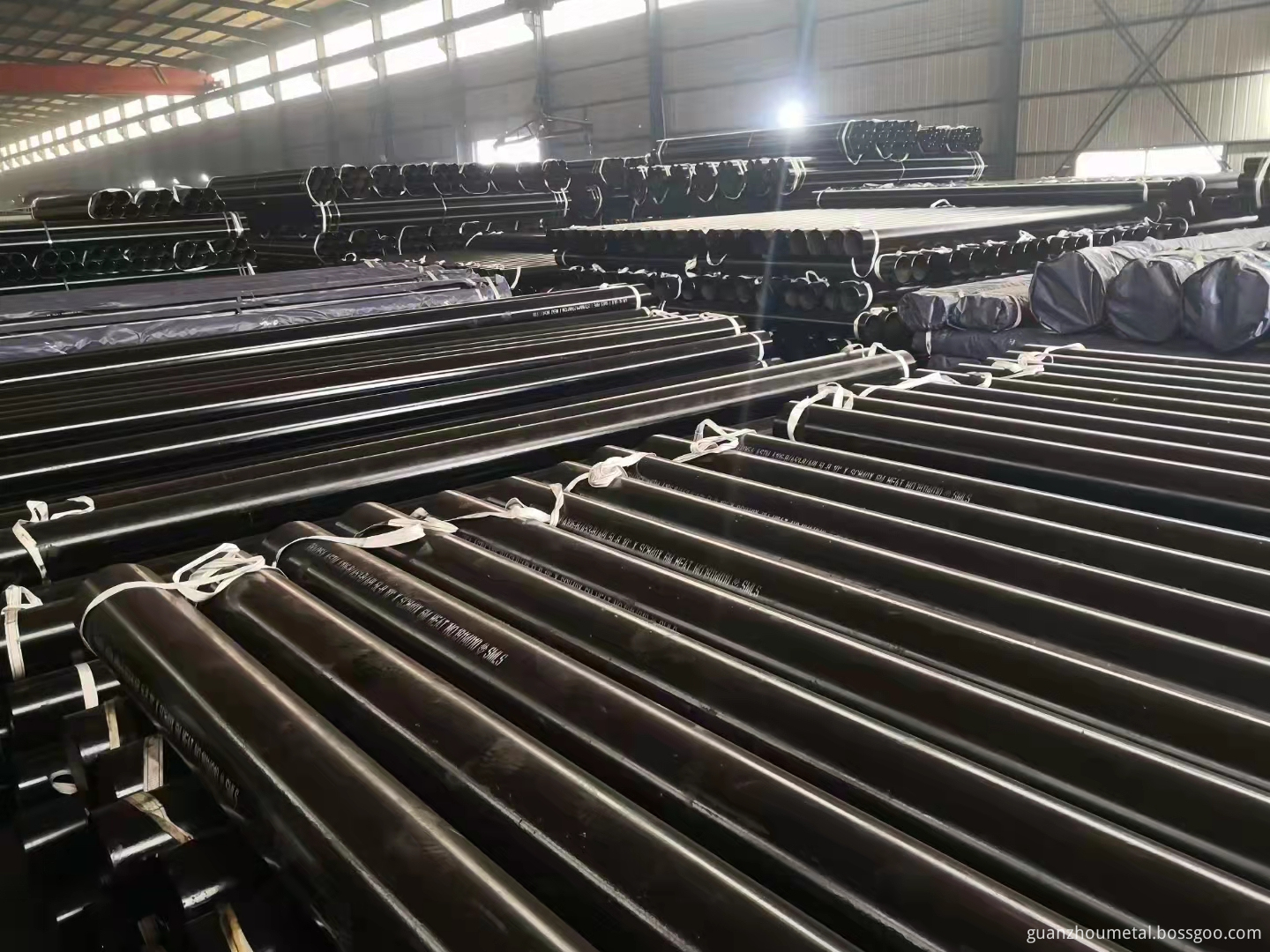

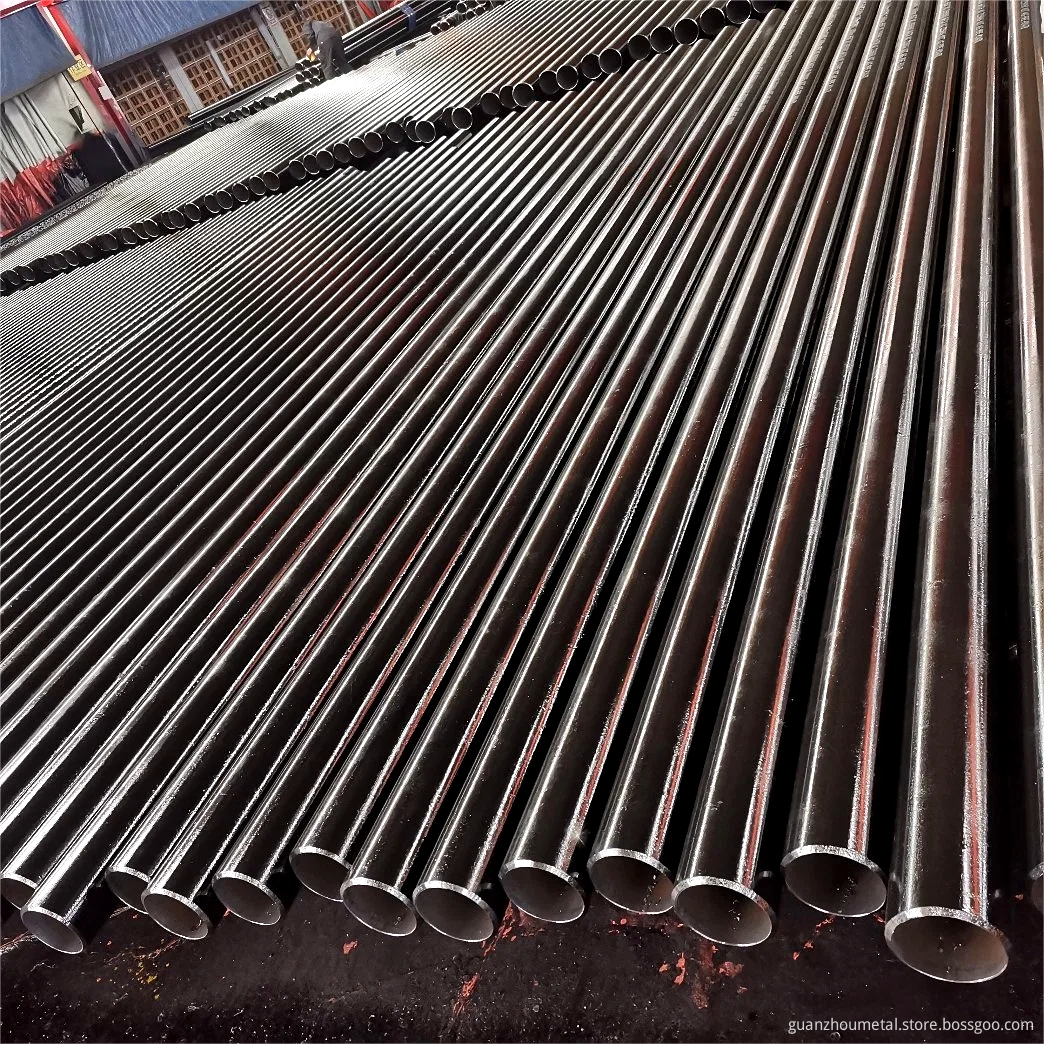

Product Display

We can produce different sizes, thicknesses, widths and materials according to your requirements

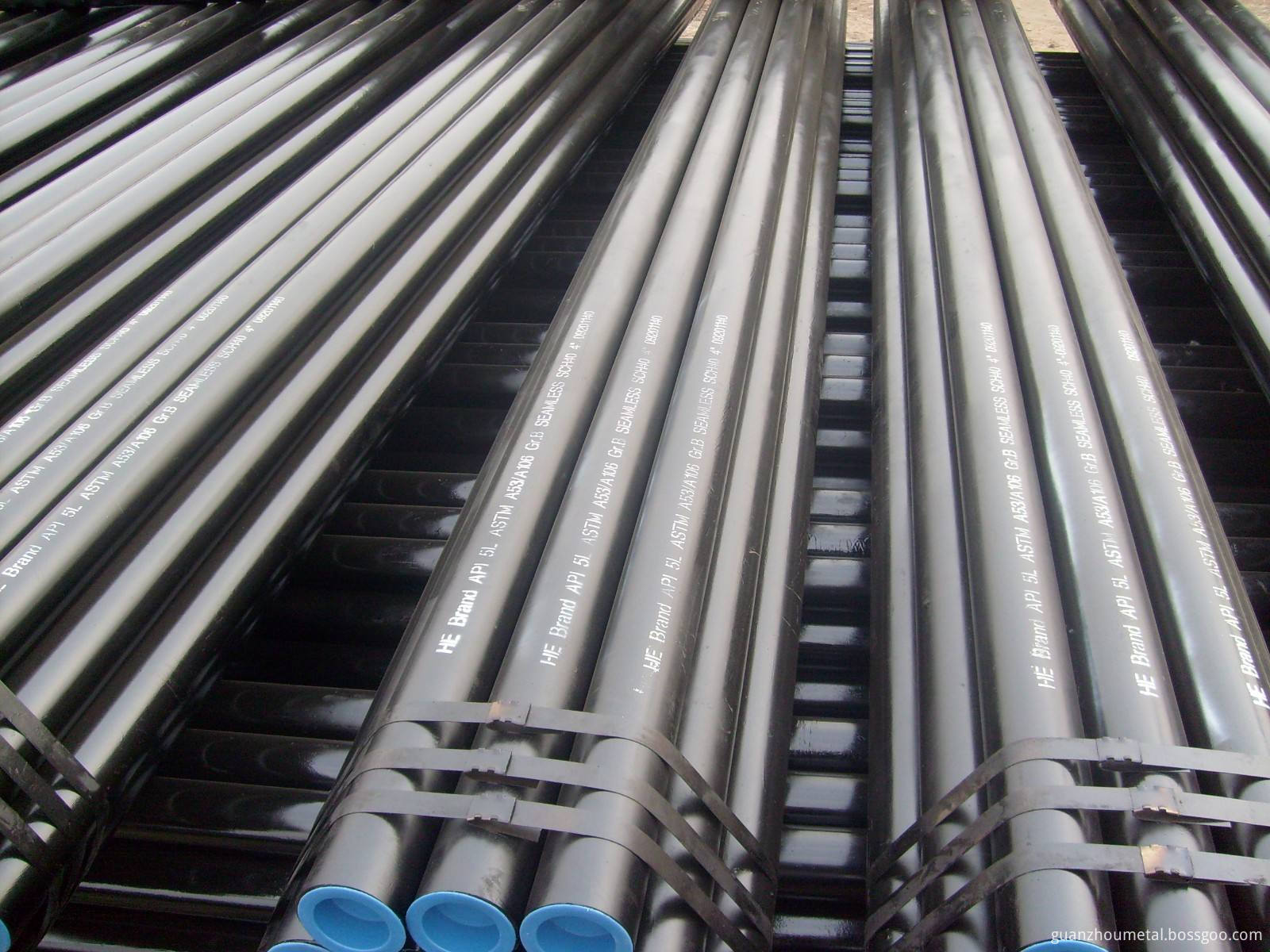

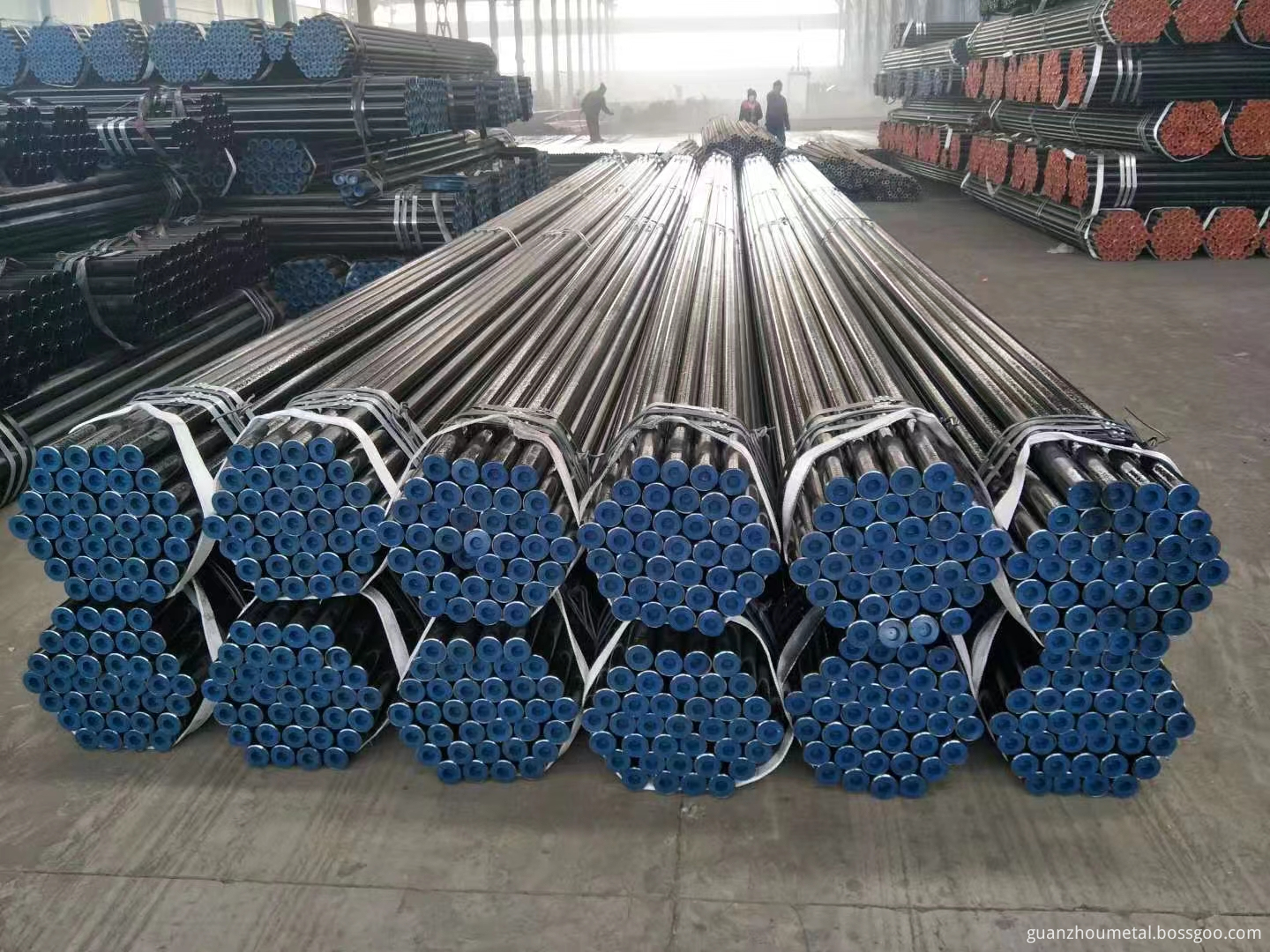

API 5L Pipeline

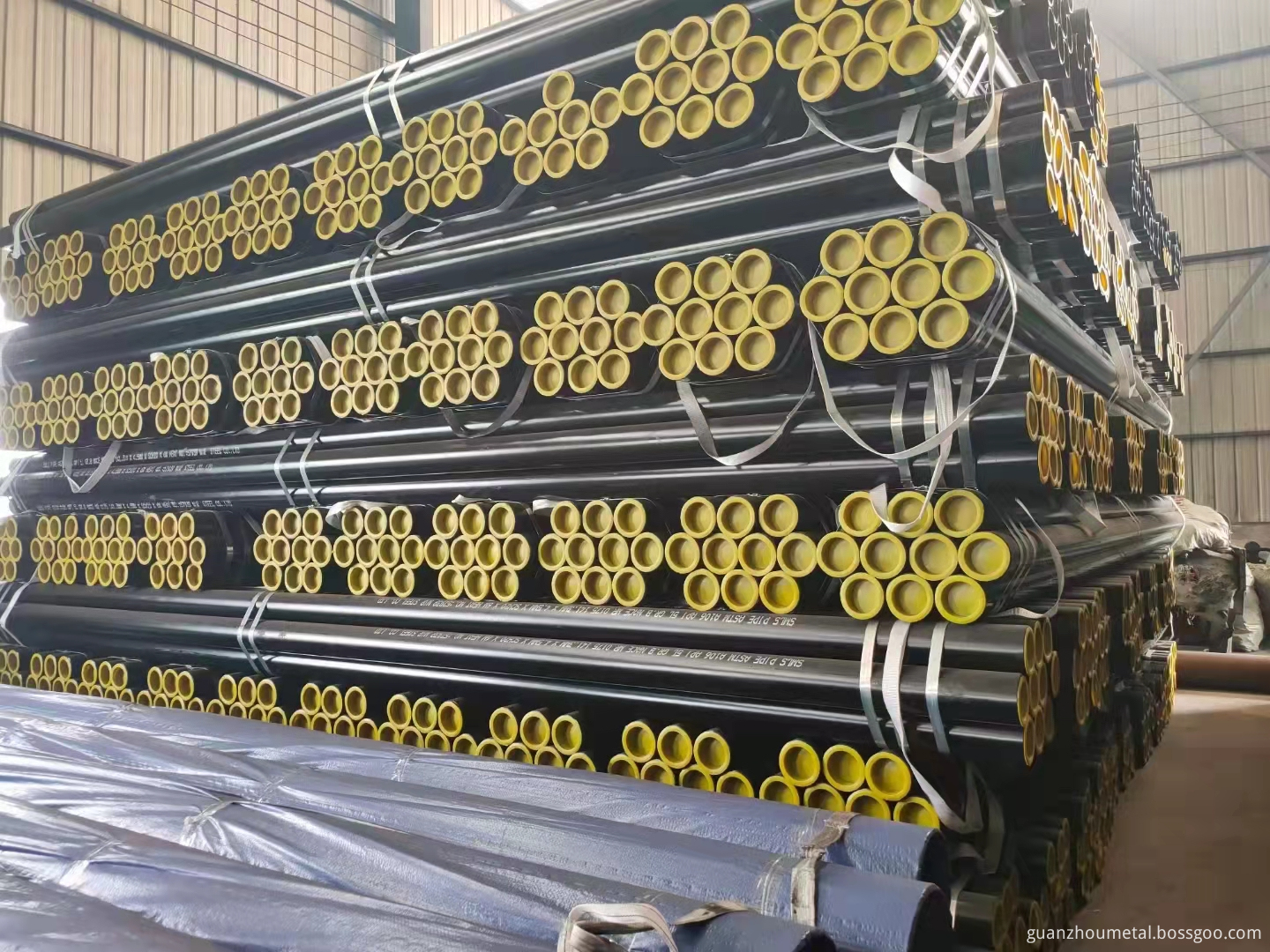

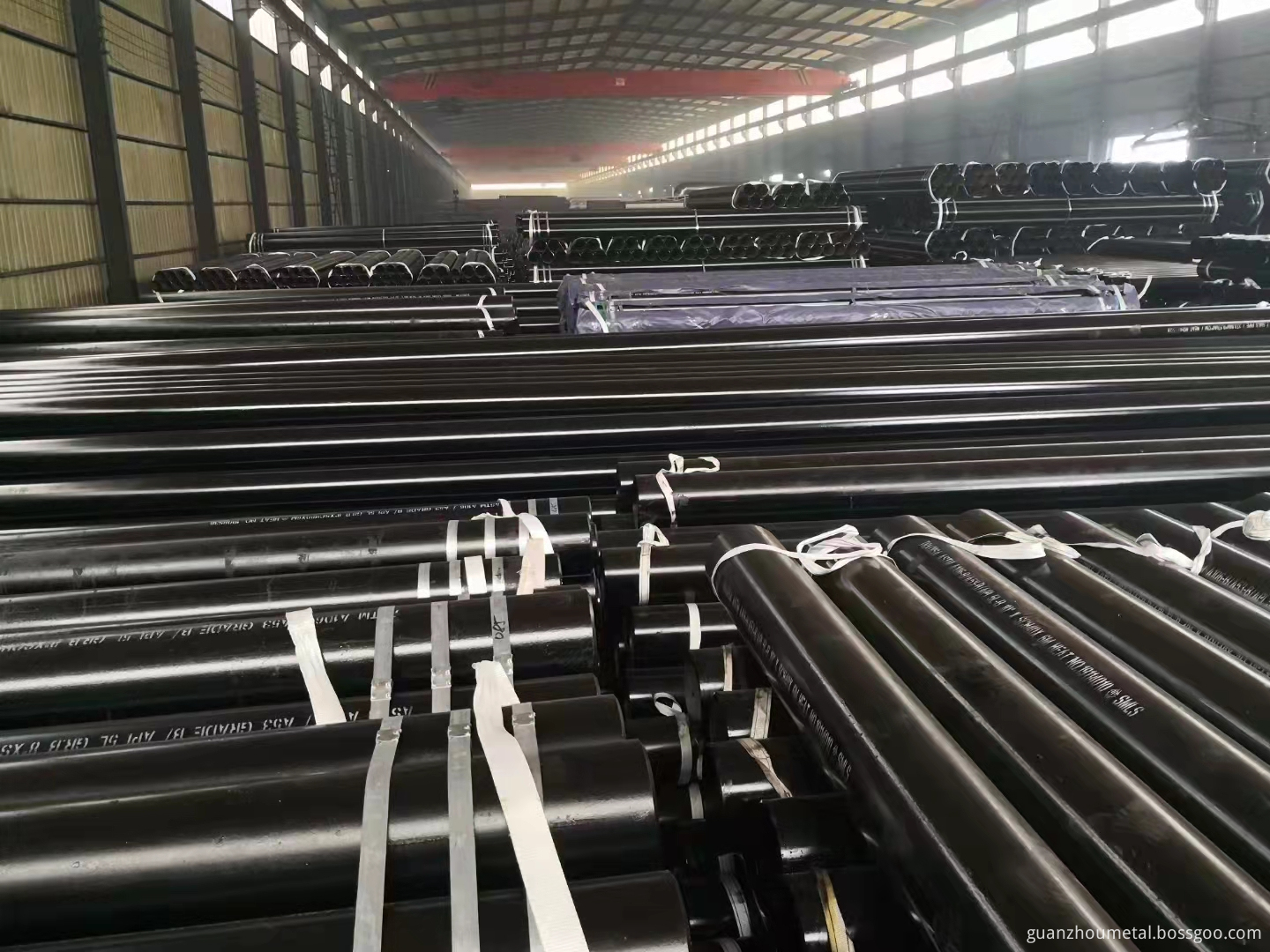

Seamless Pipe Seamless Steel Pipe

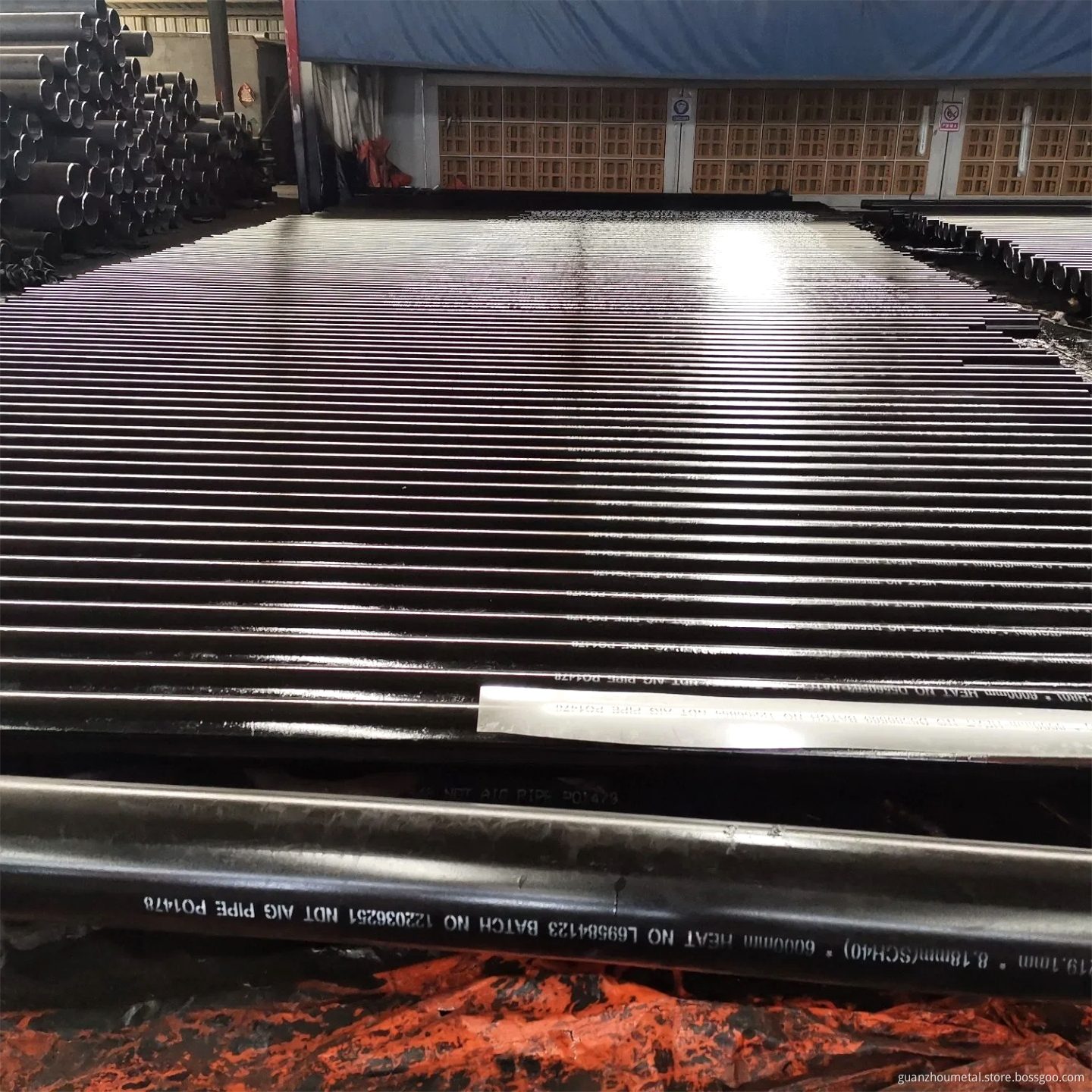

Test Before Delivery

We will control the quality from part of material steel pipe, each pipe produced will be have it is own identify label, quality will check the chemical component and physical property and then provide material test certificate. Size dimension will be checked and show pictures to customer to guarantee all goods will be meet requirement.

Company Profile

Our company is a steel supplier from China, located in Liaocheng City, one of the largest steel producers in China. The company integrates the manufacturing, wholesale, material processing and warehousing of stainless steel, aluminum, copper and carbon steel materials, and has established long-term and stable cooperative relations with many well-known steel plants, such as Tisco, Baosteel, Hongwang, Zhangpu, Liangzhong and Jiugang.

Mainly products cover carbon steel tubes, stainless steel tubes, galvanized steel coil, ppgi steel coil, stainless steel coil, carbon steel coil and carbon steel profiles, gi wire, hollow anchor bar, section steel, steel rebar etc. Our company is equipped with plasma cutting machine, coil flattening equipment, laser cutting machine, 8K mirror, frosted wire drawing, filming and titanium plating equipment, which can flatten, split, shear, oil mill wire drawing, and roll oil film wire drawing on stainless steel materials, 8K mirror, titanium and other processing.

In addition, the company's characteristic business: zero-cutting, rounding, square cutting, special-shaped cutting, castings, forgings, product thicknesses up to 150mm, various special materials and specifications can be customized to steel mills.

Companies adhering to the "efficient, win-win" business philosophy, continue to provide customers with professional, quality products and value-added services, continuous progress and learning to meet customer needs. Now the company has entered the period of rapid development of global trade, looking forward to more cooperation.

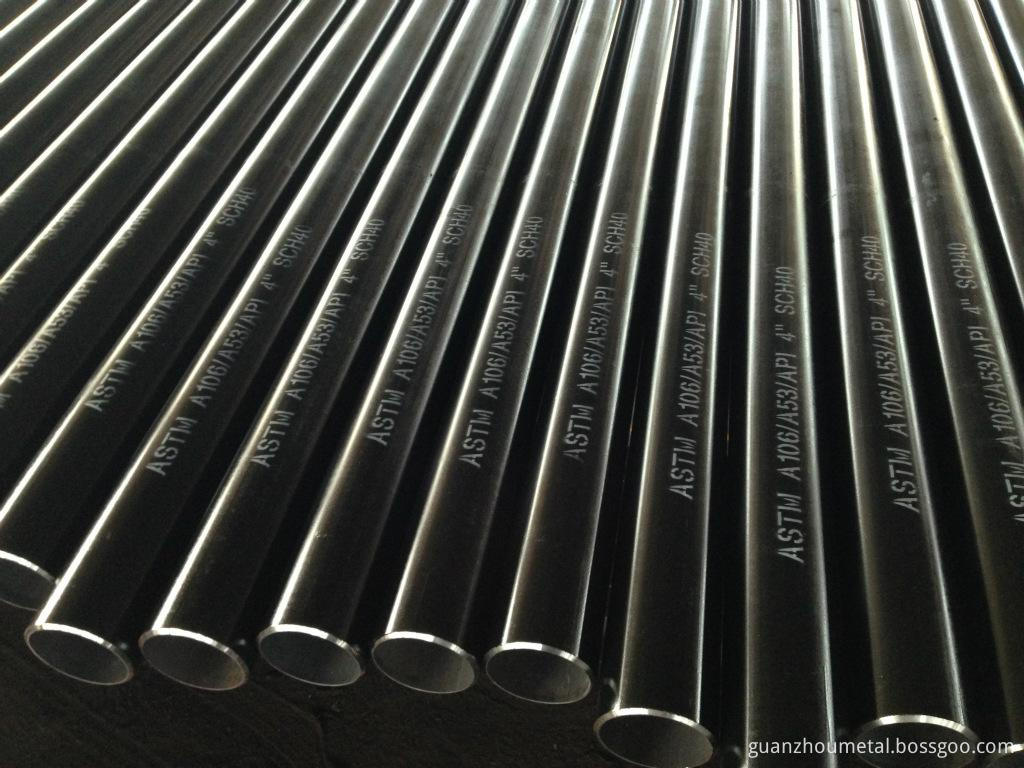

Seamless steel pipe

Packaging And Transportation

1) Packaging: 3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve or as customers' requirements.

2) Shipping: We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.

3) Trade terms: FOB/CIF/CFR

4) Shipping port: Qingdao/Tianjin/Shanghai

5) Shipment: A: Length: ≤6m, loaded in 20GP Container. B: Length: ≤12m, loaded in 40GP Container.

Remark: Size of 20GP Container (inside :5898*2352*2393mm); Size of 40GP Container (inside:12032*2352*2393mm); Size of 40HQ Container (inside:12032*2352*2698mm).

6) Delivery time: Normal size: 7-15days send from warehouse directly. Special size:15-30days custom made for you.
