Product details

Seamless Steel Pipe is made from a solid round steel ‘billet’ which is heated and pushed or pulled over a form until the steel is shaped into a hollow tube. The seamless pipe is then finished to dimensional and wall thickness specifications in sizes from 1/8 inch to 32 inch OD. Carbon Steel Seamless Pipes / Tubes Carbon steel is an alloy consisting of iron and carbon. The percentage of carbon in the steel affects the hardness, strength of elasticity and ductility of carbon steel. Seamless carbon steel pipe or solid steel ingot is made of the capillary tube through the hole, then through the hot-rolled, cold rolled or cold call is made. Seamless carbon steel pipe in China's steel industry has an important position. Seamless carbon steel pipe material is a round tube, pipe cutting machine embryos to go through cutting about 1 m of length blank, and sent by conveyor belt furnace heating. Billet is fed into the heating furnace, the temperature is about 1200 degrees Celsius. Fuel is hydrogen or acetylene. Furnace temperature control is the key issue. Round tube came out to punch through the machine through air pressure. Generally more common punch is tapered roll perforation machine, the punch high production efficiency, product quality, large diameter hole expansion, can wear a variety of steel. Perforation, round tube has been on three-roll cross rolling, rolling or extrusion. Squeezed off the tube after sizing. Sizing by high-speed rotary cone drill holes into the billet to form a tube. Pipe diameter by the sizing mill to determine the length of the drill diameter. After the pipe through the sizing into the cooling tower, cooling by water spray, steel after cooling, should be straightening. After the steel belt sent by straightening metal testing machine (or pressure test) for internal testing. If the pipe internal cracks, bubbles and other problems will be detected. After the pipe but also through strict quality control manual selection. Steel quality, the use of spray paint numbers, specifications, production lot number. By a crane into the warehouse.

Product Specification

Out Diameter	13.7mm-914mm
Wall Thickness	2mm-120mm
Length	2m-12m
Producing Standard	American ASME B36.10M, ASTM API 5L, API 5CT Japanese JIS, German DIN, Chinese GB, BS standard
Steel Grade	10#, 20#, 45#, Q235, Q345, Q195, S235JR, S275JR, S355JR, 16Mn, 27SiMn, 20Cr, 40Cr, 12CrMo, 15CrMo, 30CrMo, 35CrMo, 42CrMo etc; ASTM A53, A106, A210, A252, A178, A333, A335, SAE1018, SAE1020, SAE1045 etc; API 5L PSL1: A, B, x42, x46, x52, x56, x60, x65, x70 API 5L PSL2: B, x42, x46, x52, x56, x60, x65, x70, x80JIS SS400, STPG42, G3454, G3456 etc; DIN St35, St35.8, St37, St42, St45, St52, DIN1626, DIN17175 etc;
Special specifications	Available according to customer's requirements and quantity.
End Shape	Beveled end, plain end, varnished, or adding plastic caps to protect the two ends as per customer's requirements
Surface treatment	Painted, Oiled, galvanized, phosphate etc
Usage	1.Widely used in the mechanical treatment field, petrochemical industry, transport and construction field 2.Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc; 3.The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc 4.Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Third party inspection	Welcome you to send a third party inspecting company (BV, SGS etc) to check the quality of our final products.

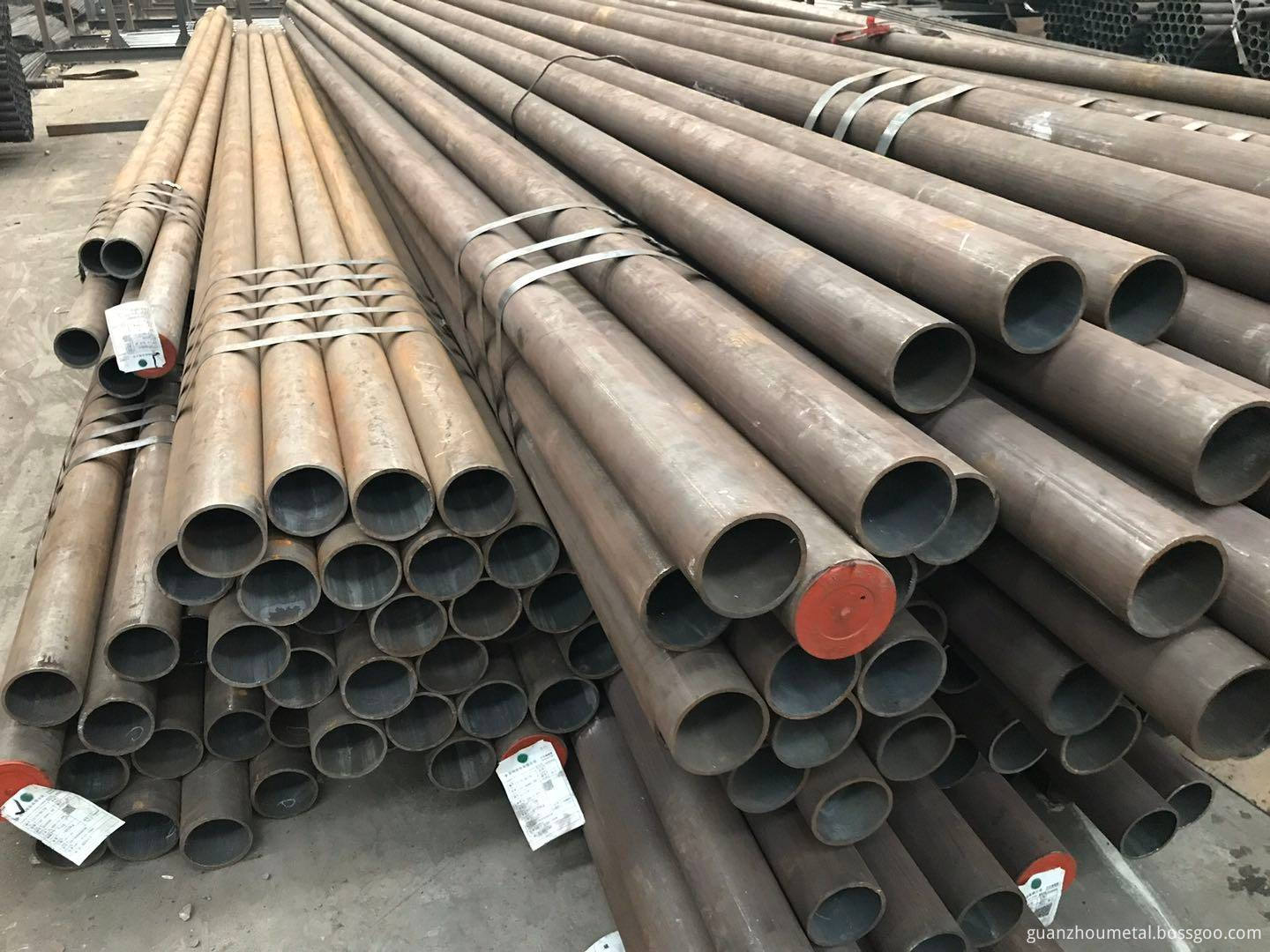

Seamless Steel Pipe Carbon Steel Pipe

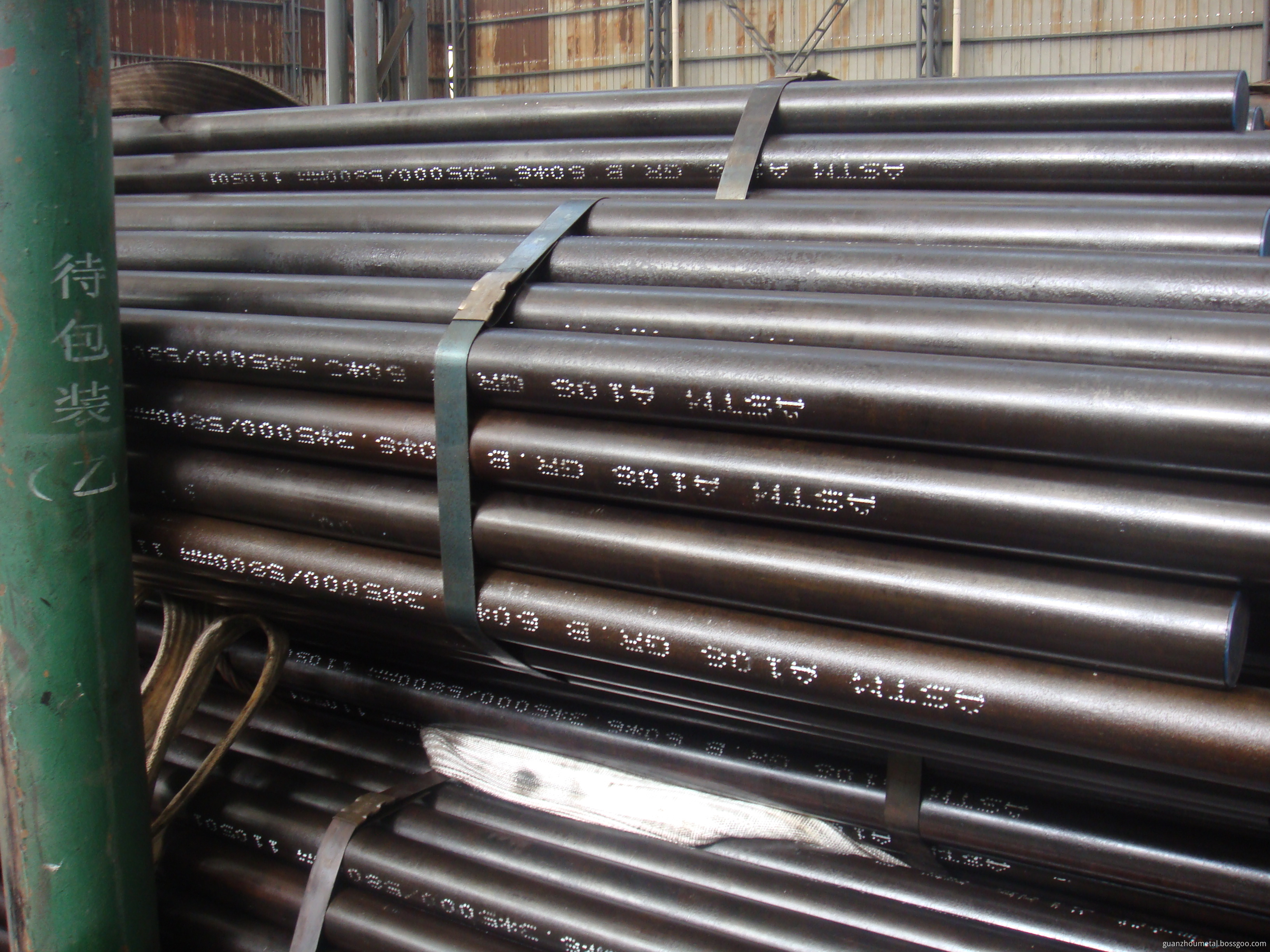

Seamless Steel Pipe

Chemical Composition and Mechanical Properties

Standard	Grade	Chemical Composition (max)%					Mechanical Properties (min)
Standard	Grade	C (Max.)	Mn (Max.)	Si (Max.)	S (Max.)	P (Max.)	Yield Strength(Mpa)	Tensile Strength(Mpa)
GB/T700-2006	Q235A	0.22	1.40	0.35	0.050	0.045	235	370
	Q235B	0.20	1.40	0.35	0.045	0.045	235	370
	Q235C	0.17	1.40	0.35	0.040	0.040	235	370
	Q235D	0.17	1.40	0.35	0.035	0.035	235	370
GB/T1591-2009	Q345A	0.20	1.70	0.50	0.035	0.035	345	470
	Q345B	0.20	1.70	0.50	0.030	0.030	345	470
	Q345C	0.20	1.70	0.50	0.030	0.030	345	470
BS EN10025	S235JR	0.17	1.40	-	0.035	0.035	235	360
	S275JR	0.21	1.50	-	0.035	0.035	275	410
	S355JR	0.24	1.60	-	0.035	0.035	355	470
DIN 17100	ST37-2	0.20	-	-	0.050	0.050	225	340
	ST44-2	0.21	-	-	0.050	0.050	265	410
	ST52-3	0.20	1.60	0.55	0.040	0.040	345	490
JIS G3101	SS400	-	-	-	0.050	0.050	235	400
JIS G3101	SS490	-	-	-	0.050	0.050	275	490
API 5L PSL1	A	0.22	0.90	-	0.030	0.030	210	335
	B	0.26	1.20	-	0.030	0.030	245	415
	X42	0.26	1.30	-	0.030	0.030	290	415
	X46	0.26	1.40	-	0.030	0.030	320	435
	X52	0.26	1.40	-	0.030	0.030	360	460
	X56	0.26	1.10	-	0.030	0.030	390	490
	X60	0.26	1.40	-	0.030	0.030	415	520
	X65	0.26	1.45	-	0.030	0.030	450	535
	X70	0.26	1.65	-	0.030	0.030	585	570
API 5L PSL2	B	0.22	1.20	-	0.025	0.015	245-450	415-760
	X42	0.22	1.30	-	0.025	0.015	290-495	415-760
	X46	0.22	1.40	-	0.025	0.015	320-525	435-760
	X52	0.22	1.40	-	0.025	0.015	360-530	460-760
	X56	0.22	1.40	-	0.025	0.015	390-545	490-760
	X60	0.22	1.40	-	0.025	0.015	415-565	520-760
	X65	0.22	1.45	-	0.025	0.015	450-600	535-760
	X70	0.22	1.65	-	0.025	0.015	483-621	565-758

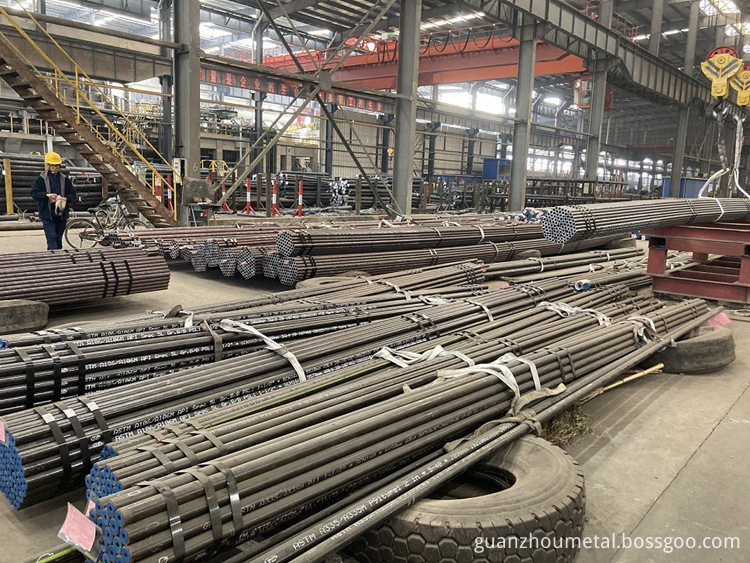

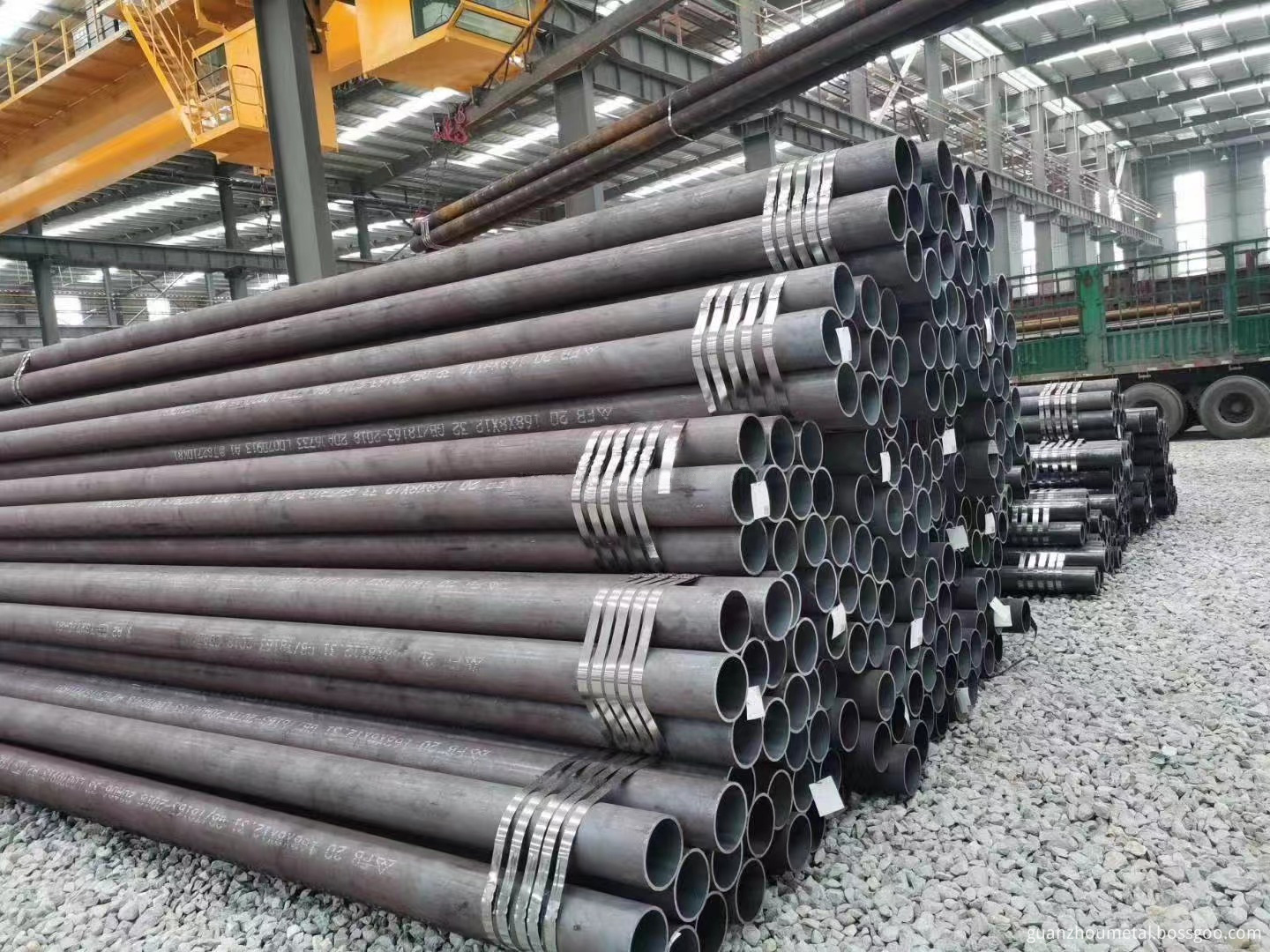

Product Display

We can produce different sizes, thicknesses, widths and materials according to your requirements

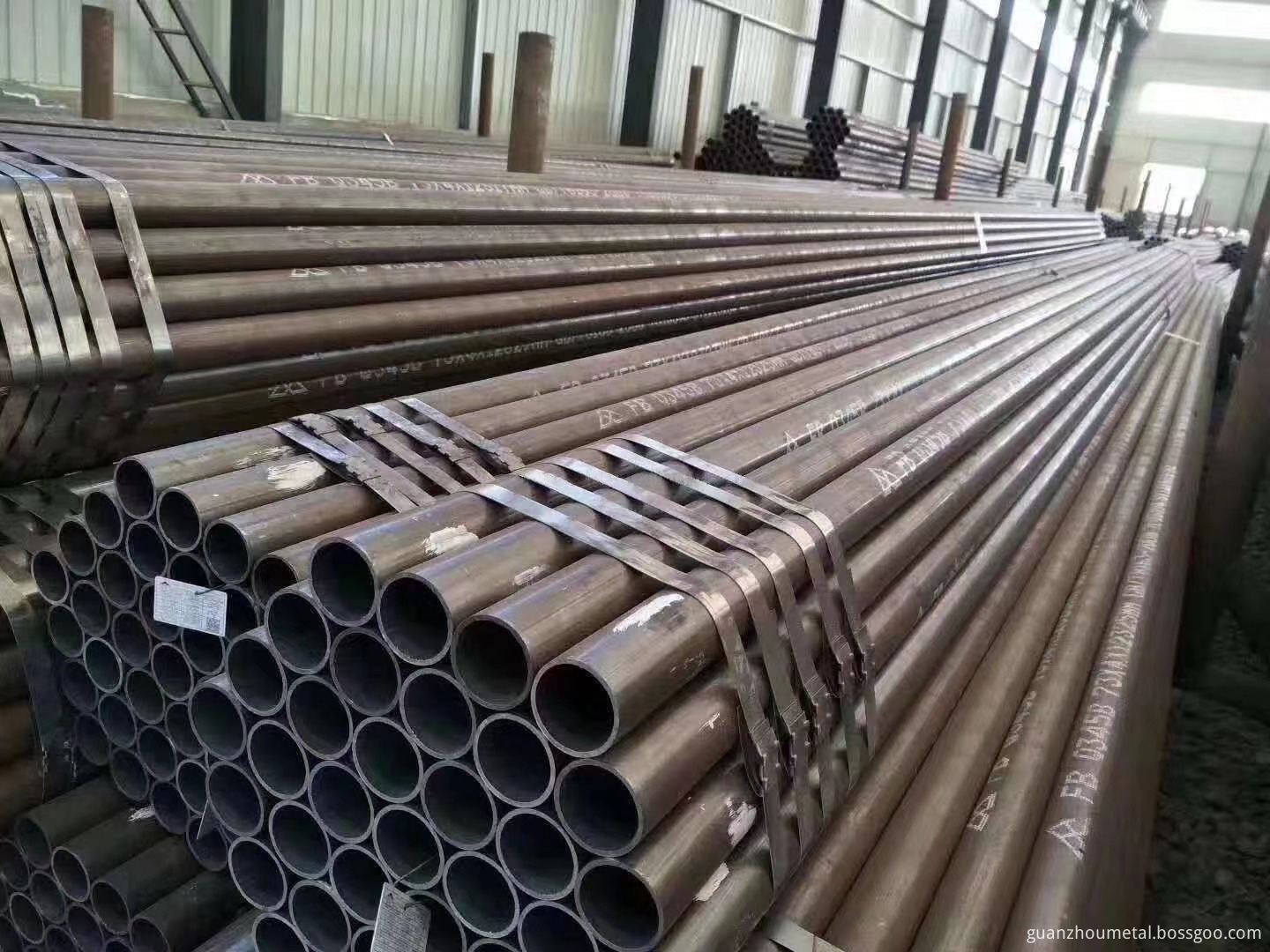

Seamless Steel Pipe Carbon Steel Pipe

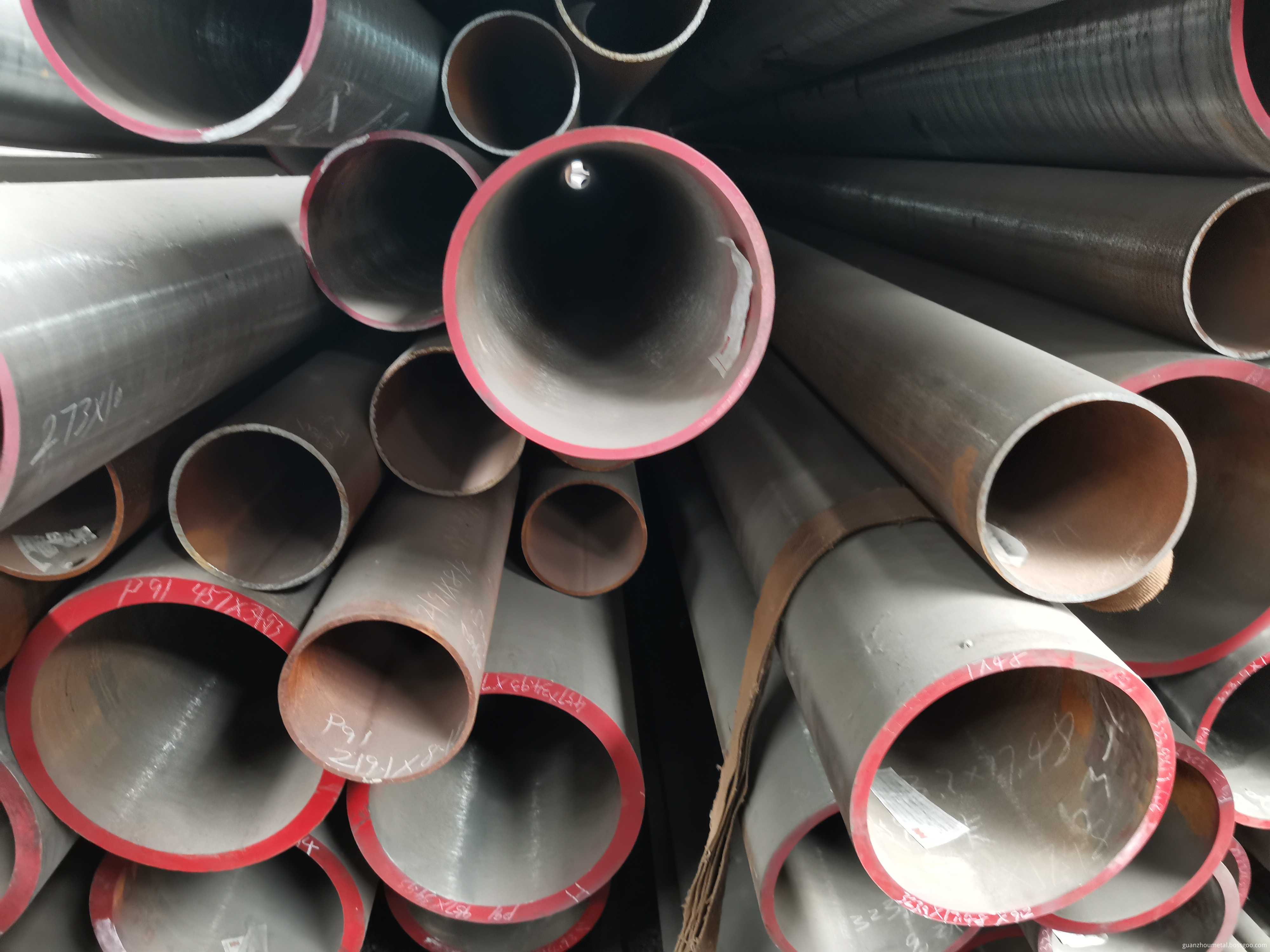

Hot Rolled Steel Pipe

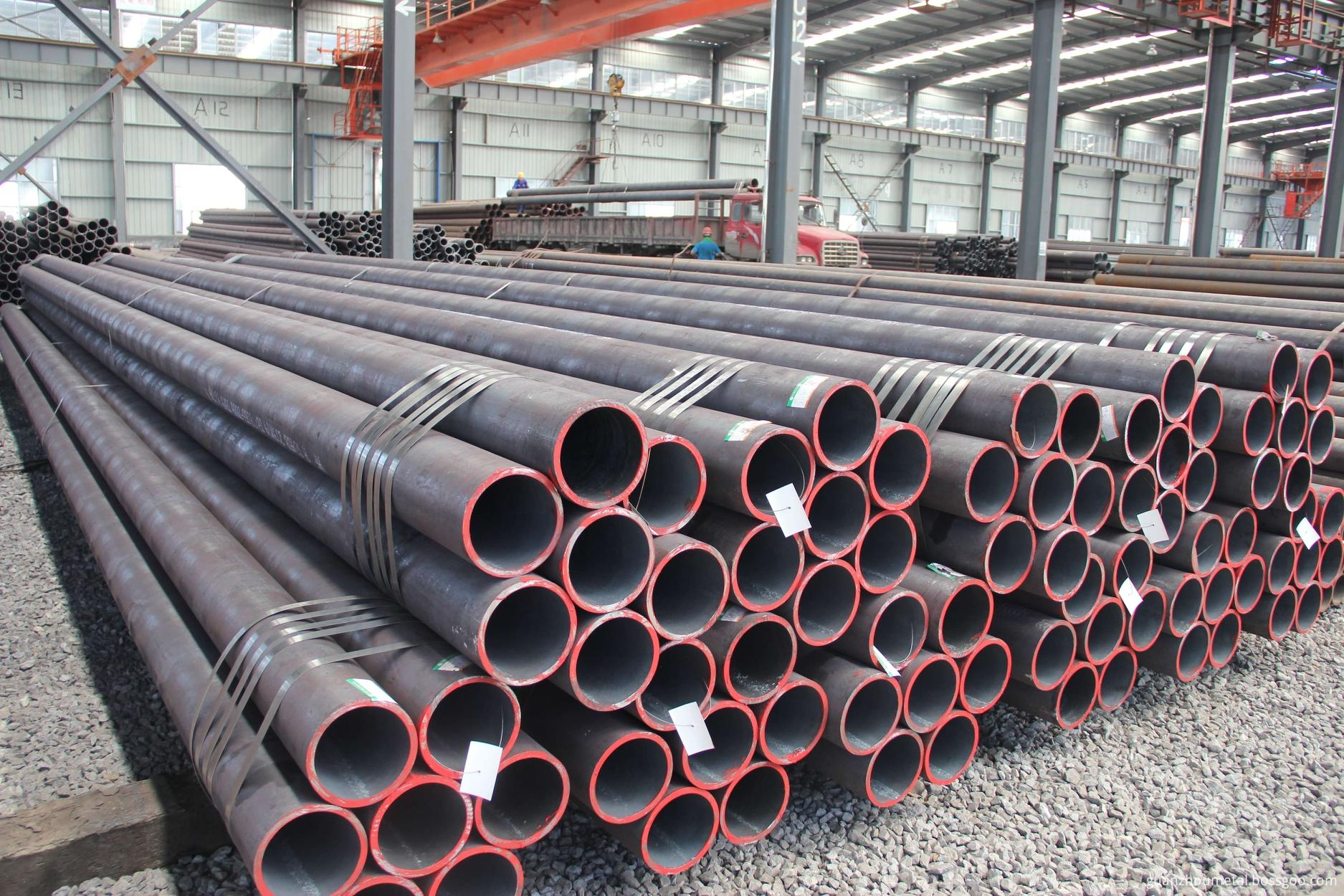

Carbon Steel Pipe Seamless Steel Pipe

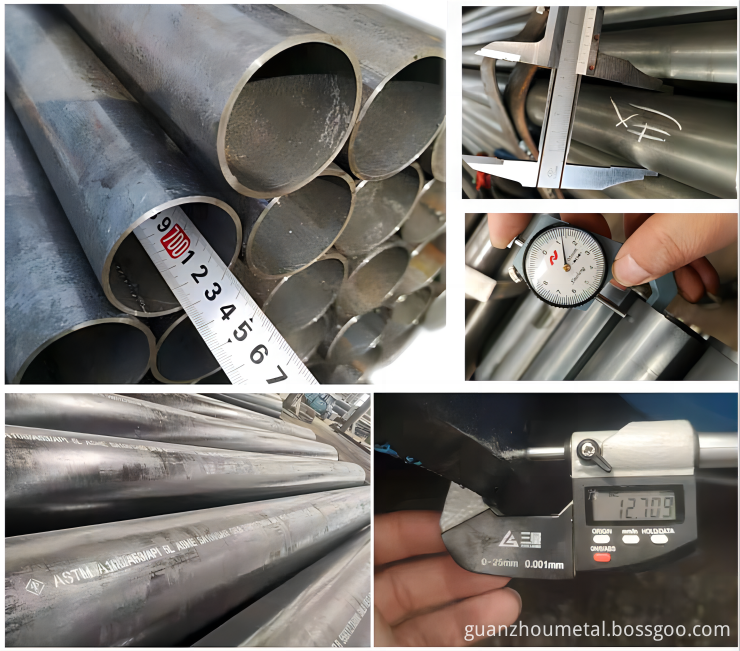

Test Before Delivery

We will control the quality from part of material steel pipe, each pipe produced will be have it is own identify label, quality will check the chemical component and physical property and then provide material test certificate. Size dimension will be checked and show pictures to customer to guarantee all goods will be meet requirement.

Accept inspection from a third party designated/paid by the buyer, such as SGS, BV.

Recognized by customers in Malaysia, Indonesia, Singapore, the Philippines, Australia, Peru and the United Kingdom. We have ISO9001/18001, CE certificates.

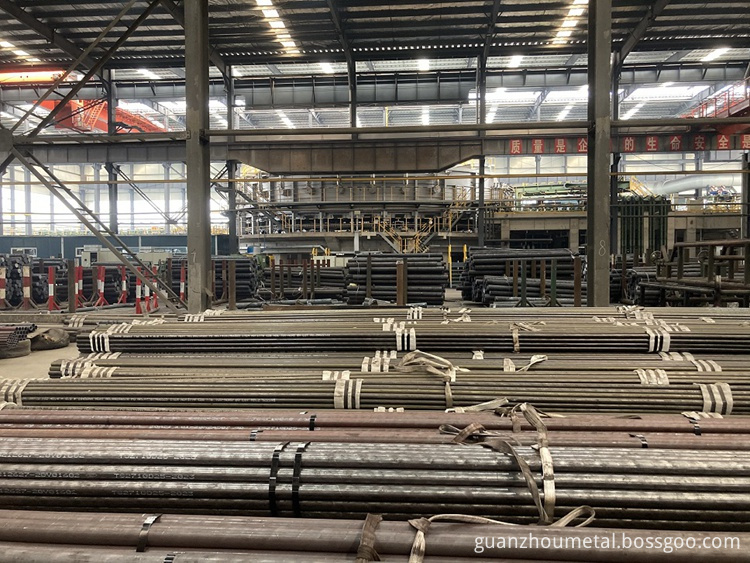

Company Profile

Our company is a steel supplier from China, located in Liaocheng City, one of the largest steel producers in China. The company integrates the manufacturing, wholesale, material processing and warehousing of stainless steel, aluminum, copper and carbon steel materials, and has established long-term and stable cooperative relations with many well-known steel plants, such as Tisco, Baosteel, Hongwang, Zhangpu, Liangzhong and Jiugang.

Mainly products cover carbon steel tubes, stainless steel tubes, galvanized steel coil, ppgi steel coil, stainless steel coil, carbon steel coil and carbon steel profiles, gi wire, hollow anchor bar, section steel, steel rebar etc. Our company is equipped with plasma cutting machine, coil flattening equipment, laser cutting machine, 8K mirror, frosted wire drawing, filming and titanium plating equipment, which can flatten, split, shear, oil mill wire drawing, and roll oil film wire drawing on stainless steel materials, 8K mirror, titanium and other processing.

In addition, the company's characteristic business: zero-cutting, rounding, square cutting, special-shaped cutting, castings, forgings, product thicknesses up to 150mm, various special materials and specifications can be customized to steel mills.

Companies adhering to the "efficient, win-win" business philosophy, continue to provide customers with professional, quality products and value-added services, continuous progress and learning to meet customer needs. Now the company has entered the period of rapid development of global trade, looking forward to more cooperation.

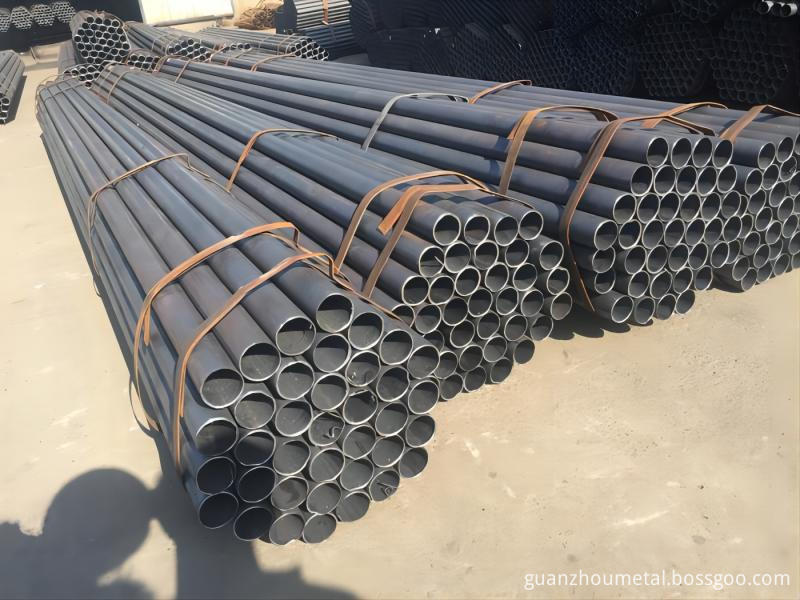

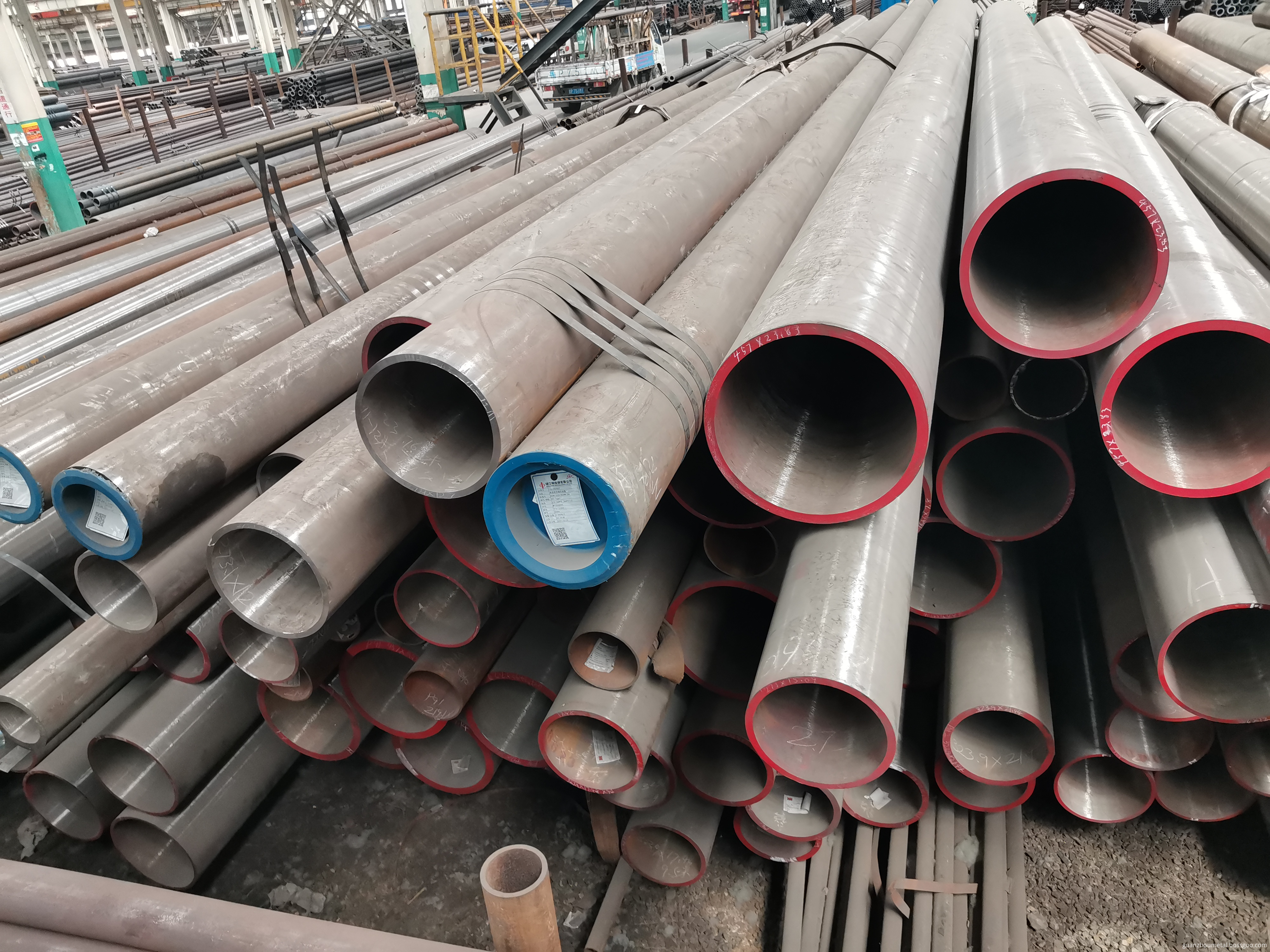

Carbon Seamless Steel Pipe

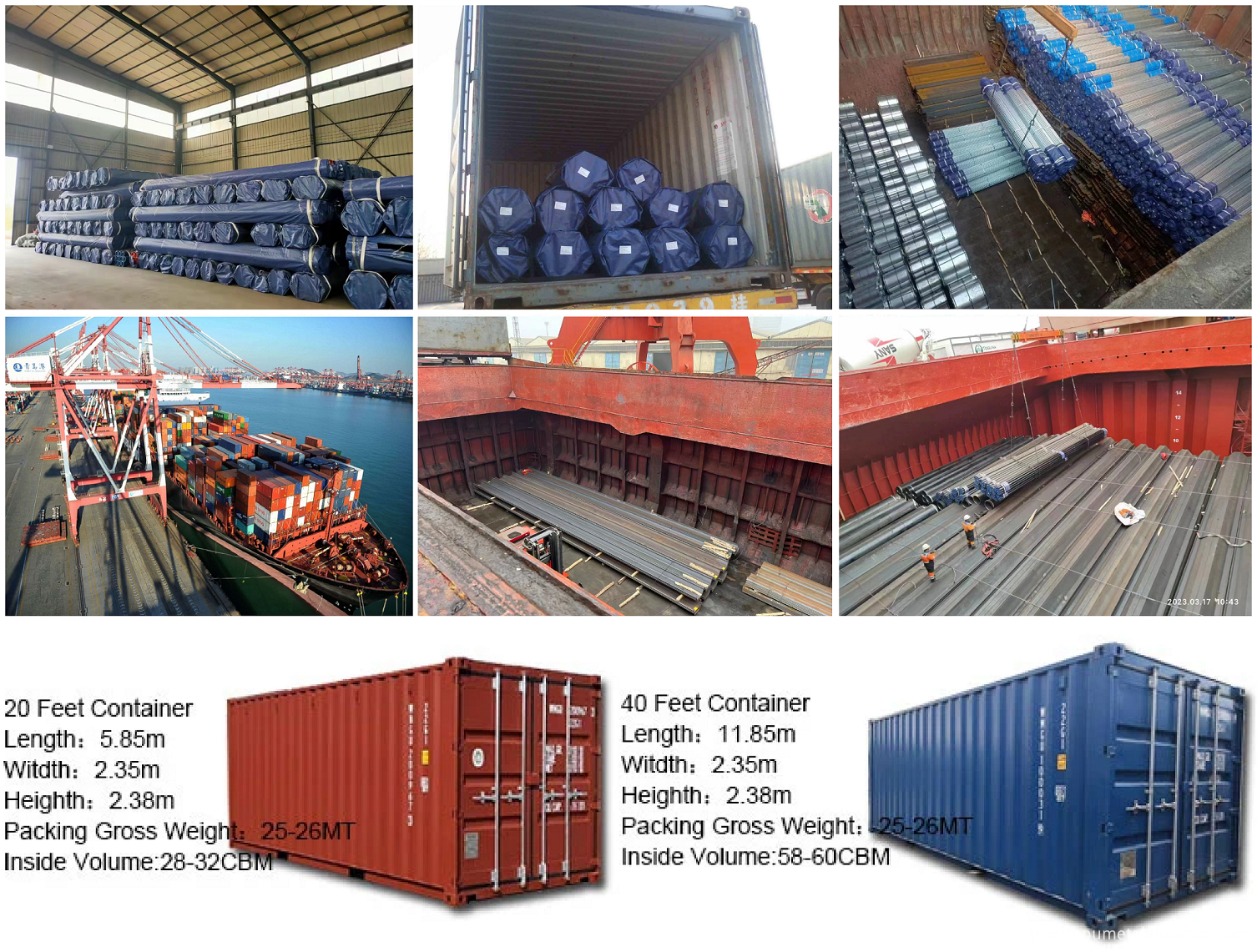

Packaging And Transportation

1) Packaging: 3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve or as customers' requirements.

2) Shipping: We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.

3) Trade terms: FOB/CIF/CFR

4) Shipping port: Qingdao/Tianjin/Shanghai

5) Shipment: A: Length: ≤6m, loaded in 20GP Container. B: Length: ≤12m, loaded in 40GP Container.

Remark: Size of 20GP Container (inside :5898*2352*2393mm); Size of 40GP Container (inside:12032*2352*2393mm); Size of 40HQ Container (inside:12032*2352*2698mm).

6) Delivery time: Normal size: 7-15days send from warehouse directly. Special size:15-30days custom made for you.

If you are interested in our products, you can contact me at any time and look forward to our cooperation!
