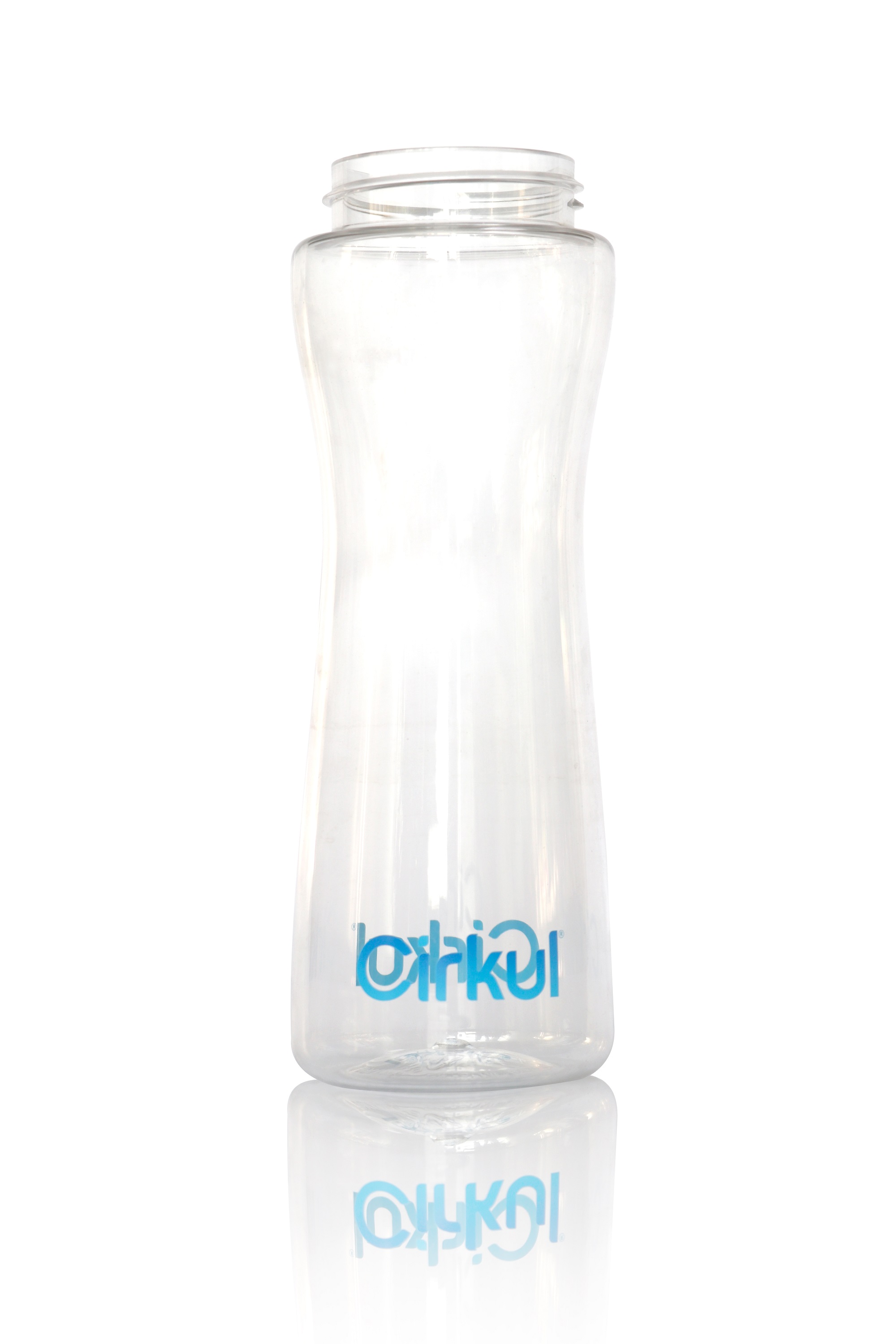

Plastic Drink Bottle Cups Silk Printing Machinery
This bottle screen printer is a new type of screen printing machine developed to achieve the concept of "simple and high efficiency". It is specially designed for printing round, oval, square plastic containers, regular glass bottles and other special products. You can freely choose from single color up to multi-color, and can be freely combined, the whole machine adopts mechanical synchronization design, with surface treatment, automatic alignment, no part no printing, screen printing, UV curing and other functions, to meet the current product printing process diversity, and optional automatic feeding system.
It has the advantages of high degree of automation, convenient use, high precision, high reliability, low price, easy operation and maintenance, etc. It is widely used in cosmetics industry, wine industry, home decoration industry, food industry and so on.
Technical Specifications:
The machine is free combination, several machines can be any combination of multi-color silk screen production line, multi-color silk screen production line can also be separated into a separate stand-alone, easy to use, reduce the user's equipment costs.
The round bottle screen printing machine can be installed as customer needs, equipped with a variety of automatic feeding system, such as vibration plate and rotary feeder etc.
This machine is equipped with a surface treatment system, which can effectively solve the surface treatment of various plastic products. It is easy to operate and meets different needs. Before printing plastic products, surface treatment is generally required to destroy the molecular structure of the surface and strengthen the adhesion of the printed pattern; there are two kinds of surface treatment processes, one is flame treatment, the other is corona treatment.
If the machine finds no product on the transfer, the printing system will not work when the jig comes to the printing position.
According to the different products, you can adjust the printing head stroke and the initial action angle of printing, so as to achieve the best printing effect.
Customers can choose different curing systems according to their own needs.
UV curing with mature technology, low lamp replacement cost and low maintenance cost.
Compared with traditional high-pressure mercury, LED curing has the characteristics of soft light output, long life, energy saving, safety and environmental protection, wide irradiation area, small space occupied, and uniform light spot, but it has the disadvantage of high maintenance and replacement cost.
Machine running speed
up to 85pcs/min(printing speed varies from bottles to bottles)
Product height
20-300mm
Round bottle diameter
20-120mm
Flat bottle radius
50-250mm
Flat bottle width
20-130mm
Maximum printing area
length 300* height 200mm
Gas supply
0.15mpa
Air pressure requires
6-7 BAR
Voltage requirement
3-phase 5-wire 380V 50/60Hz
Rated power
7KW X colors
Main machine size
Length 2900mm X Width 1200mm X Height 2000mm(Exclude loading and uploading convey belt)
Main machine weight
1200kg
Auxilary machine size
Length 1190mm X Width 1200mm X Height 2000mm
Auxilary machine weight
1000kg
Machine Features
Modular Machine System
Automatic Feeding System
Surface Treatment System
No Part No Print System and Adjustable Printing Head System
UV Curing system / LED Curing system
