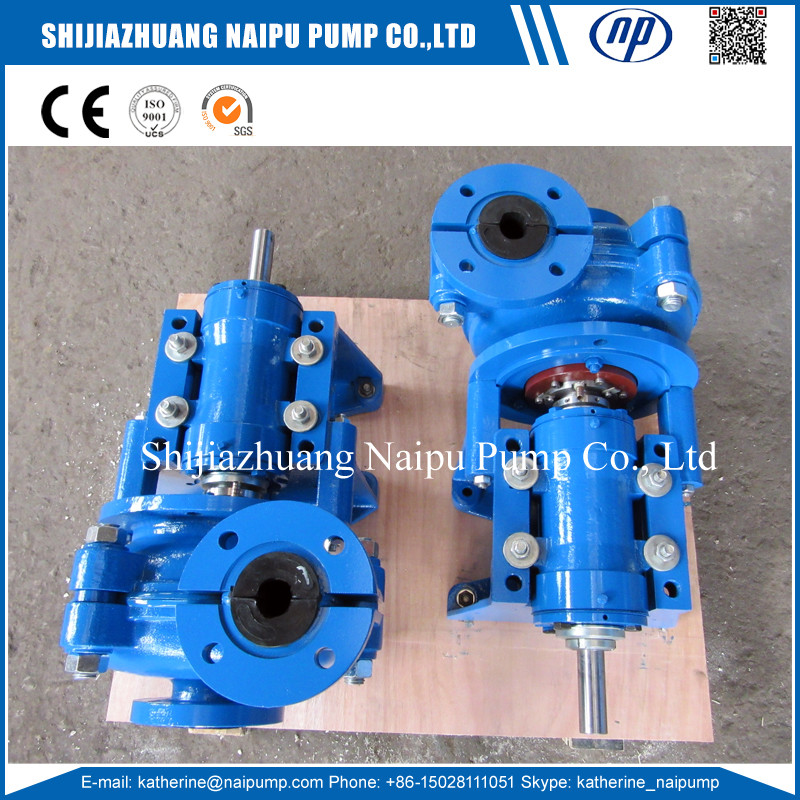

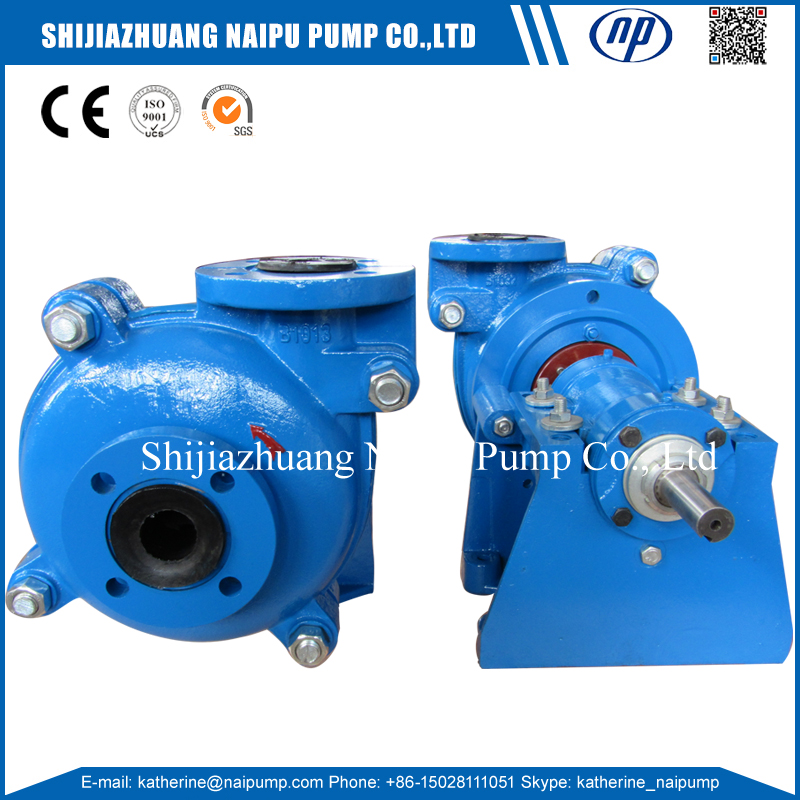

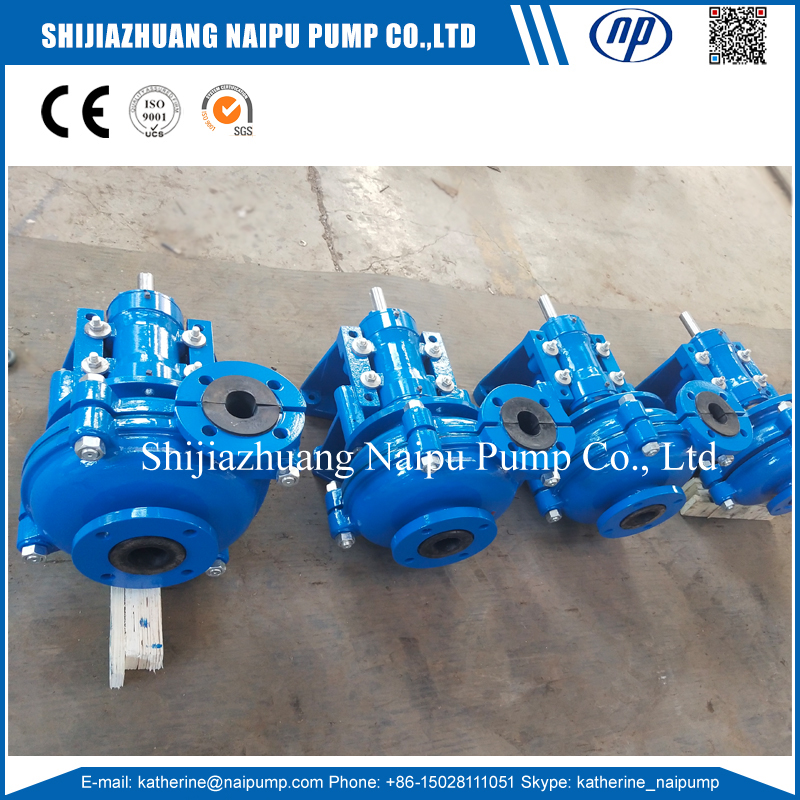

1.5/1B-NP horizontal slurry pumps, 3/2c slurry pumps,3/2c-slurry pumps,6/4d-ah slurry pumps,6/4e-ah slurry pumps,8/6e slurry pumps, 8/6f slurry pumps,10/8st slurry pumps,10/8f slurry pumps,12/10f slurry pumps,14/12st slurry pumps, 16/14tu-ah horizontal slurry pumps, Shijiazhuang Naipu Pump Co.,ltd produce many types of horizontal slurry pumps and vertical slurry pumps.
Our slurry pumps have rubber wet end parts and metal wet end parts, Our rubber wet end parts including R55 Natural rubber,R08 natural rubber, R26 natural rubber and S31 hypalon rubber slurry pumps and S42 Neoprene rubber . Horizontal slurry pumps, horizontal pumps, centrifugal pumps, centrifugal slurry pumps, mining pumps, horizontal mining pumps
R55 natural rubber slurry pumps have R55 natural rubber wet end parts.
Concepts of material selection for Natural rubber and elastomers.
Selecting the type of material to be used for slurry pumping application is not a predise procedure.The procedure must account for all of the variable characteristics of the particular slurry and take into account the constraints imposed by the following:
1)Type of the pump
2)pump speed
3) options within the range of teh models available. The basic date required to make a selection of the type of material:
The particle sizing of the solids to be pumped.
2) the shape and hardness of these solids and
3)the corrosive properties of teh liquid transport component of the slurry to be pumped.
The material selection for the pump liners and impellers is made from two basic types of material
Elastomers and
wear/erosion resistant cast alloys.
ELASTOMERS
The criterial for selection of the three more commonly used elastomers are
Natural rubber、R55 Natural Rubber Slurry Pumps
Excellent erosion resistance for liners(against solids up to 1/2 inch size) but limited to particles of 1/4 inch size for impellers.
May not be suitable for very sharp edged solids
May be damaged by oversized solids or tramp.
Impeller peripheral speed should be less than 5400ft/min. to avoid the thermal breakdowun of the liner adjacent to the outer edge of the impeller.(Special formulation are available to allow speeds up to 5900ft/min. In certain cases)
Unsuitable for oils solvents or strong acids
Unsuitable for temperature in excess of 170℉。
S42 Neopren Rubber Spare Parts including S42 rubber impellers, S42 Ruber liners( cover plate liners,frame plate liners),throat bushing,etc.
S31 Hypalon Rubber Spare Parts Pumps including S31 rubber impellers,,S42 rubber liner(cover plate liners, frame plate liner),throat bushing,etc.
Besides Rubber slurry pumps、R55 Natural Rubber Slurry Pumps we also produce high chrome slurry pumps:
