Product details

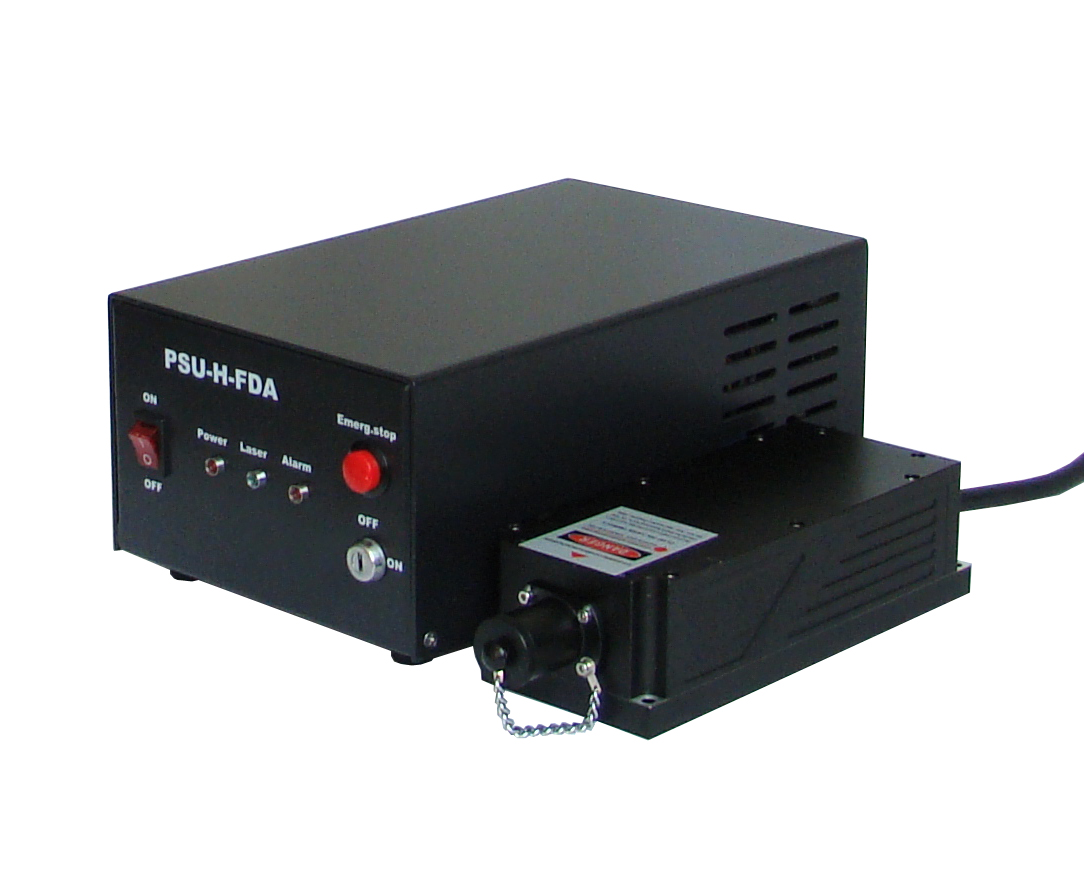

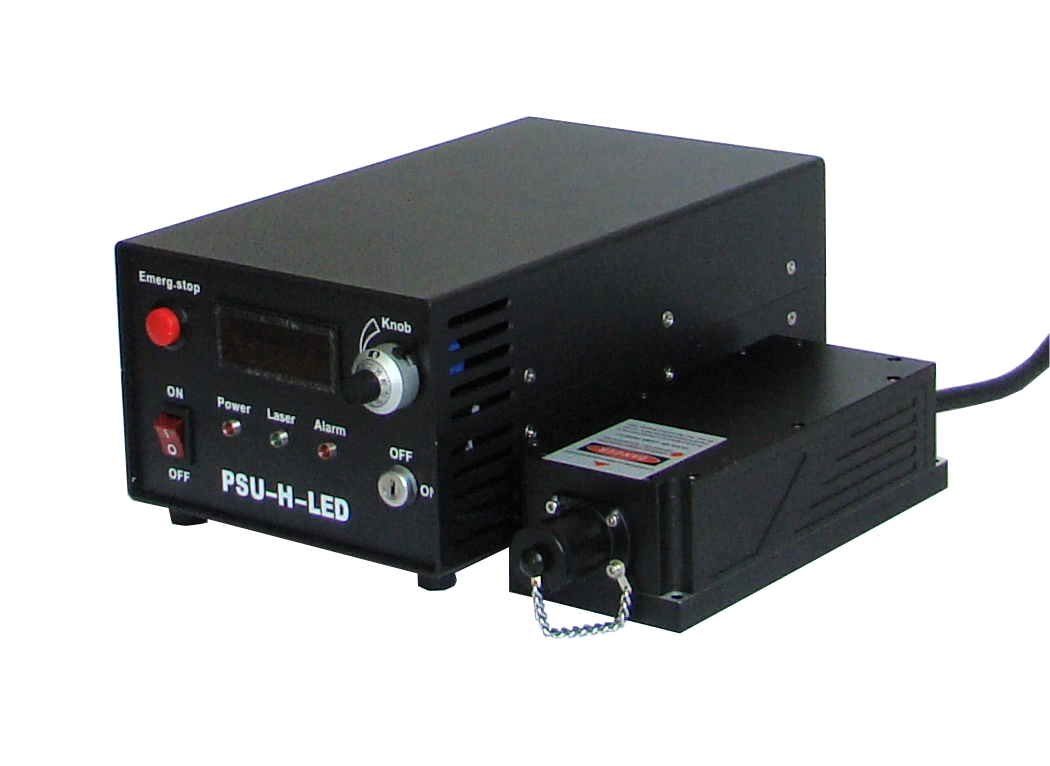

  CNI provide the blue laser, violet blue laser, green laser, yellow laser, red laser and infrared laser.. Linear prisms, fiber coupling, beam expander and other accessories can be attached. Infrared lasers include DPSS (diode-pumped solid-state) laser and diode laser. The laser head comes with cooling and precise temperature control system, and power supply comes with overcurrent and overheating protection function. CNI lasers have stabilized power, easy operation, reliable performance and long lifetime. The laser products include 5 series: high energy, high power, high stability, low noise and single longitudinal mode laser. Free space or fiber-coupled (SM fiber, MM fiber, homogenization fiber) output available.

111Features:

  • Transverse mode: TEM00
  • M²: <1.1
  • Power stability (RMS@4h,23±3℃): <0.1%, 0.3%, 0.5%, 1%.
  • Pointing stability (2h,23±3℃): <0.05 mrad
  • Output power adjustable, LCD
  • Control method: TTL modulation, analog modulation, RS232
     interface control

111Application:11111111111111111111111111111

  • Medical diagnosis, confocal microscopy
  • Optical instrument, scientific research
  • Testing and control, direction-finding and instruction
  • Laser printer, laser show
  •  Chip inspection, Ion velocity testing
  • Spectrum analysis, DNA sequency

Spectificatios

Wavelength

Output power

Power stability

Data sheets

760

1~5000 mW

<1%

785

1~3000 mW

<1%

793

1~100 W

<1%

800

1~10 W

<1%

808

1~200 W

<1%

825

1~5000 mW

<1%

830

1~5000 mW

<1%

Green laser

845

1-30 mW

<1%

Green laser

852

1~5000 mW

<1%

860

1~6000 W

<1%

880

1~500 W

<1%

885

1~50 W

<1%

905

1~400 mW

<1%

915

1~500 W

<1%

940

1~100 W

<1%

975

1~150 W

<1%

980 1~150 W <1%
1060 1~300 W <1%
1120 1~5 W <1%
1208 1~30 W <1%
1310 1~5 W <1%
1450 1~10 W <1%
1470 1~50 W <3%
1532 1~30 W <1%
1550 1~30 W <1%
1700 1~3000 mW <1%
1850 1~1000 mW <1%
1870 1~80 W <1%
1900 1~60 W <1%
1920 1~80 W <1%
2160 1~500 mW <1%
2200 1~500 mW <1%

High Stability Diode Laser Sorce    High Stability CW Laser
