Product details

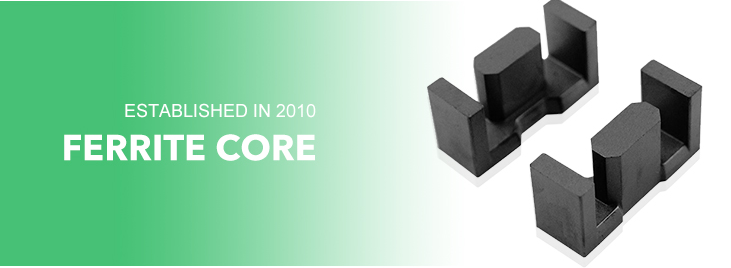

Ferrite Core

Ferrite soft magnetic material is a material that is easy to magnetize and demagnetize under a weak magnetic field. Mainly include zinc-chromium ferrite and nickel-zinc ferrite. It is a ferrite material with wide uses, many varieties, large quantities and high output value.

It is mainly used to make various inductive components, such as filter cores, transformer cores, radio cores, and tape recording and video heads. It is also a key material for magnetic recording components.

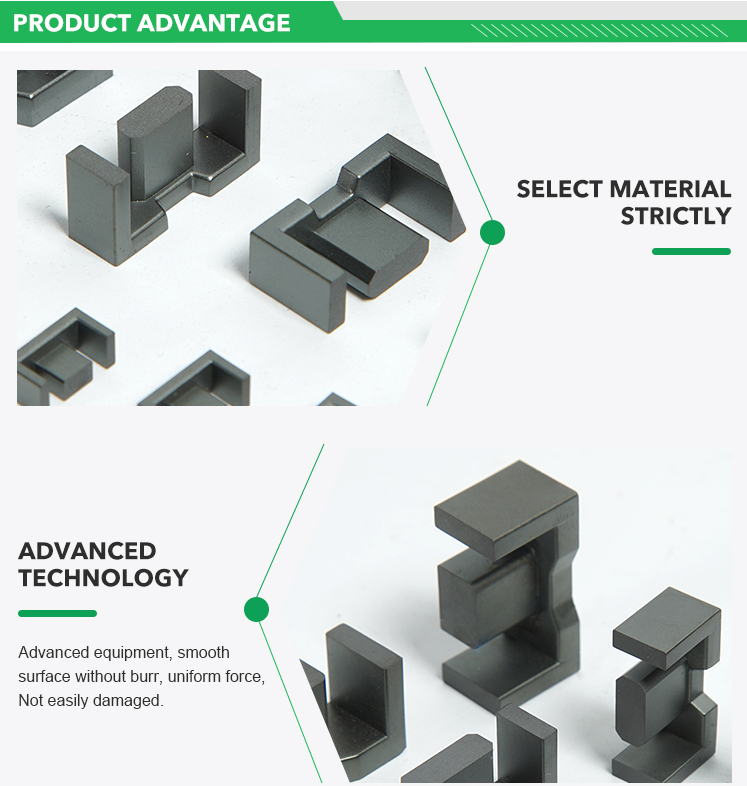

Good characteristic

Ferrite soft magnet is an important magnetic material with superior magnetic and electromagnetic properties. It is a magnetic material with high magnetic permeability, low hysteresis, low loss, high saturation magnetic induction intensity and high temperature stability.

Widely Application areas

Ferrite soft magnets are widely used in electronic communications, electric vehicles and other fields.Used to make various components。With the development of science and technology, the application prospects will become broader.

Ferrite Core

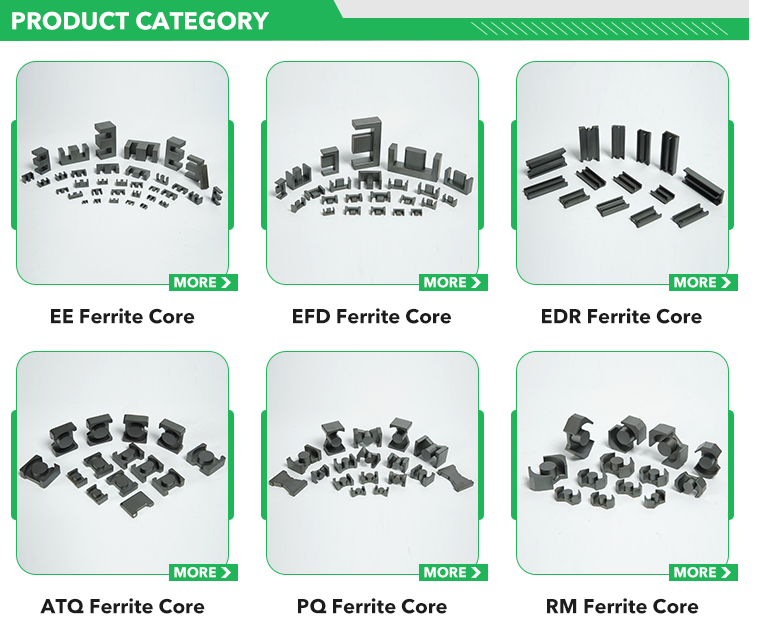

EFD CORES

Ferrite Core

Type	Dimensions(mm)								Weight (g/set)
Type	A	B	C1	C2	D	E	F	B-F	Weight (g/set)
EFD21	21.5±0.5	10.5±0.25	6.7±0.3	3.6±0.2	16.8min	8.8±0.25	8.0±0.25	2.5±0.3	7

Type	Parameters				A_L-value(1±25%)/(nH/N²)
	Parameters				1kHz,0.25V,10Ts,25±3℃
	C₁(mm-1)	L_e(mm)	A_e(mm²)	_V_e(mm³)	KY30	KY301	KY302	KY303	KY404
EFD21	1.75	50.03	28.62	1432	1150	1150	1200	1200	1600

Ferrite Core
