1. Work principle of high shear mixer granulator

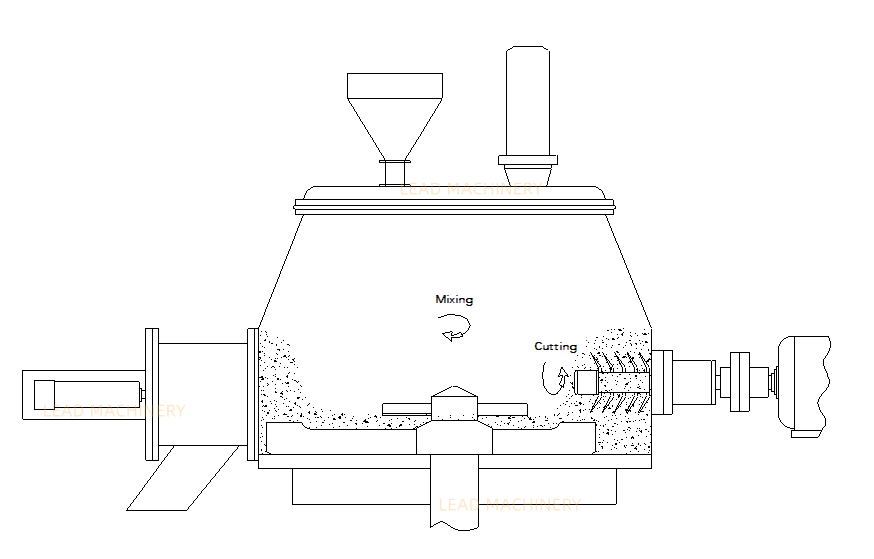

High shear mixer granulator is a process machine widely applied for solid preparation production in the pharmaceutical industry. It has such functions as mixing, granulating, etc. It has been widely used in such industries as medicine, food, chemical industry, etc.
2. Application of high shear mixer granulator

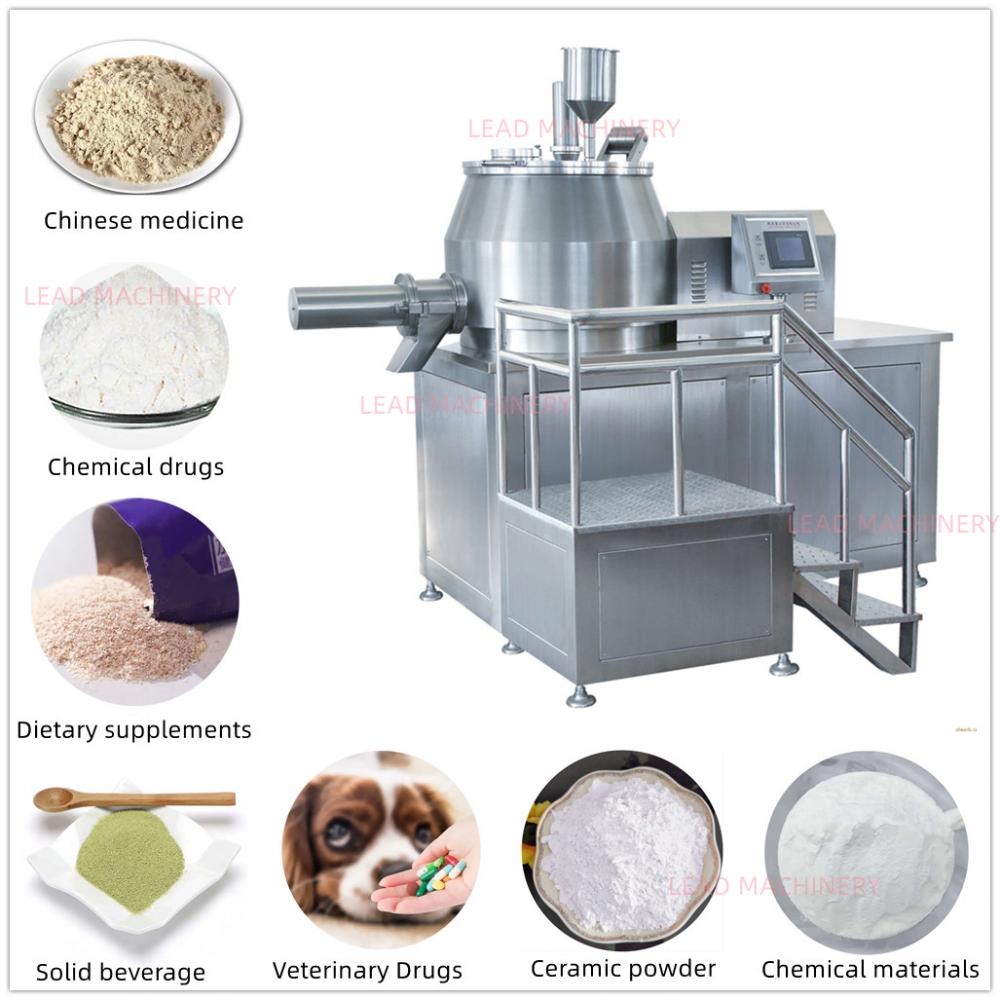

High shear mixer granulator is widely used in the process of material mixing and granulation in pharmaceutical, food, chemical, pesticide and other industries. The granules are conducive to tablet pressing and capsule filling.

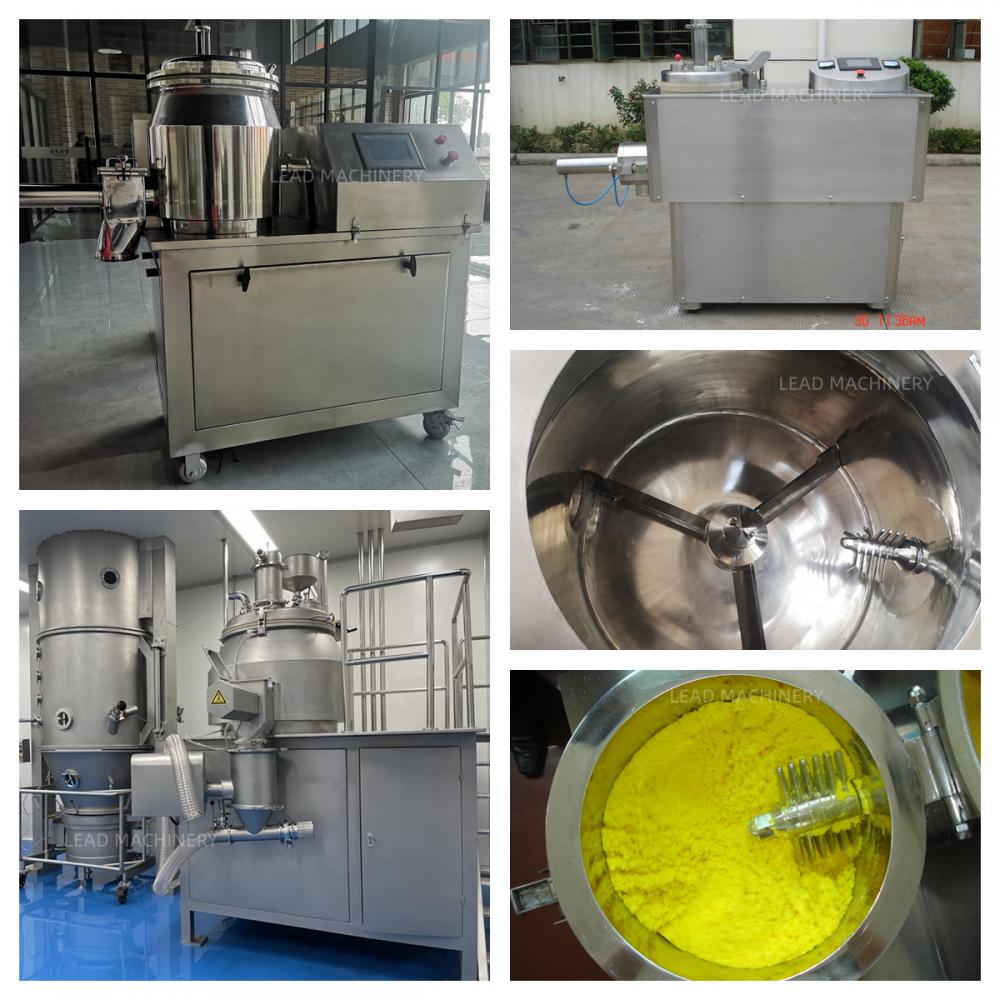

3. Main structure of high shear mixer granulator
3.1. Equipment composition of high shear mixer granulator

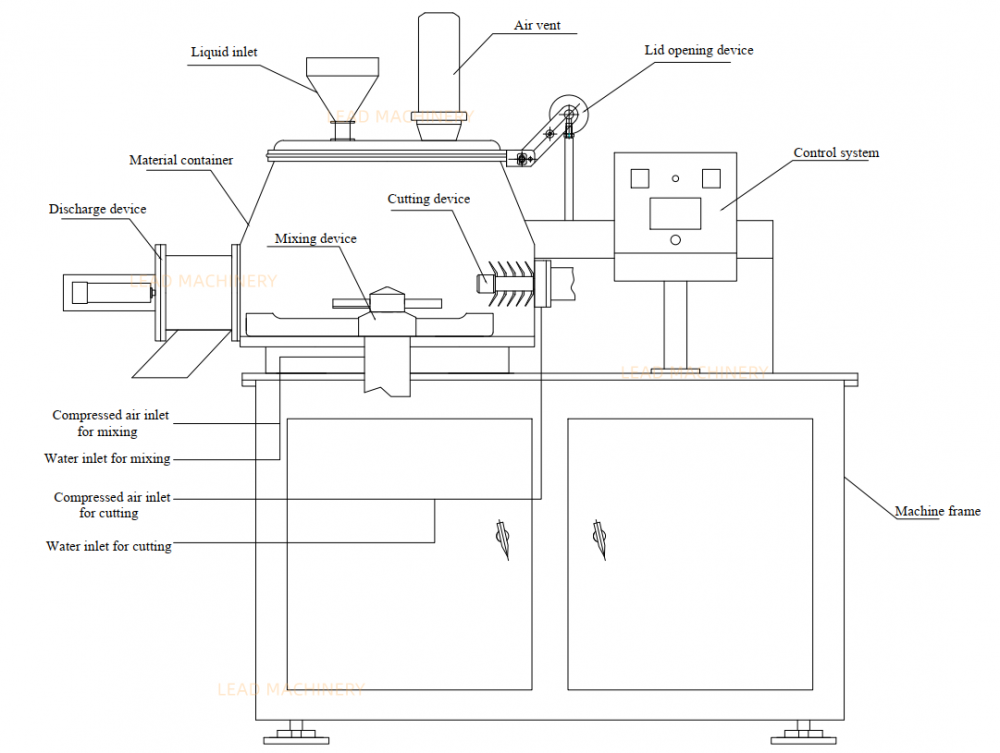

This machine is mainly composed of a machine frame, a container with a cover, a mixing system, a cutting system, a discharging device, a control system, a water and gas system, etc.
3.2. Machine frame of high shear mixer granulator
It is welded by section steel, and the frame is covered with stainless steel plate. The chassis frame is divided into upper and lower parts. The bottom is equipped with adjustable support feet and shock absorption sizing blocks. The upper frame supports the container with cover, mixing system, cutting system, and discharge device. The lower frame mainly carries the reducer, motor, and transmission system. The electrical control main board is placed in the lower frame. The frame material is Q235-A. The three sides are equipped with a protective cover plate, and the other side is equipped with a movable door made of a protective cover plate. The material is SUS304.
3.3. Container with cover of high shear mixer granulator
The container is an inverted cone, the bottom center is equipped with an agitator, the side is equipped with a granulating cutter, and the upper part is equipped with a quick opening cover; The quick opening cover is composed of a cover, a cover opening fixed arm, a cover opening rotating arm, an air cylinder, etc. The cover is provided with a feeding port, a sight glass, and an air vent. Material of container is SUS304 or SUS316L.
3.4. Mixing system of high shear mixer granulator

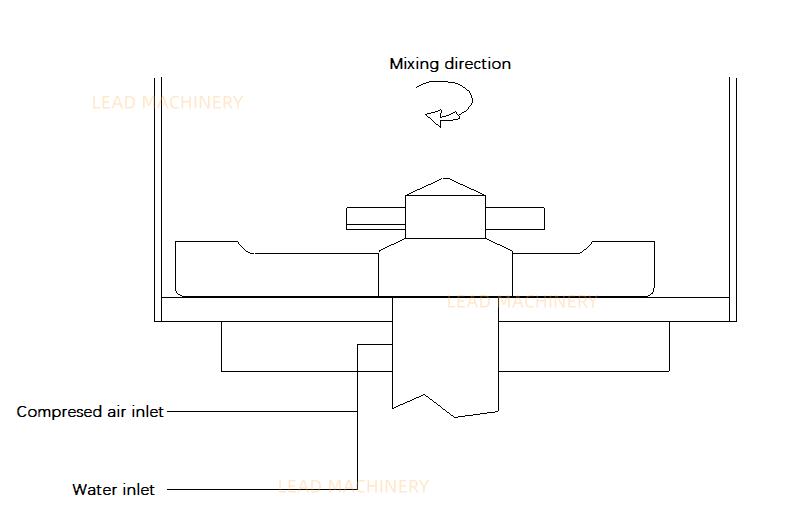

Mixing system: it is composed of motor, reducer, transmission shaft, mixing blades, compressed gas seal device and a rotary air gap seal. The material is 45# steel and SUS304. (Or SUS316L)
3.5. Cutting device of high shear mixer granulator

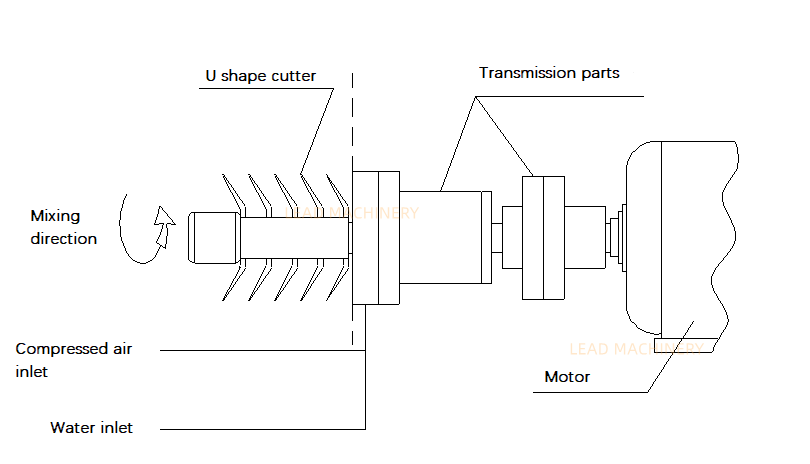

It consists of motor, transmission parts, multiple U-shaped cutters, and air sealing components, etc.
3.6. Discharging system of high shear mixer granulator

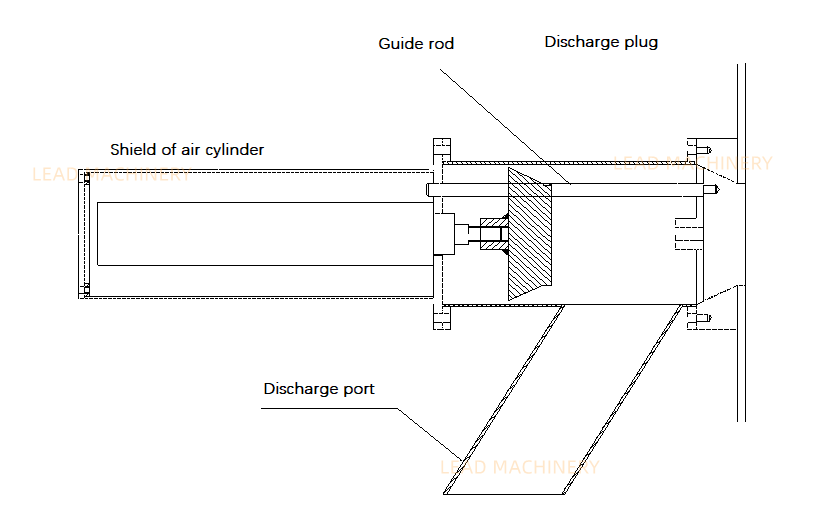

It consists of discharge seat, discharge plug, discharge port, guide rod and air cylinder, etc.
3.7. Control system of high shear mixer granulator
It consists of PLC, touch screen, inverter, electrical components, pneumatic components.
4. Features of high shear mixer granulator
It adopts Siemens PLC micro-computer control, human machine interface and touch screen to display the operations. The temperature, operating time, speed and formula are input to micro-computer and auto-controlled according to procedures, easy to operate with high automatic degree.
Add a set of V shape cutters on the basis of traditional straight shank cutter so that the cutters can action in both horizontal and vertical directions in material cutting process, which can reduce the granulating time. Cooperating with the unique mixing paddle of this machine, it's helpful to scrape away the attachment inner container to reduce the material sedimentation around container in-wall & at bottom and the collision to in-wall, at the same time, improve granulating efficiency and pelletized ratio, reduce the fine powder content below 8%. It adopts jacketed pot technique, which can heat or cool the material as required. The temperature in tank can be regulated by micro-computer automatically with temperature departure less than ±20C.
Provide the dripping device together with this machine. The adhesive addition can adopt dripping or direct mixing ways according to different requirements for different medicines, which can save around 20% consumption of adhesive, good effect of mixing granulation.
The safety protection device is complete and reliable. When the pot cover is under opening status, the main machine can only be started to operate by password and can't be started by other people so that ensure the safety of operators and machine. It can reserve vacuum feeding port at the part of pot cover, at the same time, equip with dedusting unit and adhesive filling port. We can monitor the granulating status in different stages through the sight glass to realize the non-dust operation in granulating process.
The cutter and revolving shaft of mixing paddle adopt double composite technology of rubber gasket with oil and spiral with air to seal, which completely solve the big problem of shaft seal easy to fail. The shaft seal is made into pulling type and can be dismounted, easy to maintain.
The mixing and granulating can be finished with one step, increasing the efficiency 4-5 times. The finished granules are solid with uniform size and high pelletized ratio. The granule size and bulk density can be adjusted optionally, suitable for the mixing granulation of Chinese herbal powders with big difference between chief herb and ingredients, Chinese medical extract, achieving good result.
5. Parameters of high shear mixer granulator
Consumption of compressed
air (m3/min)
Pressure of compressed air
(Mpa)
Model
GHL-10
GHL-50
GHL-100
GHL-150
GHL-200
GHL-300
GHL-400
GHL-500
GHL-600
GHL-800
Capacity (kg/batch)
3
15
30
50
70
100
130
160
200
270
Mixing power (kW)
1.1
5.5
11
15
22
22
30
30
30
45
Mixing speed (rpm)
0~200
Cutting power (kW)
0.75
3
4
5.5
5.5
7.5
7.5
11
11
15
Cutting speed (rpm)
0~3000
0.2
0.4
0.4
0.6
0.6
0.9
0.9
1.0
1.2
1.5
0.6
Size of output granules (mesh)
20~80
Working time (min/ batch)
5~10
Weight (kg)
300
800
1000
1300
1600
2000
2100
2200
2700
3200
